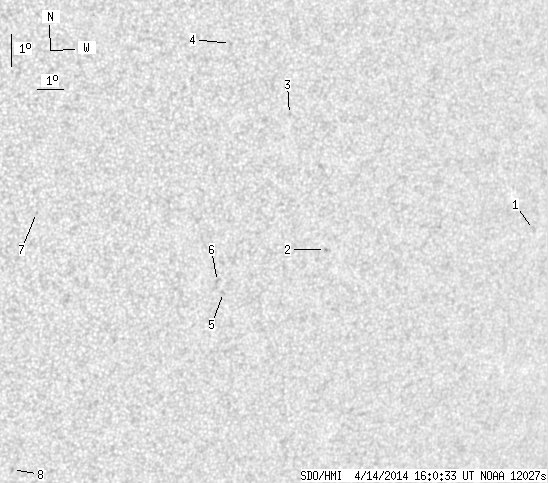

SDO HMI 2014-04-14 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.53 | 0.00 | 8.34 | -15.34 | 298.81 | 35.23 | 250.99 | 0.5898 | -561.4 | -383.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.47 | 0.00 | 1.76 | -14.26 | 309.29 | 45.70 | 255.56 | 0.7186 | 85.0 | 153.1 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -15.41 | 300.88 | 37.29 | 252.09 | 0.6161 | -737.0 | -633.6 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -11.41 | 298.80 | 35.21 | 258.22 | 0.5796 | -557.0 | -471.3 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -9.39 | 296.37 | 32.79 | 261.42 | 0.5424 | -673.0 | -536.9 | |
| 0.00 | 1.86 | 0.00 | 1.12 | -16.92 | 297.26 | 33.68 | 248.28 | 0.5732 | -657.0 | -522.9 | |
| 0.00 | 2.30 | 0.00 | 1.38 | -16.60 | 296.97 | 33.38 | 248.71 | 0.5681 | -833.0 | -572.2 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -14.81 | 290.15 | 26.56 | 248.63 | 0.4661 | -549.0 | -480.6 | |
| 0.00 | 1.68 | 0.00 | 0.97 | -22.75 | 290.65 | 27.06 | 234.07 | 0.5202 | -570.0 | -441.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
