SDO HMI 2014-04-14 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.07 | 591.69 | 86.41 | 394.34 | -16.61 | 221.89 | -41.15 | 108.71 | 0.6657 | 222.8 | 40.3 | |
|
previous
or next observation for the same group /

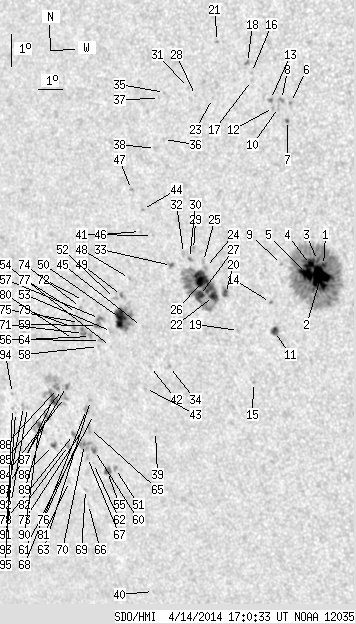

back to the solar disc SDO HMI 2014-04-14 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 256.86 | 0.87 | 159.78 | -15.64 | 226.92 | -36.11 | 108.66 | 0.6013 | 1320.9 | 358.5 | |
| 26.42 | -1.00 | 16.40 | -1.00 | -15.99 | 226.73 | -36.31 | 109.17 | 0.6048 | 1339.6 | 999999 | |
| 2.47 | -1.00 | 1.53 | -1.00 | -15.47 | 226.72 | -36.31 | 108.32 | 0.6034 | 950.4 | 999999 | |
| 7.25 | -1.00 | 4.51 | -1.00 | -15.58 | 226.43 | -36.61 | 108.40 | 0.6076 | 1006.3 | 999999 | |
| 10.60 | -1.00 | 6.62 | -1.00 | -15.84 | 226.22 | -36.82 | 108.76 | 0.6111 | 973.0 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -10.64 | 226.52 | -36.51 | 100.28 | 0.5965 | 845.0 | 700.5 | |
| 0.53 | 1.50 | 0.33 | 0.93 | -11.18 | 226.33 | -36.71 | 101.14 | 0.5999 | 804.2 | 699.7 | |
| 0.00 | 2.12 | 0.00 | 1.31 | -10.53 | 226.19 | -36.84 | 100.05 | 0.6009 | 854.0 | 723.1 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -15.51 | 225.31 | -37.73 | 107.96 | 0.6221 | 626.0 | 507.9 | |
| 0.00 | 2.30 | 0.00 | 1.42 | -10.77 | 226.05 | -36.99 | 100.42 | 0.6032 | 642.0 | 654.6 | |
| 3.53 | 5.66 | 2.27 | 3.63 | -17.53 | 224.55 | -38.49 | 110.87 | 0.6374 | -766.6 | -545.0 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -10.76 | 225.85 | -37.18 | 100.37 | 0.6058 | 586.0 | 522.3 | |
| 0.35 | 2.21 | 0.22 | 1.37 | -10.51 | 225.77 | -37.26 | 99.95 | 0.6066 | 818.5 | 627.6 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -16.64 | 224.61 | -38.43 | 109.51 | 0.6341 | 695.0 | 548.5 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -19.04 | 223.28 | -39.75 | 112.71 | 0.6576 | 865.0 | 781.9 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -9.65 | 225.16 | -37.88 | 98.48 | 0.6142 | 674.0 | 539.1 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -9.89 | 225.13 | -37.91 | 98.87 | 0.6149 | 563.0 | 410.8 | |
| 0.00 | 2.39 | 0.00 | 1.50 | -9.34 | 225.05 | -37.99 | 97.97 | 0.6155 | 832.0 | 676.9 | |
| 0.00 | 1.86 | 0.00 | 1.21 | -17.41 | 223.11 | -39.92 | 110.24 | 0.6549 | 588.0 | 483.7 | |
| 2.21 | 4.24 | 1.44 | 2.77 | -16.25 | 222.88 | -40.16 | 108.43 | 0.6549 | 908.7 | 768.1 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -8.64 | 223.96 | -39.07 | 96.77 | 0.6298 | 632.0 | 583.7 | |
| 6.36 | 91.28 | 4.19 | 60.51 | -16.31 | 222.37 | -40.67 | 108.38 | 0.6614 | 918.9 | 87.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -10.34 | 223.53 | -39.51 | 99.43 | 0.6367 | 618.0 | 529.0 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -15.41 | 222.26 | -40.78 | 107.01 | 0.6608 | 819.0 | 642.3 | |
| 0.00 | 1.77 | 0.00 | 1.16 | -15.23 | 222.22 | -40.82 | 106.72 | 0.6609 | 717.0 | 561.7 | |
| 25.27 | -22.00 | 16.70 | -22.00 | -15.83 | 222.03 | -41.01 | 107.58 | 0.6645 | 896.1 | 999999 | |
| 6.63 | -22.00 | 4.40 | -22.00 | -16.25 | 221.80 | -41.24 | 108.14 | 0.6683 | 559.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -10.21 | 222.87 | -40.16 | 99.16 | 0.6452 | 543.0 | 566.7 | |
| 0.00 | 3.09 | 0.00 | 2.04 | -14.84 | 221.90 | -41.14 | 106.07 | 0.6641 | 793.0 | 605.9 | |
| 0.35 | 2.12 | 0.23 | 1.41 | -15.10 | 221.67 | -41.37 | 106.41 | 0.6675 | 686.5 | 633.7 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -9.95 | 222.63 | -40.41 | 98.74 | 0.6482 | 448.0 | 371.5 | |
| 0.00 | 2.21 | 0.00 | 1.47 | -14.93 | 221.46 | -41.58 | 106.12 | 0.6698 | 591.0 | 455.4 | |
| 0.80 | 3.09 | 0.53 | 2.08 | -15.26 | 220.87 | -42.16 | 106.48 | 0.6776 | 592.7 | 383.3 | |
| 0.00 | 2.21 | 0.00 | 1.52 | -18.32 | 219.93 | -43.11 | 110.66 | 0.6956 | 637.0 | 500.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -10.04 | 221.65 | -41.39 | 98.79 | 0.6611 | 481.0 | 398.8 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -11.45 | 221.36 | -41.67 | 100.89 | 0.6659 | 553.0 | 381.2 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -10.21 | 221.41 | -41.62 | 99.03 | 0.6642 | 400.0 | 274.5 | |
| 0.00 | 2.30 | 0.00 | 1.53 | -11.70 | 220.99 | -42.05 | 101.22 | 0.6710 | 540.0 | 445.3 | |
| 0.00 | 1.59 | 0.00 | 1.12 | -20.27 | 218.65 | -44.39 | 113.02 | 0.7153 | 720.0 | 529.6 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -25.22 | 216.42 | -46.61 | 118.90 | 0.7532 | -474.0 | -392.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -14.31 | 220.30 | -42.73 | 104.97 | 0.6829 | 695.0 | 560.4 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -18.27 | 219.11 | -43.92 | 110.37 | 0.7050 | 404.0 | 355.8 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -18.93 | 218.67 | -44.36 | 111.17 | 0.7116 | 83.0 | 163.9 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -13.49 | 220.07 | -42.97 | 103.75 | 0.6846 | 661.0 | 507.7 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -17.03 | 219.10 | -43.93 | 108.63 | 0.7024 | -256.0 | -259.8 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -14.15 | 219.83 | -43.21 | 104.66 | 0.6885 | 521.0 | 425.5 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -12.86 | 219.74 | -43.29 | 102.78 | 0.6878 | 686.0 | 527.2 | |
| 0.00 | 1.77 | 0.00 | 1.22 | -15.54 | 219.00 | -44.03 | 106.50 | 0.7008 | 385.0 | 235.1 | |
| 0.62 | 3.62 | 0.43 | 2.53 | -16.03 | 218.51 | -44.52 | 107.10 | 0.7074 | -897.4 | -682.2 | |
| 14.58 | 37.20 | 10.25 | 26.07 | -16.72 | 218.27 | -44.77 | 108.02 | 0.7116 | -992.4 | -637.2 | |
| 0.00 | 2.21 | 0.00 | 1.63 | -21.28 | 216.41 | -46.62 | 113.76 | 0.7424 | -817.0 | -715.3 | |
| 0.00 | 2.12 | 0.00 | 1.49 | -16.10 | 218.19 | -44.85 | 107.13 | 0.7114 | -712.0 | -622.0 | |
| 0.00 | 2.83 | 0.00 | 2.01 | -17.09 | 217.75 | -45.28 | 108.42 | 0.7182 | -256.0 | -309.0 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -17.54 | 217.56 | -45.47 | 109.00 | 0.7213 | -692.0 | -612.3 | |
| 2.92 | 4.95 | 2.16 | 3.67 | -21.35 | 216.00 | -47.03 | 113.74 | 0.7468 | -803.2 | -624.9 | |
| 0.00 | 1.94 | 0.00 | 1.39 | -17.33 | 217.18 | -45.86 | 108.63 | 0.7252 | -774.0 | -658.1 | |
| 1.33 | 9.01 | 0.95 | 6.44 | -16.66 | 217.35 | -45.69 | 107.75 | 0.7221 | -741.3 | -620.4 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -17.51 | 217.03 | -46.01 | 108.84 | 0.7273 | -577.0 | -452.1 | |
| 1.06 | -57.00 | 0.76 | -57.00 | -16.87 | 217.19 | -45.84 | 108.00 | 0.7242 | -769.4 | 999999 | |
| 1.24 | 15.37 | 0.92 | 11.49 | -20.66 | 215.67 | -47.36 | 112.76 | 0.7488 | -869.7 | -706.2 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -19.56 | 216.07 | -46.97 | 111.39 | 0.7421 | -682.0 | -572.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -21.06 | 215.46 | -47.58 | 113.22 | 0.7519 | -607.0 | -577.0 | |
| 0.00 | 1.33 | 0.00 | 0.97 | -19.12 | 216.09 | -46.94 | 110.82 | 0.7409 | -741.0 | -590.4 | |
| 0.00 | 1.86 | 0.00 | 1.34 | -17.18 | 216.77 | -46.26 | 108.34 | 0.7296 | -794.0 | -623.9 | |
| 0.00 | 2.83 | 0.00 | 2.10 | -19.97 | 215.72 | -47.32 | 111.86 | 0.7468 | -821.0 | -695.9 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -22.30 | 214.66 | -48.37 | 114.64 | 0.7631 | -432.0 | -332.2 | |
| 0.00 | 1.77 | 0.00 | 1.33 | -20.86 | 215.26 | -47.78 | 112.91 | 0.7536 | -594.0 | -541.0 | |
| 0.00 | 4.06 | 0.00 | 3.00 | -19.38 | 215.80 | -47.23 | 111.10 | 0.7446 | -753.0 | -716.4 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -21.83 | 214.73 | -48.30 | 114.05 | 0.7613 | -547.0 | -462.7 | |
| 0.62 | -60.00 | 0.46 | -60.00 | -20.45 | 215.29 | -47.75 | 112.38 | 0.7524 | -958.6 | 999999 | |
| 0.97 | 4.33 | 0.70 | 3.14 | -17.06 | 216.49 | -46.55 | 108.13 | 0.7326 | -849.1 | -723.3 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -16.07 | 216.80 | -46.23 | 106.83 | 0.7273 | -501.0 | -440.5 | |
| 0.00 | 1.68 | 0.00 | 1.25 | -19.98 | 215.38 | -47.66 | 111.79 | 0.7504 | -507.0 | -391.6 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -16.27 | 216.61 | -46.43 | 107.07 | 0.7299 | -662.0 | -552.4 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -16.72 | 216.42 | -46.62 | 107.65 | 0.7328 | -628.0 | -616.8 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -20.42 | 214.91 | -48.13 | 112.26 | 0.7563 | -460.0 | -451.2 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -16.41 | 216.38 | -46.66 | 107.22 | 0.7327 | -422.0 | -412.0 | |
| 0.80 | 2.47 | 0.60 | 1.86 | -20.10 | 214.90 | -48.14 | 111.84 | 0.7558 | -767.1 | -604.1 | |
| 0.35 | 3.00 | 0.26 | 2.19 | -16.85 | 216.10 | -46.94 | 107.77 | 0.7366 | -624.0 | -487.5 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -17.21 | 215.98 | -47.06 | 108.24 | 0.7386 | -454.0 | -346.4 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -21.53 | 214.08 | -48.95 | 113.50 | 0.7673 | -344.0 | -324.4 | |
| 0.00 | 2.83 | 0.00 | 2.15 | -20.42 | 214.52 | -48.51 | 112.18 | 0.7604 | -527.0 | -493.2 | |
| 0.71 | 2.92 | 0.53 | 2.17 | -18.62 | 215.15 | -47.89 | 109.95 | 0.7502 | -796.5 | -614.5 | |
| 0.00 | 4.59 | 0.00 | 3.45 | -18.95 | 214.93 | -48.11 | 110.33 | 0.7532 | -868.0 | -662.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.70 | 214.93 | -48.11 | 110.00 | 0.7527 | -691.0 | -609.0 | |
| 0.62 | 14.14 | 0.47 | 10.65 | -18.65 | 214.71 | -48.33 | 109.90 | 0.7550 | -716.0 | -269.5 | |
| 5.83 | 16.88 | 4.42 | 12.79 | -18.94 | 214.40 | -48.63 | 110.22 | 0.7588 | -674.3 | -293.1 | |
| 1.59 | 3.62 | 1.22 | 2.79 | -20.37 | 213.81 | -49.23 | 111.95 | 0.7677 | -579.1 | -378.4 | |
| 1.15 | 3.27 | 0.88 | 2.51 | -19.43 | 213.86 | -49.17 | 110.75 | 0.7654 | -701.8 | -546.6 | |
| 1.50 | 10.16 | 1.16 | 7.89 | -19.68 | 213.41 | -49.62 | 110.98 | 0.7705 | -683.1 | -322.8 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -19.12 | 213.05 | -49.98 | 110.20 | 0.7733 | -640.0 | -576.3 | |
| 0.00 | 2.39 | 0.00 | 1.86 | -19.08 | 212.87 | -50.16 | 110.11 | 0.7751 | -590.0 | -505.0 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -19.23 | 212.41 | -50.63 | 110.22 | 0.7801 | -297.0 | -310.0 | |
| 0.00 | 1.15 | 0.00 | 0.90 | -18.64 | 212.50 | -50.53 | 109.48 | 0.7782 | -429.0 | -431.9 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -19.10 | 212.31 | -50.72 | 110.03 | 0.7809 | -386.0 | -287.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
