SDO HMI 2014-04-14 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.68 | 266.41 | 23.78 | 138.66 | 12.13 | 263.35 | 0.87 | 354.74 | 0.3084 | -1100.2 | -400.6 | |
|
previous
or next observation for the same group /

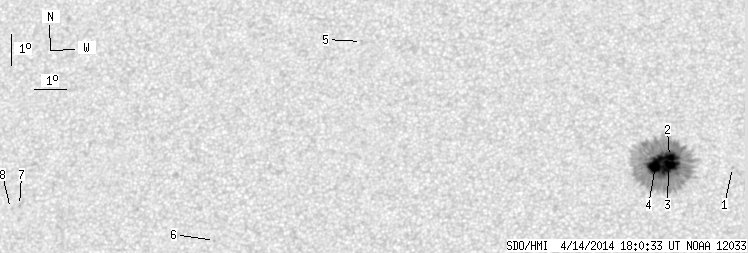

back to the solar disc SDO HMI 2014-04-14 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.02 | 265.65 | 3.16 | 349.91 | 0.3096 | 707.0 | 505.6 | |
| 10.78 | 262.34 | 5.62 | 136.49 | 12.37 | 263.71 | 1.23 | 356.12 | 0.3114 | -1248.0 | -419.0 | |
| 17.14 | -2.00 | 8.92 | -2.00 | 12.05 | 263.68 | 1.20 | 356.16 | 0.3061 | -1599.6 | 999999 | |
| 17.76 | -2.00 | 9.24 | -2.00 | 12.08 | 263.28 | 0.80 | 357.44 | 0.3062 | -1486.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 16.12 | 254.07 | -8.41 | 20.81 | 0.3974 | 617.0 | 647.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 9.89 | 249.71 | -12.77 | 39.36 | 0.3449 | 847.0 | 627.1 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 11.17 | 243.44 | -19.04 | 48.41 | 0.4298 | 725.0 | 556.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 11.08 | 243.15 | -19.33 | 48.99 | 0.4323 | 456.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
