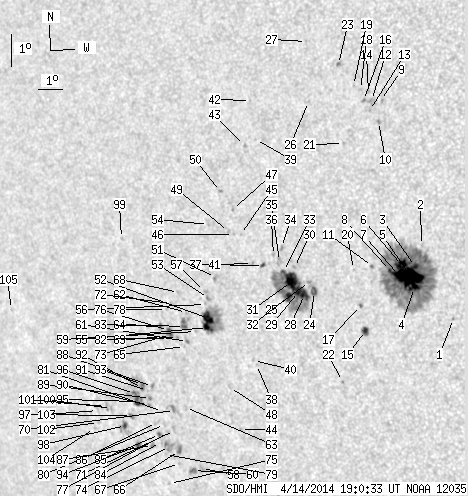

SDO HMI 2014-04-14 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.60 | 608.03 | 81.21 | 398.24 | -16.61 | 221.99 | -39.94 | 109.06 | 0.6508 | 258.5 | 47.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.75 | -17.30 | 228.08 | -33.85 | 112.28 | 0.5770 | 610.0 | 515.9 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -15.02 | 227.32 | -34.61 | 108.12 | 0.5795 | 294.0 | 249.2 | |
| 3.62 | 268.88 | 2.21 | 164.88 | -15.64 | 226.97 | -34.96 | 109.06 | 0.5860 | 1325.2 | 362.6 | |
| 4.86 | -3.00 | 2.98 | -3.00 | -16.28 | 226.80 | -35.13 | 110.05 | 0.5902 | 1139.1 | 999999 | |
| 24.12 | -3.00 | 14.77 | -3.00 | -15.97 | 226.75 | -35.18 | 109.52 | 0.5899 | 1385.2 | 999999 | |
| 7.86 | -3.00 | 4.83 | -3.00 | -15.58 | 226.48 | -35.45 | 108.79 | 0.5923 | 1014.4 | 999999 | |
| 9.81 | -3.00 | 6.04 | -3.00 | -15.88 | 226.31 | -35.62 | 109.22 | 0.5955 | 1025.3 | 999999 | |
| 0.27 | -3.00 | 0.16 | -3.00 | -15.71 | 226.00 | -35.94 | 108.83 | 0.5991 | 635.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -10.56 | 226.49 | -35.44 | 100.28 | 0.5816 | 587.0 | 680.0 | |
| 0.00 | 1.86 | 0.00 | 1.13 | -11.18 | 226.33 | -35.60 | 101.33 | 0.5847 | 961.0 | 778.0 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -15.55 | 225.33 | -36.60 | 108.36 | 0.6074 | 476.0 | 348.2 | |
| 0.00 | 3.45 | 0.00 | 2.10 | -10.54 | 226.15 | -35.78 | 100.20 | 0.5862 | 796.0 | 714.2 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -10.83 | 226.04 | -35.89 | 100.69 | 0.5882 | 747.0 | 647.4 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -10.26 | 226.08 | -35.85 | 99.72 | 0.5870 | 736.0 | 569.5 | |
| 3.18 | 5.39 | 2.01 | 3.40 | -17.48 | 224.62 | -37.31 | 111.19 | 0.6224 | -764.8 | -573.9 | |
| 0.00 | 1.68 | 0.00 | 1.03 | -10.52 | 225.85 | -36.08 | 100.13 | 0.5904 | 865.0 | 689.5 | |
| 0.44 | 1.50 | 0.28 | 0.95 | -16.71 | 224.60 | -37.33 | 109.97 | 0.6202 | 644.0 | 449.8 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -10.18 | 225.78 | -36.15 | 99.55 | 0.5909 | 789.0 | 638.7 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.05 | 225.54 | -36.39 | 99.29 | 0.5942 | 725.0 | 532.5 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -15.60 | 224.58 | -37.36 | 108.20 | 0.6174 | 706.0 | 523.0 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -11.77 | 224.90 | -37.03 | 102.06 | 0.6051 | 663.0 | 538.3 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -18.98 | 223.30 | -38.63 | 113.03 | 0.6437 | 737.0 | 622.3 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -9.38 | 225.05 | -36.88 | 98.12 | 0.6004 | 860.0 | 765.4 | |
| 3.09 | 97.64 | 1.99 | 63.59 | -16.17 | 222.89 | -39.04 | 108.61 | 0.6406 | 927.3 | 180.4 | |
| 0.00 | 1.94 | 0.00 | 1.25 | -15.86 | 222.76 | -39.17 | 108.09 | 0.6414 | 801.0 | 706.7 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -10.42 | 223.75 | -38.18 | 99.70 | 0.6190 | 658.0 | 453.1 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -8.62 | 223.91 | -38.02 | 96.78 | 0.6155 | 606.0 | 548.3 | |
| 6.10 | -24.00 | 3.95 | -24.00 | -16.24 | 222.47 | -39.46 | 108.59 | 0.6461 | 962.1 | 999999 | |
| 6.27 | -24.00 | 4.07 | -24.00 | -16.13 | 222.25 | -39.68 | 108.37 | 0.6486 | 938.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -15.39 | 222.26 | -39.67 | 107.25 | 0.6467 | 787.0 | 676.9 | |
| 16.44 | -24.00 | 10.69 | -24.00 | -15.81 | 222.04 | -39.89 | 107.83 | 0.6505 | 950.5 | 999999 | |
| 4.33 | -24.00 | 2.83 | -24.00 | -16.26 | 221.81 | -40.12 | 108.44 | 0.6544 | 624.2 | 999999 | |
| 0.27 | -24.00 | 0.17 | -24.00 | -15.49 | 221.79 | -40.14 | 107.27 | 0.6529 | 654.3 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.15 | -14.76 | 221.88 | -40.05 | 106.18 | 0.6502 | 705.0 | 610.9 | |
| 0.00 | 4.59 | 0.00 | 3.00 | -15.17 | 221.70 | -40.23 | 106.78 | 0.6534 | 665.0 | 533.9 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -14.98 | 221.50 | -40.43 | 106.43 | 0.6555 | 492.0 | 426.9 | |
| 1.06 | 2.39 | 0.70 | 1.57 | -15.25 | 221.02 | -40.91 | 106.74 | 0.6620 | 556.0 | 463.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -18.24 | 219.93 | -42.00 | 110.85 | 0.6824 | 645.0 | 540.6 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -11.44 | 221.48 | -40.45 | 101.02 | 0.6501 | 589.0 | 607.3 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -18.11 | 219.84 | -42.09 | 110.63 | 0.6831 | 702.0 | 604.9 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -15.16 | 220.59 | -41.34 | 106.51 | 0.6673 | 573.0 | 429.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -10.25 | 221.48 | -40.45 | 99.20 | 0.6491 | 427.0 | 411.9 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -11.59 | 221.01 | -40.92 | 101.20 | 0.6564 | 558.0 | 488.1 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -20.19 | 218.60 | -43.33 | 113.21 | 0.7031 | 597.0 | 495.9 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -14.26 | 220.30 | -41.63 | 105.10 | 0.6692 | 638.0 | 560.4 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -14.24 | 220.01 | -41.92 | 105.02 | 0.6727 | 586.0 | 467.8 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -13.48 | 220.14 | -41.79 | 103.92 | 0.6699 | 632.0 | 448.8 | |
| 0.00 | 1.24 | 0.00 | 0.86 | -18.87 | 218.56 | -43.37 | 111.36 | 0.7000 | 387.0 | 315.4 | |
| 0.00 | 1.41 | 0.00 | 0.95 | -14.13 | 219.83 | -42.10 | 104.83 | 0.6749 | 514.0 | 377.9 | |
| 0.00 | 1.41 | 0.00 | 0.95 | -12.91 | 219.76 | -42.17 | 103.01 | 0.6739 | 703.0 | 577.8 | |
| 0.00 | 2.30 | 0.00 | 1.56 | -15.49 | 218.95 | -42.98 | 106.64 | 0.6881 | 486.0 | 293.6 | |
| 9.10 | 44.27 | 6.28 | 30.47 | -16.71 | 218.31 | -43.62 | 108.25 | 0.6981 | -1061.2 | -571.3 | |
| 0.00 | 2.03 | 0.00 | 1.40 | -16.10 | 218.48 | -43.45 | 107.42 | 0.6948 | -996.0 | -802.6 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -13.87 | 219.05 | -42.88 | 104.31 | 0.6841 | 113.0 | 162.8 | |
| 5.66 | -52.00 | 3.91 | -52.00 | -16.98 | 218.19 | -43.75 | 108.60 | 0.7001 | -912.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -16.28 | 218.30 | -43.63 | 107.63 | 0.6973 | -701.0 | -630.6 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -15.88 | 218.37 | -43.56 | 107.08 | 0.6958 | -766.0 | -613.7 | |
| 0.00 | 3.98 | 0.00 | 2.87 | -21.27 | 216.43 | -45.50 | 114.05 | 0.7302 | -769.0 | -622.6 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -17.07 | 217.63 | -44.30 | 108.60 | 0.7068 | -699.0 | -549.5 | |
| 0.00 | 4.33 | 0.00 | 3.15 | -21.31 | 216.05 | -45.88 | 113.99 | 0.7345 | -907.0 | -751.6 | |
| 0.00 | 2.03 | 0.00 | 1.43 | -17.35 | 217.19 | -44.74 | 108.89 | 0.7124 | -748.0 | -643.5 | |
| 0.00 | 1.77 | 0.00 | 1.24 | -16.46 | 217.42 | -44.52 | 107.71 | 0.7081 | -601.0 | -518.5 | |
| 0.00 | 2.12 | 0.00 | 1.52 | -19.35 | 216.43 | -45.50 | 111.46 | 0.7255 | -450.0 | -366.7 | |
| 1.33 | 7.69 | 0.93 | 5.40 | -16.88 | 217.20 | -44.73 | 108.25 | 0.7114 | -814.0 | -693.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -17.49 | 217.01 | -44.92 | 109.05 | 0.7148 | -570.0 | -473.4 | |
| 1.24 | 5.30 | 0.90 | 3.87 | -20.65 | 215.66 | -46.27 | 113.01 | 0.7370 | -769.4 | -657.6 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -21.05 | 215.50 | -46.43 | 113.50 | 0.7397 | -573.0 | -491.7 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -15.83 | 217.24 | -44.69 | 106.79 | 0.7090 | -635.0 | -492.9 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -17.19 | 216.79 | -45.14 | 108.60 | 0.7168 | -797.0 | -726.6 | |
| 0.00 | 6.98 | 0.00 | 5.05 | -19.41 | 215.90 | -46.03 | 111.41 | 0.7314 | -766.0 | -630.6 | |
| 0.00 | 2.30 | 0.00 | 1.67 | -20.02 | 215.67 | -46.26 | 112.18 | 0.7354 | -620.0 | -630.1 | |
| 0.00 | 1.77 | 0.00 | 1.25 | -16.15 | 216.84 | -45.09 | 107.15 | 0.7142 | -553.0 | -528.0 | |
| 0.97 | 5.48 | 0.69 | 3.90 | -17.08 | 216.51 | -45.42 | 108.38 | 0.7197 | -889.0 | -683.4 | |
| 0.00 | 7.60 | 0.00 | 5.59 | -20.49 | 215.25 | -46.68 | 112.70 | 0.7410 | -836.0 | -791.3 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -21.63 | 214.78 | -47.15 | 114.08 | 0.7488 | -463.0 | -415.5 | |
| 1.33 | -73.00 | 0.94 | -73.00 | -16.96 | 216.46 | -45.47 | 108.20 | 0.7201 | -737.2 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.49 | -20.06 | 215.38 | -46.56 | 112.16 | 0.7387 | -670.0 | -545.1 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -16.31 | 216.57 | -45.36 | 107.33 | 0.7177 | -671.0 | -597.1 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -20.72 | 214.97 | -46.96 | 112.94 | 0.7446 | -562.0 | -473.8 | |
| 0.00 | 1.59 | 0.00 | 1.17 | -19.80 | 215.29 | -46.64 | 111.79 | 0.7391 | -500.0 | -462.5 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -19.40 | 215.35 | -46.58 | 111.27 | 0.7375 | -550.0 | -593.0 | |
| 0.00 | 1.86 | 0.00 | 1.33 | -17.15 | 216.09 | -45.84 | 108.38 | 0.7247 | -475.0 | -444.6 | |
| 0.80 | 2.65 | 0.57 | 1.90 | -16.81 | 216.15 | -45.78 | 107.93 | 0.7234 | -614.3 | -461.9 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -20.34 | 214.89 | -47.04 | 112.41 | 0.7446 | -423.0 | -463.6 | |
| 0.88 | 1.94 | 0.65 | 1.43 | -20.09 | 214.94 | -46.99 | 112.10 | 0.7435 | -736.7 | -588.7 | |
| 0.00 | 2.12 | 0.00 | 1.56 | -19.72 | 214.95 | -46.98 | 111.60 | 0.7426 | -478.0 | -551.8 | |
| 0.00 | 2.56 | 0.00 | 1.91 | -20.41 | 214.48 | -47.45 | 112.40 | 0.7491 | -608.0 | -531.1 | |
| 0.00 | 2.47 | 0.00 | 1.81 | -18.61 | 215.18 | -46.76 | 110.17 | 0.7378 | -748.0 | -653.5 | |
| 0.00 | 1.50 | 0.00 | 1.10 | -18.96 | 214.95 | -46.98 | 110.60 | 0.7410 | -785.0 | -749.4 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -19.18 | 214.83 | -47.11 | 110.85 | 0.7428 | -633.0 | -561.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -18.71 | 214.90 | -47.03 | 110.25 | 0.7410 | -649.0 | -612.3 | |
| 0.80 | 13.08 | 0.59 | 9.67 | -18.63 | 214.70 | -47.23 | 110.10 | 0.7431 | -703.4 | -173.5 | |
| 0.97 | -92.00 | 0.72 | -92.00 | -18.51 | 214.74 | -47.19 | 109.95 | 0.7424 | -723.5 | 999999 | |
| 2.03 | 3.62 | 1.53 | 2.73 | -20.36 | 213.83 | -48.10 | 112.19 | 0.7559 | -613.4 | -362.7 | |
| 3.71 | 15.64 | 2.76 | 11.63 | -19.01 | 214.32 | -47.61 | 110.53 | 0.7479 | -645.0 | -335.4 | |
| 1.06 | -95.00 | 0.79 | -95.00 | -18.76 | 214.27 | -47.66 | 110.18 | 0.7479 | -481.2 | 999999 | |
| 1.06 | 2.74 | 0.80 | 2.06 | -19.42 | 213.88 | -48.05 | 110.97 | 0.7535 | -660.6 | -502.8 | |
| 1.94 | 10.43 | 1.47 | 7.90 | -19.71 | 213.47 | -48.46 | 111.25 | 0.7584 | -672.0 | -386.1 | |
| 0.00 | 1.33 | 0.00 | 0.96 | -14.03 | 215.19 | -46.74 | 103.97 | 0.7304 | -562.0 | -445.3 | |
| 0.00 | 1.94 | 0.00 | 1.48 | -19.14 | 213.02 | -48.91 | 110.42 | 0.7621 | -581.0 | -529.4 | |
| 0.00 | 3.00 | 0.00 | 2.30 | -19.06 | 212.81 | -49.12 | 110.28 | 0.7642 | -582.0 | -508.9 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -19.52 | 212.23 | -49.70 | 110.76 | 0.7711 | -354.0 | -280.9 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -19.15 | 212.33 | -49.60 | 110.31 | 0.7693 | -318.0 | -269.0 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -19.69 | 211.96 | -49.97 | 110.92 | 0.7742 | -373.0 | -295.0 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -15.78 | 209.32 | -52.61 | 105.57 | 0.7960 | -363.0 | -266.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
