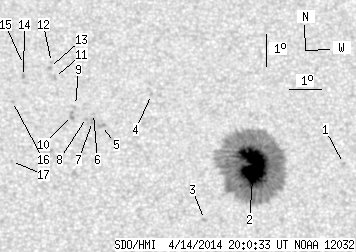

SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.09 | 403.85 | 33.74 | 215.84 | 11.82 | 274.90 | 13.52 | 322.49 | 0.3777 | -831.9 | -376.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.72 | 11.87 | 278.07 | 16.70 | 316.56 | 0.4107 | -729.0 | -558.8 | |
| 63.09 | 379.36 | 33.74 | 202.88 | 11.73 | 275.20 | 13.82 | 321.67 | 0.3788 | -1457.1 | -441.5 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 10.00 | 273.58 | 12.20 | 322.12 | 0.3405 | -852.0 | -691.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 13.92 | 272.09 | 10.71 | 331.56 | 0.3806 | -759.0 | -604.1 | |
| 0.00 | 3.27 | 0.00 | 1.73 | 12.90 | 270.48 | 9.10 | 334.06 | 0.3540 | 807.0 | 744.6 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 13.28 | 270.24 | 8.87 | 335.11 | 0.3579 | 707.0 | 598.7 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 13.03 | 270.20 | 8.83 | 334.90 | 0.3539 | 875.0 | 824.2 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 13.15 | 270.02 | 8.64 | 335.51 | 0.3545 | 777.0 | 822.8 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 13.53 | 269.69 | 8.31 | 336.77 | 0.3579 | 608.0 | 588.8 | |
| 0.00 | 3.53 | 0.00 | 1.87 | 13.21 | 269.55 | 8.18 | 336.75 | 0.3523 | 825.0 | 806.7 | |
| 0.00 | 2.03 | 0.00 | 1.08 | 14.41 | 269.07 | 7.69 | 339.26 | 0.3675 | 726.0 | 577.3 | |
| 0.00 | 0.62 | 0.00 | 0.33 | 14.89 | 268.99 | 7.61 | 339.91 | 0.3744 | 654.0 | 489.9 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 14.73 | 268.92 | 7.54 | 339.93 | 0.3715 | 887.0 | 658.8 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 14.43 | 268.10 | 6.72 | 341.71 | 0.3626 | 938.0 | 815.5 | |
| 0.00 | 1.86 | 0.00 | 0.99 | 14.82 | 268.11 | 6.73 | 342.01 | 0.3686 | 685.0 | 586.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 13.63 | 267.73 | 6.35 | 341.93 | 0.3482 | 890.0 | 716.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 11.73 | 267.65 | 6.27 | 340.27 | 0.3181 | 744.0 | 540.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
