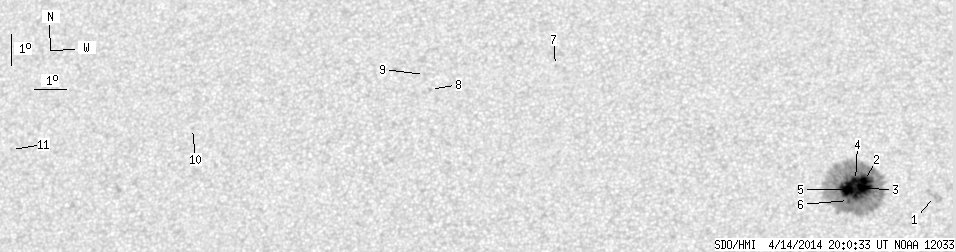

SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.48 | 265.47 | 25.75 | 138.36 | 12.17 | 263.21 | 1.83 | 350.31 | 0.3117 | -1015.0 | -355.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.19 | 0.00 | 4.79 | 11.84 | 265.92 | 4.55 | 345.51 | 0.3115 | 929.0 | 691.1 | |
| 8.48 | 250.61 | 4.42 | 130.44 | 12.34 | 263.78 | 2.40 | 352.46 | 0.3128 | -1231.6 | -429.9 | |
| 13.70 | -2.00 | 7.13 | -2.00 | 12.08 | 263.71 | 2.33 | 352.55 | 0.3085 | -1543.8 | 999999 | |
| 4.24 | -2.00 | 2.21 | -2.00 | 12.34 | 263.50 | 2.12 | 353.32 | 0.3122 | -1226.8 | 999999 | |
| 20.59 | -2.00 | 10.71 | -2.00 | 12.05 | 263.31 | 1.93 | 353.81 | 0.3071 | -1491.5 | 999999 | |
| 2.47 | -2.00 | 1.28 | -2.00 | 11.70 | 263.28 | 1.90 | 353.79 | 0.3013 | -1180.0 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 16.07 | 254.13 | -7.24 | 18.17 | 0.3903 | 819.0 | 581.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 15.36 | 250.21 | -11.17 | 27.63 | 0.4044 | 816.0 | 626.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 15.85 | 249.99 | -11.39 | 27.51 | 0.4129 | 586.0 | 487.3 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 14.32 | 242.61 | -18.77 | 42.81 | 0.4606 | 632.0 | 422.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.89 | 236.61 | -24.77 | 51.32 | 0.5231 | 639.0 | 541.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
