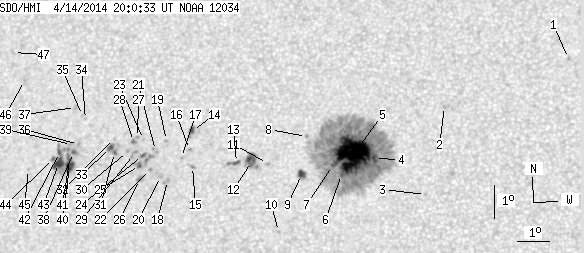

SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.12 | 593.44 | 55.65 | 310.19 | 4.12 | 245.91 | -15.47 | 57.36 | 0.3156 | -310.1 | -247.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.77 | 6.87 | 254.14 | -7.23 | 30.05 | 0.2507 | 877.0 | 647.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 5.46 | 250.37 | -11.01 | 44.87 | 0.2706 | -972.0 | -779.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 2.79 | 249.82 | -11.56 | 54.11 | 0.2481 | -822.0 | -620.0 | |
| 3.18 | 447.66 | 1.64 | 231.81 | 3.92 | 248.24 | -13.14 | 54.18 | 0.2810 | -1332.6 | -446.7 | |
| 69.81 | -4.00 | 36.14 | -4.00 | 4.09 | 247.58 | -13.80 | 55.03 | 0.2915 | -1492.5 | 999999 | |
| 0.97 | -4.00 | 0.50 | -4.00 | 3.46 | 247.22 | -14.16 | 57.53 | 0.2907 | -981.6 | 999999 | |
| 0.27 | -4.00 | 0.14 | -4.00 | 3.74 | 246.94 | -14.44 | 57.25 | 0.2972 | -922.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 4.65 | 246.11 | -15.27 | 56.26 | 0.3171 | 851.0 | 651.8 | |
| 3.71 | 5.66 | 1.93 | 2.94 | 3.49 | 245.97 | -15.40 | 59.63 | 0.3087 | -1002.1 | -783.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 1.78 | 245.27 | -16.10 | 65.64 | 0.3057 | -775.0 | -639.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 3.86 | 244.90 | -16.48 | 60.33 | 0.3271 | -896.0 | -727.9 | |
| 0.00 | 15.55 | 0.00 | 8.17 | 3.94 | 244.40 | -16.98 | 60.89 | 0.3350 | -1216.0 | -893.1 | |
| 1.41 | 5.21 | 0.74 | 2.75 | 3.92 | 243.92 | -17.45 | 61.61 | 0.3416 | -860.4 | -635.8 | |
| 1.94 | 5.48 | 1.04 | 2.92 | 4.94 | 242.50 | -18.88 | 61.02 | 0.3701 | 1030.8 | 835.0 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 3.84 | 242.53 | -18.85 | 63.65 | 0.3613 | 861.0 | 678.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 4.37 | 242.42 | -18.96 | 62.50 | 0.3667 | 1006.0 | 877.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 4.13 | 242.17 | -19.21 | 63.39 | 0.3686 | 940.0 | 719.7 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 3.44 | 241.74 | -19.64 | 65.58 | 0.3700 | 938.0 | 771.5 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 4.67 | 241.68 | -19.70 | 62.71 | 0.3797 | 988.0 | 774.1 | |
| 0.00 | 2.03 | 0.00 | 1.08 | 3.57 | 241.51 | -19.86 | 65.52 | 0.3743 | 995.0 | 826.9 | |
| 0.00 | 2.39 | 0.00 | 1.28 | 4.37 | 241.33 | -20.04 | 63.81 | 0.3825 | 549.0 | 713.8 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 3.80 | 241.19 | -20.19 | 65.34 | 0.3806 | 970.0 | 773.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 4.72 | 240.94 | -20.44 | 63.45 | 0.3907 | 724.0 | 646.8 | |
| 0.88 | 8.92 | 0.47 | 4.79 | 4.23 | 240.92 | -20.46 | 64.61 | 0.3875 | 1039.2 | 898.3 | |
| 1.24 | 5.04 | 0.66 | 2.71 | 3.93 | 240.83 | -20.55 | 65.41 | 0.3867 | 1080.0 | 770.9 | |
| 0.53 | 3.71 | 0.28 | 1.99 | 3.51 | 240.84 | -20.54 | 66.41 | 0.3837 | 1006.8 | 924.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 4.79 | 240.74 | -20.64 | 63.52 | 0.3940 | 944.0 | 766.7 | |
| 0.53 | 2.47 | 0.29 | 1.33 | 4.67 | 240.62 | -20.76 | 63.93 | 0.3950 | 848.8 | 786.1 | |
| 0.00 | 3.62 | 0.00 | 1.95 | 4.28 | 240.63 | -20.75 | 64.83 | 0.3920 | 586.0 | 762.1 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 4.37 | 240.43 | -20.95 | 64.82 | 0.3956 | 747.0 | 587.0 | |
| 0.71 | 9.63 | 0.38 | 5.21 | 4.36 | 240.01 | -21.37 | 65.30 | 0.4016 | 965.8 | 719.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 4.79 | 240.00 | -21.38 | 64.35 | 0.4047 | 636.0 | 505.1 | |
| 2.21 | -31.00 | 1.20 | -31.00 | 4.52 | 239.88 | -21.50 | 65.09 | 0.4046 | 886.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 5.41 | 239.03 | -22.34 | 64.02 | 0.4228 | 614.0 | 504.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 5.53 | 238.93 | -22.45 | 63.86 | 0.4251 | 593.0 | 564.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 4.65 | 238.83 | -22.55 | 65.86 | 0.4206 | 831.0 | 743.3 | |
| 0.00 | 2.21 | 0.00 | 1.21 | 5.79 | 238.69 | -22.69 | 63.57 | 0.4303 | 706.0 | 600.4 | |
| 1.06 | 44.18 | 0.58 | 24.15 | 4.41 | 238.68 | -22.70 | 66.53 | 0.4213 | 1100.8 | 677.3 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 4.66 | 238.60 | -22.78 | 66.06 | 0.4240 | 514.0 | 592.1 | |
| 6.54 | -38.00 | 3.57 | -38.00 | 3.99 | 238.56 | -22.82 | 67.56 | 0.4204 | 1147.5 | 999999 | |
| 1.59 | -38.00 | 0.87 | -38.00 | 4.20 | 238.55 | -22.83 | 67.10 | 0.4218 | 1160.3 | 999999 | |
| 1.15 | -38.00 | 0.63 | -38.00 | 4.43 | 238.22 | -23.16 | 66.92 | 0.4281 | 771.5 | 999999 | |
| 7.51 | -38.00 | 4.11 | -38.00 | 4.10 | 238.19 | -23.18 | 67.66 | 0.4263 | 973.4 | 999999 | |
| 0.88 | -38.00 | 0.48 | -38.00 | 4.26 | 238.02 | -23.35 | 67.47 | 0.4298 | 611.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 3.95 | 237.21 | -24.17 | 68.82 | 0.4399 | 633.0 | 520.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 6.69 | 236.96 | -24.41 | 63.47 | 0.4607 | 843.0 | 697.5 | |
| 0.00 | 2.30 | 0.00 | 1.29 | 7.57 | 236.55 | -24.83 | 62.18 | 0.4726 | 544.0 | 455.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
