SDO HMI 2014-04-14 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.65 | 0.00 | 3.56 | -15.02 | 298.13 | 37.30 | 252.68 | 0.6159 | -573.6 | -543.0 | |
|
previous
or next observation for the same group /

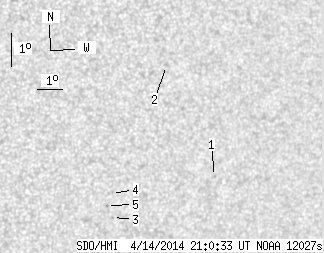

back to the solar disc SDO HMI 2014-04-14 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.58 | -15.45 | 300.98 | 40.16 | 252.79 | 0.6531 | -575.0 | -531.9 | |
| 0.00 | 1.77 | 0.00 | 1.11 | -12.21 | 298.43 | 37.60 | 257.31 | 0.6136 | -599.0 | -537.2 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -16.93 | 297.24 | 36.42 | 249.35 | 0.6092 | -650.0 | -553.0 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -16.20 | 297.04 | 36.22 | 250.46 | 0.6043 | -467.0 | -474.1 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -16.58 | 296.93 | 36.11 | 249.81 | 0.6040 | -577.0 | -623.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
