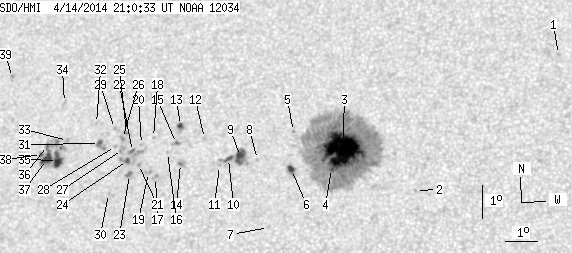

SDO HMI 2014-04-14 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.14 | 607.01 | 58.63 | 316.43 | 4.10 | 245.90 | -14.92 | 56.45 | 0.3079 | -373.4 | -222.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 6.87 | 254.18 | -6.65 | 28.01 | 0.2459 | 923.0 | 688.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 2.78 | 249.86 | -10.97 | 52.69 | 0.2400 | -831.0 | -599.3 | |
| 71.32 | 453.01 | 36.83 | 234.03 | 4.08 | 247.59 | -13.23 | 53.92 | 0.2838 | -1480.1 | -441.0 | |
| 1.24 | -3.00 | 0.64 | -3.00 | 3.51 | 247.26 | -13.57 | 56.25 | 0.2828 | -1092.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 4.67 | 246.06 | -14.77 | 55.31 | 0.3103 | 880.0 | 690.6 | |
| 3.18 | 5.39 | 1.65 | 2.80 | 3.51 | 246.02 | -14.81 | 58.56 | 0.3003 | -1030.3 | -822.7 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 1.77 | 245.32 | -15.51 | 64.84 | 0.2965 | -766.0 | -596.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 3.85 | 244.95 | -15.88 | 59.43 | 0.3184 | -858.0 | -746.0 | |
| 9.01 | 24.48 | 4.72 | 12.83 | 3.95 | 244.41 | -16.41 | 59.99 | 0.3269 | -981.5 | -716.2 | |
| 2.12 | -9.00 | 1.11 | -9.00 | 3.90 | 244.04 | -16.79 | 60.69 | 0.3319 | -830.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 3.70 | 243.76 | -17.07 | 61.64 | 0.3343 | -686.0 | -478.7 | |
| 0.00 | 1.94 | 0.00 | 1.03 | 4.54 | 243.27 | -17.56 | 60.20 | 0.3481 | 769.0 | 488.9 | |
| 2.39 | 5.48 | 1.27 | 2.91 | 4.96 | 242.49 | -18.33 | 60.25 | 0.3625 | 966.7 | 778.4 | |
| 0.44 | 5.74 | 0.23 | 3.04 | 3.80 | 242.52 | -18.30 | 63.07 | 0.3530 | 808.0 | 341.8 | |
| 0.53 | 3.36 | 0.28 | 1.78 | 4.41 | 242.38 | -18.44 | 61.73 | 0.3597 | 1118.2 | 732.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 4.15 | 242.10 | -18.72 | 62.74 | 0.3617 | 804.0 | 575.6 | |
| 0.00 | 3.09 | 0.00 | 1.64 | 3.40 | 241.73 | -19.09 | 65.06 | 0.3616 | 910.0 | 821.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 4.62 | 241.64 | -19.18 | 62.18 | 0.3719 | 930.0 | 753.3 | |
| 0.00 | 2.56 | 0.00 | 1.36 | 3.56 | 241.51 | -19.32 | 64.93 | 0.3661 | 826.0 | 778.7 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 4.42 | 241.26 | -19.56 | 63.13 | 0.3758 | 857.0 | 659.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 3.81 | 241.18 | -19.64 | 64.68 | 0.3726 | 991.0 | 827.7 | |
| 0.88 | 16.61 | 0.47 | 8.88 | 4.22 | 240.98 | -19.84 | 63.95 | 0.3785 | 1094.7 | 836.4 | |
| 0.00 | 2.92 | 0.00 | 1.56 | 3.52 | 240.90 | -19.92 | 65.72 | 0.3747 | 1146.0 | 992.1 | |
| 1.41 | -22.00 | 0.76 | -22.00 | 3.95 | 240.83 | -20.00 | 64.77 | 0.3788 | 1060.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 4.80 | 240.77 | -20.05 | 62.82 | 0.3858 | 900.0 | 720.9 | |
| 0.00 | 2.65 | 0.00 | 1.42 | 4.62 | 240.65 | -20.18 | 63.38 | 0.3862 | 971.0 | 798.7 | |
| 0.00 | 3.71 | 0.00 | 1.99 | 4.29 | 240.66 | -20.17 | 64.15 | 0.3837 | 864.0 | 812.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 4.39 | 240.43 | -20.39 | 64.18 | 0.3877 | 740.0 | 612.5 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 4.94 | 240.38 | -20.44 | 62.96 | 0.3923 | 761.0 | 562.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 2.96 | 240.24 | -20.59 | 67.78 | 0.3810 | 681.0 | 550.4 | |
| 1.68 | 6.63 | 0.91 | 3.57 | 4.50 | 239.91 | -20.91 | 64.50 | 0.3959 | 885.7 | 809.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 5.11 | 239.79 | -21.03 | 63.24 | 0.4020 | 673.0 | 554.1 | |
| 0.00 | 1.50 | 0.00 | 0.82 | 4.63 | 238.87 | -21.96 | 65.31 | 0.4119 | 869.0 | 686.6 | |
| 0.00 | 2.30 | 0.00 | 1.25 | 5.80 | 238.73 | -22.09 | 62.93 | 0.4220 | 688.0 | 532.2 | |
| 8.40 | 46.13 | 4.56 | 25.11 | 4.03 | 238.56 | -22.26 | 66.95 | 0.4125 | 1137.6 | 721.5 | |
| 1.15 | -35.00 | 0.63 | -35.00 | 4.50 | 238.22 | -22.60 | 66.24 | 0.4204 | 714.5 | 999999 | |
| 7.42 | -35.00 | 4.04 | -35.00 | 4.08 | 238.20 | -22.62 | 67.19 | 0.4180 | 967.8 | 999999 | |
| 0.97 | -35.00 | 0.53 | -35.00 | 4.24 | 238.03 | -22.79 | 67.00 | 0.4215 | 682.3 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.57 | 6.64 | 236.98 | -23.84 | 63.02 | 0.4524 | 669.0 | 579.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
