SDO HMI 2014-04-14 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.52 | 613.30 | 58.68 | 318.93 | 4.13 | 245.85 | -14.42 | 55.39 | 0.3013 | -393.7 | -223.9 | |
|
previous
or next observation for the same group /

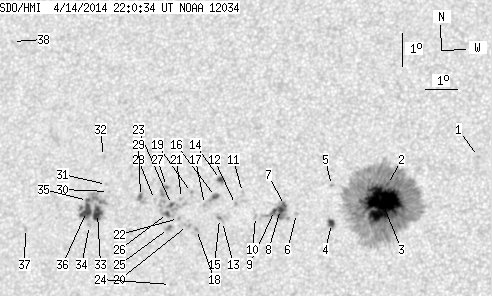

back to the solar disc SDO HMI 2014-04-14 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.44 | 250.52 | -9.75 | 41.44 | 0.2558 | -797.0 | -623.1 | |
| 1.15 | 455.62 | 0.59 | 234.83 | 4.64 | 247.74 | -12.54 | 50.82 | 0.2803 | -851.8 | -434.7 | |
| 75.22 | -2.00 | 38.76 | -2.00 | 4.10 | 247.59 | -12.68 | 52.69 | 0.2765 | -1443.7 | 999999 | |
| 3.09 | 4.60 | 1.60 | 2.38 | 3.50 | 246.02 | -14.25 | 57.61 | 0.2923 | -1003.6 | -809.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 4.66 | 246.00 | -14.27 | 54.41 | 0.3035 | 765.0 | 614.0 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 3.83 | 244.92 | -15.35 | 58.61 | 0.3108 | -894.0 | -724.5 | |
| 0.97 | 23.95 | 0.51 | 12.51 | 4.09 | 244.54 | -15.73 | 58.55 | 0.3183 | -877.4 | -806.6 | |
| 3.01 | -7.00 | 1.57 | -7.00 | 3.97 | 244.42 | -15.85 | 59.07 | 0.3191 | -1078.6 | 999999 | |
| 1.24 | -7.00 | 0.65 | -7.00 | 3.94 | 244.23 | -16.04 | 59.44 | 0.3215 | -875.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 3.78 | 243.64 | -16.63 | 60.80 | 0.3286 | -565.0 | -406.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 4.52 | 243.21 | -17.06 | 59.50 | 0.3409 | 712.0 | 556.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 4.16 | 243.00 | -17.27 | 60.74 | 0.3409 | 592.0 | 552.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 3.66 | 242.60 | -17.67 | 62.60 | 0.3427 | 590.0 | 423.6 | |
| 2.12 | 3.80 | 1.12 | 2.01 | 4.94 | 242.51 | -17.76 | 59.50 | 0.3543 | 1014.8 | 808.3 | |
| 0.44 | 1.15 | 0.23 | 0.61 | 3.75 | 242.50 | -17.77 | 62.49 | 0.3448 | 826.2 | 593.2 | |
| 2.03 | 6.01 | 1.08 | 3.18 | 4.43 | 242.36 | -17.91 | 60.97 | 0.3522 | 1090.4 | 637.1 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 4.19 | 242.02 | -18.25 | 62.02 | 0.3553 | 439.0 | 391.4 | |
| 0.00 | 1.94 | 0.00 | 1.03 | 3.44 | 241.78 | -18.49 | 64.23 | 0.3531 | 993.0 | 835.8 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 4.57 | 241.60 | -18.68 | 61.65 | 0.3643 | 946.0 | 740.0 | |
| 0.00 | 3.27 | 0.00 | 1.73 | 3.57 | 241.49 | -18.78 | 64.26 | 0.3583 | 842.0 | 745.1 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 4.40 | 241.28 | -18.99 | 62.47 | 0.3675 | 824.0 | 689.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 3.79 | 241.20 | -19.07 | 64.06 | 0.3641 | 985.0 | 854.8 | |
| 1.33 | 33.32 | 0.71 | 17.77 | 4.23 | 240.97 | -19.31 | 63.28 | 0.3707 | 1015.3 | 759.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 1.80 | 240.98 | -19.29 | 69.42 | 0.3543 | 690.0 | 549.9 | |
| 0.00 | 2.92 | 0.00 | 1.55 | 3.50 | 240.89 | -19.38 | 65.16 | 0.3667 | 1123.0 | 968.8 | |
| 1.59 | -23.00 | 0.85 | -23.00 | 3.96 | 240.84 | -19.43 | 64.08 | 0.3705 | 1041.4 | 999999 | |
| 0.53 | -23.00 | 0.28 | -23.00 | 4.78 | 240.79 | -19.48 | 62.17 | 0.3774 | 856.0 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.95 | 4.40 | 240.42 | -19.85 | 63.53 | 0.3799 | 707.0 | 520.9 | |
| 1.15 | 6.36 | 0.62 | 3.42 | 4.51 | 239.96 | -20.31 | 63.81 | 0.3872 | 961.3 | 789.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 4.70 | 238.93 | -21.35 | 64.52 | 0.4036 | 726.0 | 600.2 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 4.91 | 238.85 | -21.42 | 64.12 | 0.4061 | 289.0 | 271.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 5.78 | 238.73 | -21.55 | 62.37 | 0.4141 | 593.0 | 397.0 | |
| 8.40 | 44.63 | 4.54 | 24.19 | 4.04 | 238.59 | -21.68 | 66.36 | 0.4040 | 1161.3 | 735.0 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 3.68 | 238.34 | -21.93 | 67.42 | 0.4054 | 263.0 | 333.6 | |
| 0.97 | -33.00 | 0.53 | -33.00 | 4.45 | 238.25 | -22.02 | 65.78 | 0.4116 | 750.9 | 999999 | |
| 9.28 | -33.00 | 5.04 | -33.00 | 4.11 | 238.23 | -22.04 | 66.55 | 0.4098 | 953.1 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.02 | 3.68 | 236.24 | -24.03 | 69.31 | 0.4362 | 678.0 | 514.9 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 9.46 | 235.51 | -24.76 | 58.65 | 0.4857 | 619.0 | 597.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
