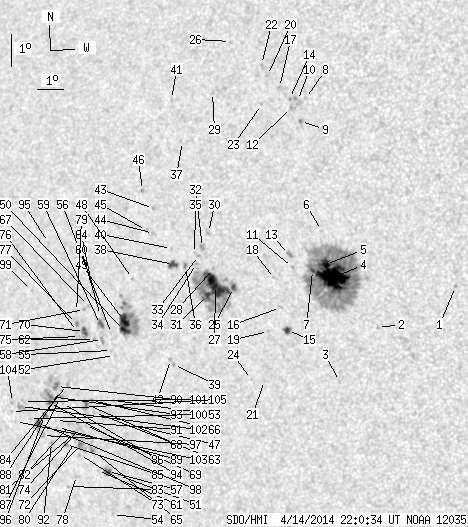

SDO HMI 2014-04-14 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130.37 | 633.26 | 83.42 | 404.86 | -16.59 | 222.07 | -38.20 | 109.56 | 0.6288 | 189.2 | 79.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.71 | -16.46 | 231.15 | -29.12 | 113.16 | 0.5096 | 746.0 | 578.4 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -17.58 | 228.09 | -32.18 | 113.53 | 0.5559 | 742.0 | 612.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -19.16 | 226.30 | -33.97 | 115.30 | 0.5860 | -633.0 | -522.2 | |
| 43.84 | 270.10 | 26.33 | 162.29 | -15.97 | 226.76 | -33.51 | 110.16 | 0.5676 | 1244.1 | 385.4 | |
| 5.92 | -4.00 | 3.56 | -4.00 | -15.55 | 226.54 | -33.74 | 109.36 | 0.5693 | 1065.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -14.52 | 226.57 | -33.70 | 107.58 | 0.5656 | 496.0 | 494.8 | |
| 1.24 | -4.00 | 0.75 | -4.00 | -15.71 | 226.02 | -34.26 | 109.43 | 0.5768 | 565.7 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -10.50 | 226.58 | -33.69 | 100.48 | 0.5568 | 770.0 | 571.6 | |
| 0.00 | 1.77 | 0.00 | 1.06 | -11.18 | 226.31 | -33.96 | 101.64 | 0.5617 | 1006.0 | 832.8 | |
| 0.00 | 3.54 | 0.00 | 2.11 | -10.54 | 226.28 | -33.99 | 100.50 | 0.5611 | 732.0 | 710.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -15.58 | 225.28 | -34.99 | 108.94 | 0.5862 | 653.0 | 514.5 | |
| 0.00 | 3.27 | 0.00 | 1.96 | -10.74 | 226.03 | -34.24 | 100.81 | 0.5649 | 701.0 | 596.2 | |
| 0.00 | 3.09 | 0.00 | 1.89 | -15.18 | 225.24 | -35.03 | 108.26 | 0.5855 | 722.0 | 582.4 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -10.47 | 226.00 | -34.28 | 100.32 | 0.5651 | 886.0 | 797.6 | |
| 2.92 | 5.39 | 1.80 | 3.33 | -17.48 | 224.68 | -35.59 | 111.86 | 0.6003 | -797.3 | -532.5 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -16.77 | 224.57 | -35.70 | 110.65 | 0.5993 | 636.0 | 451.0 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -10.12 | 225.67 | -34.60 | 99.65 | 0.5693 | 836.0 | 699.2 | |
| 0.00 | 1.68 | 0.00 | 1.03 | -15.87 | 224.53 | -35.74 | 109.17 | 0.5971 | 585.0 | 479.5 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.47 | 223.94 | -36.33 | 111.55 | 0.6098 | 648.0 | 537.4 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -9.73 | 225.27 | -35.00 | 98.92 | 0.5745 | 562.0 | 569.1 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -18.96 | 223.42 | -36.85 | 113.69 | 0.6217 | 528.0 | 405.8 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -9.39 | 225.09 | -35.19 | 98.31 | 0.5767 | 693.0 | 592.2 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -10.59 | 224.93 | -35.34 | 100.37 | 0.5802 | 532.0 | 435.3 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -18.90 | 222.91 | -37.36 | 113.40 | 0.6278 | 559.0 | 530.7 | |
| 2.30 | 106.15 | 1.45 | 67.52 | -16.05 | 222.89 | -37.38 | 108.93 | 0.6190 | 993.8 | 250.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -8.63 | 224.01 | -36.26 | 96.91 | 0.5913 | 702.0 | 599.0 | |
| 27.58 | -25.00 | 17.51 | -25.00 | -15.95 | 222.20 | -38.07 | 108.55 | 0.6277 | 969.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -15.43 | 222.24 | -38.04 | 107.75 | 0.6259 | 825.0 | 720.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.12 | 223.14 | -37.13 | 99.33 | 0.6045 | 607.0 | 425.6 | |
| 0.00 | 2.39 | 0.00 | 1.51 | -14.33 | 222.27 | -38.00 | 106.01 | 0.6229 | 452.0 | 380.6 | |
| 3.09 | -25.00 | 1.98 | -25.00 | -16.24 | 221.82 | -38.46 | 108.88 | 0.6334 | 593.6 | 999999 | |
| 0.00 | 3.45 | 0.00 | 2.19 | -14.77 | 221.94 | -38.33 | 106.62 | 0.6281 | 723.0 | 683.2 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -15.00 | 221.73 | -38.54 | 106.94 | 0.6314 | 663.0 | 558.0 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -15.24 | 221.60 | -38.67 | 107.27 | 0.6336 | 439.0 | 343.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -14.93 | 221.59 | -38.68 | 106.79 | 0.6331 | 528.0 | 436.3 | |
| 0.44 | 2.03 | 0.28 | 1.31 | -15.30 | 221.14 | -39.13 | 107.25 | 0.6396 | 631.0 | 462.5 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -11.52 | 221.76 | -38.51 | 101.43 | 0.6247 | 267.0 | 297.5 | |
| 4.07 | 6.10 | 2.63 | 3.95 | -15.21 | 220.68 | -39.59 | 107.00 | 0.6454 | 556.6 | 350.3 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -18.25 | 219.91 | -40.37 | 111.36 | 0.6627 | 601.0 | 504.2 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -14.72 | 220.71 | -39.56 | 106.25 | 0.6439 | 440.0 | 317.5 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -10.24 | 221.53 | -38.74 | 99.34 | 0.6264 | 617.0 | 466.7 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -18.09 | 219.83 | -40.45 | 111.09 | 0.6632 | 739.0 | 609.6 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -13.47 | 220.24 | -40.03 | 104.23 | 0.6475 | 446.0 | 414.7 | |
| 0.00 | 1.77 | 0.00 | 1.15 | -14.23 | 220.09 | -40.19 | 105.35 | 0.6509 | 596.0 | 480.6 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -14.12 | 219.82 | -40.45 | 105.13 | 0.6540 | 473.0 | 385.4 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -12.90 | 219.91 | -40.36 | 103.29 | 0.6509 | 678.0 | 580.7 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -20.01 | 217.65 | -42.62 | 113.19 | 0.6945 | 350.0 | 293.4 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -15.53 | 218.92 | -41.35 | 107.06 | 0.6682 | 416.0 | 283.1 | |
| 9.99 | 49.76 | 6.72 | 33.40 | -16.78 | 218.26 | -42.02 | 108.74 | 0.6790 | -1044.1 | -594.0 | |
| 5.92 | -49.00 | 3.99 | -49.00 | -17.09 | 218.17 | -42.10 | 109.16 | 0.6807 | -897.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -21.51 | 216.45 | -43.82 | 114.88 | 0.7124 | -634.0 | -578.6 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -17.82 | 217.53 | -42.74 | 110.05 | 0.6901 | -693.0 | -558.4 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -19.19 | 217.05 | -43.22 | 111.86 | 0.6991 | 305.0 | 237.3 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -22.70 | 215.71 | -44.57 | 116.25 | 0.7242 | -675.0 | -536.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -17.66 | 217.45 | -42.82 | 109.80 | 0.6907 | -440.0 | -478.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -17.14 | 217.60 | -42.67 | 109.09 | 0.6877 | -400.0 | -516.0 | |
| 3.18 | 5.13 | 2.25 | 3.63 | -21.35 | 216.02 | -44.26 | 114.54 | 0.7168 | -816.1 | -608.0 | |
| 0.00 | 3.18 | 0.00 | 2.18 | -17.30 | 217.17 | -43.11 | 109.21 | 0.6932 | -682.0 | -635.0 | |
| 2.21 | 6.72 | 1.51 | 4.59 | -16.84 | 217.21 | -43.06 | 108.56 | 0.6917 | -865.7 | -667.2 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -16.57 | 217.29 | -42.98 | 108.19 | 0.6902 | -459.0 | -522.1 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -21.29 | 215.58 | -44.69 | 114.32 | 0.7214 | -586.0 | -499.6 | |
| 0.00 | 1.68 | 0.00 | 1.16 | -17.28 | 216.82 | -43.45 | 109.10 | 0.6972 | -736.0 | -646.7 | |
| 0.00 | 1.50 | 0.00 | 1.05 | -19.50 | 216.11 | -44.16 | 112.03 | 0.7108 | -731.0 | -618.4 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -15.85 | 217.19 | -43.09 | 107.14 | 0.6900 | -744.0 | -619.3 | |
| 0.71 | 4.86 | 0.50 | 3.45 | -20.66 | 215.60 | -44.67 | 113.47 | 0.7195 | -894.2 | -608.0 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -19.13 | 216.10 | -44.17 | 111.51 | 0.7099 | -805.0 | -665.8 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -16.23 | 216.87 | -43.41 | 107.62 | 0.6946 | -681.0 | -594.5 | |
| 1.06 | 4.24 | 0.75 | 2.99 | -19.24 | 215.84 | -44.43 | 111.59 | 0.7131 | -781.8 | -720.9 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -19.87 | 215.57 | -44.70 | 112.39 | 0.7178 | -732.0 | -616.6 | |
| 3.18 | 6.36 | 2.20 | 4.41 | -17.01 | 216.47 | -43.80 | 108.63 | 0.7008 | -834.0 | -626.3 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -16.34 | 216.66 | -43.61 | 107.73 | 0.6972 | -647.0 | -592.8 | |
| 1.41 | 8.40 | 1.01 | 6.01 | -20.44 | 215.14 | -45.14 | 113.04 | 0.7241 | -902.6 | -692.4 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -20.75 | 214.97 | -45.30 | 113.41 | 0.7266 | -533.0 | -498.0 | |
| 0.00 | 5.13 | 0.00 | 3.65 | -19.95 | 215.27 | -45.00 | 112.41 | 0.7213 | -728.0 | -614.5 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -17.14 | 216.21 | -44.06 | 108.76 | 0.7042 | -558.0 | -504.9 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -16.99 | 216.17 | -44.10 | 108.53 | 0.7043 | -519.0 | -461.3 | |
| 0.44 | 1.86 | 0.31 | 1.29 | -16.74 | 216.20 | -44.07 | 108.19 | 0.7035 | -622.8 | -474.3 | |
| 0.00 | 2.21 | 0.00 | 1.60 | -21.38 | 214.58 | -45.69 | 114.15 | 0.7326 | -451.0 | -424.2 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -16.38 | 216.30 | -43.97 | 107.70 | 0.7015 | -581.0 | -501.9 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -20.33 | 214.95 | -45.32 | 112.85 | 0.7259 | -627.0 | -588.2 | |
| 0.44 | 1.24 | 0.32 | 0.89 | -20.11 | 214.94 | -45.33 | 112.55 | 0.7254 | -840.4 | -714.0 | |
| 0.00 | 2.65 | 0.00 | 1.90 | -19.80 | 214.92 | -45.35 | 112.11 | 0.7249 | -594.0 | -612.4 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -21.70 | 214.08 | -46.19 | 114.43 | 0.7388 | -435.0 | -404.5 | |
| 0.00 | 2.21 | 0.00 | 1.57 | -18.57 | 215.22 | -45.05 | 110.51 | 0.7187 | -680.0 | -563.0 | |
| 0.80 | 2.65 | 0.58 | 1.92 | -20.40 | 214.46 | -45.81 | 112.80 | 0.7313 | -644.3 | -500.9 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -19.13 | 214.79 | -45.48 | 111.18 | 0.7247 | -721.0 | -570.6 | |
| 0.00 | 2.47 | 0.00 | 1.77 | -18.91 | 214.78 | -45.49 | 110.88 | 0.7243 | -911.0 | -792.1 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -18.73 | 214.85 | -45.43 | 110.64 | 0.7232 | -778.0 | -629.3 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -19.85 | 214.30 | -45.97 | 112.03 | 0.7318 | -631.0 | -572.6 | |
| 2.03 | 14.05 | 1.46 | 10.08 | -18.60 | 214.71 | -45.56 | 110.43 | 0.7245 | -739.8 | -246.8 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -19.63 | 214.29 | -45.98 | 111.73 | 0.7314 | -568.0 | -489.6 | |
| 0.00 | 1.41 | 0.00 | 1.03 | -20.29 | 213.85 | -46.42 | 112.50 | 0.7377 | -741.0 | -597.3 | |
| 2.12 | 15.73 | 1.53 | 11.37 | -18.88 | 214.34 | -45.94 | 110.73 | 0.7293 | -769.4 | -359.6 | |
| 1.41 | -93.00 | 1.02 | -93.00 | -19.06 | 214.22 | -46.05 | 110.95 | 0.7309 | -632.2 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -14.21 | 215.66 | -44.61 | 104.53 | 0.7056 | -666.0 | -610.0 | |
| 1.06 | 2.21 | 0.77 | 1.61 | -19.44 | 213.85 | -46.42 | 111.37 | 0.7358 | -702.6 | -577.5 | |
| 0.00 | 2.74 | 0.00 | 2.01 | -20.05 | 213.53 | -46.74 | 112.10 | 0.7407 | -367.0 | -400.7 | |
| 3.01 | 6.98 | 2.21 | 5.13 | -19.67 | 213.49 | -46.78 | 111.58 | 0.7403 | -657.9 | -401.8 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -15.61 | 214.53 | -45.74 | 106.29 | 0.7210 | -566.0 | -506.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -19.49 | 213.14 | -47.14 | 111.26 | 0.7438 | -499.0 | -444.8 | |
| 0.00 | 1.77 | 0.00 | 1.30 | -18.95 | 213.06 | -47.21 | 110.53 | 0.7435 | -568.0 | -446.8 | |
| 0.00 | 3.80 | 0.00 | 2.82 | -19.09 | 212.86 | -47.41 | 110.68 | 0.7459 | -758.0 | -573.3 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -19.53 | 212.45 | -47.82 | 111.17 | 0.7512 | -319.0 | -266.7 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -18.94 | 212.54 | -47.73 | 110.41 | 0.7491 | -573.0 | -496.8 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -19.21 | 212.39 | -47.88 | 110.74 | 0.7513 | -450.0 | -383.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
