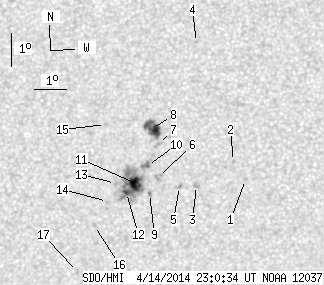

SDO HMI 2014-04-14 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.83 | 108.97 | 14.94 | 56.60 | -9.59 | 242.66 | -17.06 | 104.13 | 0.3000 | 252.1 | 105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.90 | 245.88 | -13.83 | 108.12 | 0.2490 | 915.0 | 738.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.35 | 245.53 | -14.19 | 105.62 | 0.2522 | 767.0 | 490.7 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -10.04 | 244.33 | -15.39 | 107.06 | 0.2745 | 717.0 | 678.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -5.74 | 244.50 | -15.22 | 91.13 | 0.2624 | 700.0 | 527.9 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -10.06 | 243.79 | -15.93 | 106.63 | 0.2832 | 964.0 | 767.4 | |
| 0.00 | 4.77 | 0.00 | 2.47 | -9.74 | 243.14 | -16.58 | 105.02 | 0.2924 | -463.0 | -656.6 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -8.78 | 243.19 | -16.53 | 101.78 | 0.2885 | 678.0 | 529.2 | |
| 13.44 | 20.15 | 6.95 | 10.43 | -8.29 | 243.02 | -16.70 | 100.02 | 0.2900 | 1051.4 | 719.7 | |
| 0.00 | 1.94 | 0.00 | 1.01 | -10.24 | 242.83 | -16.89 | 106.44 | 0.2995 | -825.0 | -639.1 | |
| 0.80 | 6.89 | 0.41 | 3.58 | -9.40 | 242.81 | -16.91 | 103.64 | 0.2966 | -1156.6 | -815.8 | |
| 12.38 | 57.19 | 6.43 | 29.76 | -9.93 | 242.40 | -17.32 | 105.09 | 0.3051 | -1029.9 | 51.3 | |
| 2.21 | -11.00 | 1.15 | -11.00 | -10.19 | 242.09 | -17.63 | 105.71 | 0.3109 | 1053.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.91 | 241.76 | -17.96 | 104.59 | 0.3153 | 734.0 | 658.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.44 | 241.47 | -18.25 | 106.04 | 0.3219 | 693.0 | 451.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -8.12 | 241.53 | -18.19 | 98.85 | 0.3141 | 750.0 | 572.4 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.15 | 241.00 | -18.72 | 107.81 | 0.3321 | 747.0 | 564.5 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -12.52 | 240.35 | -19.37 | 111.15 | 0.3487 | 654.0 | 505.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
