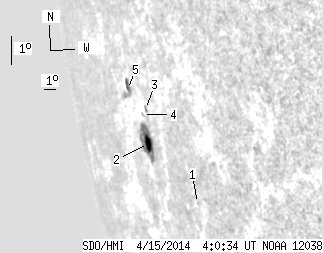

SDO HMI 2014-04-15 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.37 | 45.47 | 11.91 | 86.44 | -13.30 | 181.29 | -75.67 | 102.29 | 0.9662 | -4.5 | -92.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 1.09 | -15.92 | 184.98 | -71.99 | 104.93 | 0.9479 | 104.0 | 76.8 | |
| 6.37 | 32.29 | 11.91 | 60.82 | -13.73 | 181.46 | -75.50 | 102.72 | 0.9654 | 32.9 | -76.1 | |
| 0.00 | 2.12 | 0.00 | 3.84 | -12.72 | 182.01 | -74.96 | 101.66 | 0.9631 | -407.0 | -360.0 | |
| 0.00 | 0.88 | 0.00 | 1.65 | -12.84 | 181.54 | -75.43 | 101.80 | 0.9652 | -315.0 | -305.9 | |
| 0.00 | 9.47 | 0.00 | 19.04 | -11.95 | 180.38 | -76.58 | 100.94 | 0.9703 | 154.0 | -70.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
