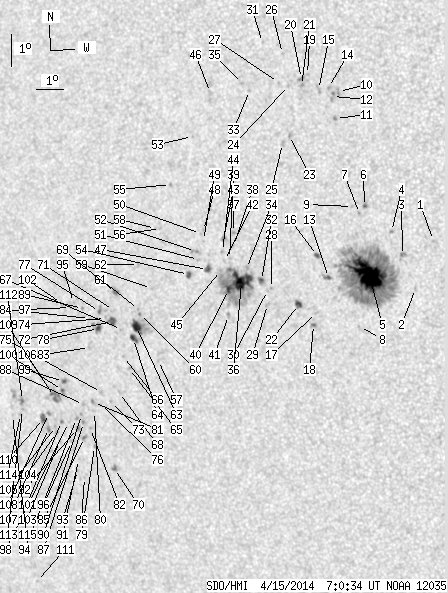

SDO HMI 2014-04-15 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.77 | 597.20 | 65.44 | 356.32 | -16.25 | 222.87 | -32.46 | 111.27 | 0.5530 | 189.2 | 132.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.01 | 229.40 | -25.92 | 112.28 | 0.4581 | 765.0 | 617.2 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -16.44 | 228.57 | -26.75 | 114.66 | 0.4769 | 764.0 | 600.5 | |
| 0.00 | 4.25 | 0.00 | 2.39 | -15.42 | 228.27 | -27.06 | 112.41 | 0.4762 | -784.0 | -539.4 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -14.67 | 227.99 | -27.34 | 110.74 | 0.4770 | -768.0 | -570.1 | |
| 48.57 | 265.16 | 27.68 | 151.20 | -15.97 | 227.02 | -28.30 | 112.77 | 0.4964 | 1348.5 | 406.6 | |
| 0.44 | 1.68 | 0.25 | 0.95 | -13.87 | 227.15 | -28.18 | 108.69 | 0.4859 | -938.6 | -815.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -14.07 | 226.94 | -28.38 | 109.00 | 0.4896 | 598.0 | 447.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -17.51 | 226.40 | -28.92 | 115.31 | 0.5122 | -255.0 | -257.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -13.85 | 226.73 | -28.60 | 108.45 | 0.4919 | -518.0 | -411.6 | |
| 0.00 | 3.01 | 0.00 | 1.70 | -10.35 | 226.65 | -28.67 | 101.34 | 0.4834 | 862.0 | 770.4 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -11.16 | 226.46 | -28.86 | 102.94 | 0.4879 | 1019.0 | 882.4 | |
| 0.00 | 3.36 | 0.00 | 1.90 | -10.49 | 226.43 | -28.90 | 101.57 | 0.4870 | 769.0 | 812.9 | |
| 0.97 | 3.89 | 0.56 | 2.25 | -15.97 | 225.55 | -29.77 | 111.94 | 0.5167 | 685.0 | 599.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -10.22 | 226.31 | -29.01 | 100.98 | 0.4881 | 955.0 | 797.6 | |
| 0.00 | 3.72 | 0.00 | 2.11 | -10.26 | 225.96 | -29.36 | 100.98 | 0.4935 | 777.0 | 617.9 | |
| 1.06 | 2.39 | 0.61 | 1.38 | -15.28 | 225.26 | -30.06 | 110.51 | 0.5179 | 901.6 | 745.3 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -17.01 | 224.93 | -30.39 | 113.54 | 0.5297 | -239.0 | -222.0 | |
| 0.44 | 2.30 | 0.26 | 1.35 | -17.37 | 224.76 | -30.57 | 114.09 | 0.5337 | -933.0 | -756.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -9.79 | 225.62 | -29.70 | 99.96 | 0.4977 | 772.0 | 676.3 | |
| 0.00 | 2.65 | 0.00 | 1.52 | -9.90 | 225.40 | -29.92 | 100.13 | 0.5012 | 756.0 | 690.0 | |
| 0.00 | 1.77 | 0.00 | 1.01 | -10.11 | 225.38 | -29.95 | 100.55 | 0.5019 | 860.0 | 748.9 | |
| 2.74 | 4.34 | 1.61 | 2.54 | -16.74 | 224.32 | -31.00 | 112.72 | 0.5368 | -827.1 | -641.4 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -11.60 | 224.78 | -30.54 | 103.31 | 0.5136 | 871.0 | 707.9 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -10.09 | 224.92 | -30.40 | 100.40 | 0.5086 | 649.0 | 572.4 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -11.82 | 224.50 | -30.82 | 103.67 | 0.5181 | 757.0 | 602.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.11 | 224.80 | -30.52 | 98.47 | 0.5090 | 602.0 | 416.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -9.98 | 224.57 | -30.75 | 100.12 | 0.5135 | 577.0 | 491.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -16.20 | 223.43 | -31.89 | 111.33 | 0.5468 | 861.0 | 731.2 | |
| 0.00 | 2.21 | 0.00 | 1.31 | -16.68 | 223.19 | -32.13 | 112.06 | 0.5519 | 594.0 | 540.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -16.25 | 223.27 | -32.05 | 111.35 | 0.5492 | 806.0 | 728.9 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -8.75 | 224.13 | -31.19 | 97.67 | 0.5186 | 539.0 | 373.4 | |
| 1.33 | 3.10 | 0.79 | 1.83 | -15.94 | 223.11 | -32.22 | 110.72 | 0.5502 | 973.3 | 757.3 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.17 | 223.51 | -31.81 | 100.28 | 0.5293 | 740.0 | 623.7 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -15.54 | 222.62 | -32.70 | 109.82 | 0.5554 | 814.0 | 710.5 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -9.94 | 223.29 | -32.03 | 99.82 | 0.5323 | 724.0 | 597.7 | |
| 21.32 | 89.54 | 12.73 | 53.61 | -15.93 | 222.36 | -32.96 | 110.39 | 0.5603 | 1069.5 | 284.4 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -14.42 | 222.33 | -32.99 | 107.74 | 0.5558 | 766.0 | 668.7 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -14.82 | 222.26 | -33.06 | 108.41 | 0.5579 | 741.0 | 654.6 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -15.20 | 222.05 | -33.28 | 109.00 | 0.5621 | 579.0 | 469.8 | |
| 2.92 | -36.00 | 1.75 | -36.00 | -16.15 | 221.83 | -33.49 | 110.54 | 0.5682 | 630.8 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.33 | -16.94 | 221.68 | -33.65 | 111.82 | 0.5731 | 724.0 | 506.5 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -15.26 | 221.85 | -33.47 | 109.02 | 0.5650 | 229.0 | 305.6 | |
| 0.00 | 2.48 | 0.00 | 1.48 | -14.59 | 221.93 | -33.39 | 107.88 | 0.5618 | 665.0 | 628.9 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -14.98 | 221.83 | -33.50 | 108.53 | 0.5644 | 713.0 | 511.4 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -15.55 | 221.65 | -33.68 | 109.45 | 0.5687 | -18.0 | -42.2 | |
| 0.00 | 2.92 | 0.00 | 1.73 | -10.15 | 222.10 | -33.22 | 100.00 | 0.5498 | 633.0 | 440.2 | |
| 2.03 | 4.69 | 1.23 | 2.83 | -15.49 | 221.17 | -34.16 | 109.17 | 0.5750 | 663.1 | 494.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -14.30 | 221.23 | -34.09 | 107.15 | 0.5706 | 711.0 | 535.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -14.61 | 221.18 | -34.14 | 107.65 | 0.5721 | 587.0 | 567.0 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -14.39 | 221.11 | -34.22 | 107.25 | 0.5725 | 581.0 | 492.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -15.17 | 220.89 | -34.44 | 108.52 | 0.5778 | 415.0 | 322.2 | |
| 0.00 | 3.89 | 0.00 | 2.36 | -14.92 | 220.82 | -34.50 | 108.08 | 0.5779 | 638.0 | 543.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -11.44 | 221.27 | -34.05 | 102.16 | 0.5636 | 597.0 | 492.2 | |
| 1.86 | 3.45 | 1.13 | 2.10 | -15.61 | 220.42 | -34.90 | 109.09 | 0.5853 | 598.6 | 375.6 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -12.84 | 220.24 | -35.09 | 104.36 | 0.5807 | 452.0 | 370.5 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -14.15 | 219.63 | -35.69 | 106.40 | 0.5919 | 667.0 | 560.3 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -18.17 | 218.69 | -36.63 | 112.59 | 0.6163 | -357.0 | -112.7 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -14.14 | 219.44 | -35.88 | 106.33 | 0.5945 | 510.0 | 424.0 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -15.95 | 218.93 | -36.40 | 109.14 | 0.6062 | -851.0 | -725.2 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -16.72 | 218.29 | -37.04 | 110.15 | 0.6167 | -1045.0 | -899.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -16.56 | 218.28 | -37.04 | 109.91 | 0.6163 | -722.0 | -654.5 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -15.20 | 218.58 | -36.75 | 107.81 | 0.6086 | 579.0 | 417.7 | |
| 6.99 | 20.97 | 4.40 | 13.19 | -17.08 | 218.08 | -37.24 | 110.65 | 0.6204 | -1063.4 | -707.4 | |
| 3.19 | 6.72 | 2.01 | 4.25 | -17.44 | 217.88 | -37.44 | 111.14 | 0.6242 | -863.1 | -647.7 | |
| 0.00 | 1.42 | 0.00 | 0.90 | -18.34 | 217.49 | -37.83 | 112.41 | 0.6320 | -880.0 | -661.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -17.96 | 217.35 | -37.98 | 111.77 | 0.6326 | -753.0 | -636.2 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -17.13 | 217.47 | -37.85 | 110.53 | 0.6284 | -563.0 | -461.9 | |
| 0.00 | 1.50 | 0.00 | 0.97 | -19.06 | 216.89 | -38.43 | 113.27 | 0.6418 | 246.0 | 137.7 | |
| 1.42 | 4.07 | 0.90 | 2.58 | -15.99 | 217.50 | -37.82 | 108.75 | 0.6248 | -1014.2 | -806.7 | |
| 0.88 | 2.74 | 0.58 | 1.81 | -21.39 | 215.99 | -39.33 | 116.37 | 0.6611 | -834.2 | -698.5 | |
| 0.00 | 1.95 | 0.00 | 1.24 | -16.54 | 217.30 | -38.03 | 109.54 | 0.6289 | -762.0 | -604.1 | |
| 3.45 | 5.84 | 2.20 | 3.72 | -16.87 | 217.18 | -38.15 | 110.02 | 0.6314 | -950.4 | -715.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -19.31 | 216.45 | -38.87 | 113.49 | 0.6480 | -754.0 | -536.2 | |
| 0.00 | 1.42 | 0.00 | 0.90 | -16.76 | 216.92 | -38.40 | 109.77 | 0.6343 | -578.0 | -574.0 | |
| 0.00 | 2.12 | 0.00 | 1.38 | -19.01 | 216.17 | -39.15 | 112.94 | 0.6505 | -756.0 | -627.8 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -19.38 | 216.02 | -39.30 | 113.44 | 0.6535 | -659.0 | -560.5 | |
| 0.62 | 4.25 | 0.40 | 2.72 | -16.53 | 216.74 | -38.59 | 109.36 | 0.6360 | -759.9 | -565.3 | |
| 2.21 | 6.81 | 1.42 | 4.38 | -17.05 | 216.57 | -38.75 | 110.10 | 0.6396 | -918.9 | -615.5 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -20.66 | 215.38 | -39.94 | 115.08 | 0.6655 | -856.0 | -685.8 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -19.58 | 215.72 | -39.61 | 113.62 | 0.6579 | -632.0 | -455.0 | |
| 0.00 | 1.86 | 0.00 | 1.22 | -19.30 | 215.76 | -39.57 | 113.22 | 0.6565 | -878.0 | -787.6 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -20.09 | 215.39 | -39.93 | 114.26 | 0.6635 | -854.0 | -717.3 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -17.61 | 216.06 | -39.26 | 110.79 | 0.6475 | -325.0 | -350.1 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -16.72 | 216.29 | -39.04 | 109.52 | 0.6422 | -595.0 | -522.9 | |
| 0.62 | 2.30 | 0.41 | 1.53 | -20.35 | 215.06 | -40.26 | 114.52 | 0.6683 | -836.7 | -691.0 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -21.59 | 214.65 | -40.67 | 116.14 | 0.6773 | -584.0 | -521.2 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -19.89 | 215.16 | -40.16 | 113.88 | 0.6655 | -808.0 | -710.9 | |
| 0.00 | 1.86 | 0.00 | 1.22 | -19.34 | 215.33 | -39.99 | 113.13 | 0.6617 | -678.0 | -576.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -16.40 | 216.08 | -39.24 | 108.97 | 0.6440 | -768.0 | -629.1 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -19.64 | 215.15 | -40.17 | 113.51 | 0.6648 | -797.0 | -681.1 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -21.02 | 214.59 | -40.73 | 115.30 | 0.6761 | -631.0 | -559.5 | |
| 0.53 | 2.03 | 0.35 | 1.35 | -20.06 | 214.86 | -40.47 | 114.01 | 0.6697 | -843.2 | -716.5 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -21.35 | 214.43 | -40.89 | 115.72 | 0.6790 | -543.0 | -450.3 | |
| 0.00 | 1.42 | 0.00 | 0.94 | -19.75 | 214.91 | -40.41 | 113.58 | 0.6681 | -843.0 | -731.7 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -16.20 | 215.76 | -39.56 | 108.56 | 0.6475 | -684.0 | -592.6 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -20.44 | 214.48 | -40.84 | 114.44 | 0.6754 | -673.0 | -566.7 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -16.34 | 215.61 | -39.72 | 108.74 | 0.6498 | -717.0 | -565.5 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -19.85 | 214.54 | -40.78 | 113.60 | 0.6728 | -717.0 | -596.7 | |
| 1.06 | 2.39 | 0.70 | 1.58 | -18.58 | 214.72 | -40.61 | 111.81 | 0.6668 | -814.4 | -671.0 | |
| 0.80 | 3.36 | 0.53 | 2.24 | -18.85 | 214.59 | -40.73 | 112.17 | 0.6691 | -889.2 | -708.2 | |
| 0.35 | 1.50 | 0.24 | 1.01 | -19.80 | 214.26 | -41.06 | 113.44 | 0.6759 | -753.2 | -608.6 | |
| 0.00 | 1.95 | 0.00 | 1.27 | -16.20 | 215.27 | -40.05 | 108.43 | 0.6536 | -565.0 | -496.9 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -20.41 | 213.98 | -41.35 | 114.22 | 0.6812 | -672.0 | -462.1 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -20.13 | 213.94 | -41.38 | 113.80 | 0.6807 | -653.0 | -479.4 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -19.94 | 213.96 | -41.36 | 113.53 | 0.6799 | -648.0 | -579.3 | |
| 0.00 | 10.88 | 0.00 | 7.28 | -19.02 | 214.21 | -41.12 | 112.29 | 0.6742 | -684.0 | -566.4 | |
| 0.00 | 2.57 | 0.00 | 1.74 | -19.98 | 213.65 | -41.68 | 113.49 | 0.6837 | -634.0 | -539.6 | |
| 0.35 | 1.50 | 0.24 | 1.01 | -19.52 | 213.79 | -41.53 | 112.88 | 0.6806 | -759.8 | -673.4 | |
| 0.00 | 2.03 | 0.00 | 1.36 | -18.72 | 214.04 | -41.28 | 111.81 | 0.6753 | -226.0 | -159.7 | |
| 2.74 | 5.04 | 1.86 | 3.41 | -19.66 | 213.53 | -41.79 | 113.00 | 0.6840 | -684.7 | -468.7 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -24.69 | 211.30 | -44.03 | 119.14 | 0.7253 | -590.0 | -456.9 | |
| 0.88 | 8.58 | 0.60 | 5.87 | -19.05 | 212.82 | -42.50 | 111.91 | 0.6906 | -833.8 | -614.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -19.33 | 212.73 | -42.59 | 112.28 | 0.6924 | -706.0 | -571.0 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -19.48 | 212.60 | -42.72 | 112.45 | 0.6944 | -527.0 | -431.5 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -19.48 | 212.25 | -43.08 | 112.35 | 0.6985 | -449.0 | -350.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
