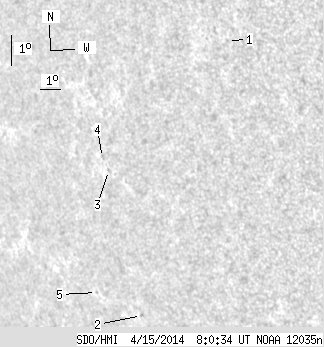

SDO HMI 2014-04-15 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.23 | 0.00 | 4.50 | -19.35 | 200.18 | -54.59 | 109.75 | 0.8192 | 125.0 | -17.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.19 | -14.34 | 207.69 | -47.08 | 104.40 | 0.7349 | 575.0 | 543.0 | |
| 0.00 | 1.33 | 0.00 | 1.16 | -22.37 | 200.01 | -54.77 | 113.40 | 0.8252 | 568.0 | 426.6 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -17.83 | 200.53 | -54.24 | 107.97 | 0.8143 | -448.0 | -397.7 | |
| 0.00 | 1.95 | 0.00 | 1.66 | -17.41 | 200.39 | -54.38 | 107.44 | 0.8153 | -492.0 | -390.7 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -21.47 | 197.93 | -56.84 | 112.00 | 0.8423 | 422.0 | 297.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
