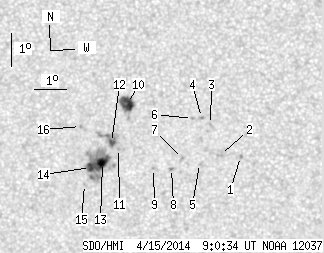

SDO HMI 2014-04-15 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.36 | 105.62 | 13.36 | 53.50 | -9.66 | 242.85 | -11.38 | 110.59 | 0.2090 | 468.5 | 116.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.71 | -9.99 | 246.64 | -7.59 | 120.84 | 0.1522 | 988.0 | 897.7 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -9.92 | 246.02 | -8.20 | 118.59 | 0.1608 | 794.0 | 774.6 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -9.01 | 245.74 | -8.49 | 112.65 | 0.1587 | 938.0 | 630.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -8.80 | 245.47 | -8.76 | 110.80 | 0.1617 | 985.0 | 760.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.18 | 245.37 | -8.86 | 118.21 | 0.1728 | 626.0 | 640.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.83 | 245.19 | -9.04 | 110.39 | 0.1664 | 859.0 | 571.4 | |
| 0.00 | 2.03 | 0.00 | 1.02 | -10.03 | 244.85 | -9.38 | 116.11 | 0.1796 | 895.0 | 534.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -10.32 | 244.50 | -9.73 | 116.78 | 0.1871 | 783.0 | 691.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.31 | 243.94 | -10.29 | 115.52 | 0.1956 | 821.0 | 614.6 | |
| 12.65 | 19.02 | 6.39 | 9.61 | -8.34 | 243.20 | -11.03 | 104.73 | 0.1967 | 1124.9 | 675.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.69 | 242.87 | -11.36 | 110.71 | 0.2084 | -830.0 | -666.4 | |
| 2.30 | 16.63 | 1.17 | 8.43 | -9.50 | 242.66 | -11.57 | 109.55 | 0.2108 | -1075.1 | -52.8 | |
| 7.34 | 53.61 | 3.73 | 27.23 | -10.10 | 242.36 | -11.87 | 111.73 | 0.2190 | -1206.9 | -87.9 | |
| 4.07 | -13.00 | 2.07 | -13.00 | -10.24 | 241.98 | -12.25 | 111.76 | 0.2258 | 963.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.75 | 241.77 | -12.46 | 113.52 | 0.2322 | 734.0 | 578.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.00 | 241.71 | -12.51 | 106.11 | 0.2238 | 865.0 | 762.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
