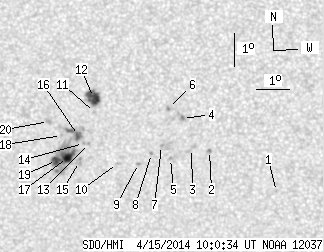

SDO HMI 2014-04-15 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.25 | 107.65 | 13.77 | 54.40 | -9.70 | 243.01 | -10.67 | 112.15 | 0.1981 | 352.4 | 61.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.26 | 248.77 | -4.91 | 139.77 | 0.1306 | 835.0 | 575.5 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.00 | 246.74 | -6.94 | 123.11 | 0.1428 | 999.0 | 831.5 | |
| 0.00 | 4.78 | 0.00 | 2.39 | -9.93 | 246.18 | -7.50 | 120.80 | 0.1503 | 710.0 | 702.4 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -9.02 | 245.93 | -7.75 | 114.55 | 0.1471 | 837.0 | 682.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.22 | 245.53 | -8.15 | 120.39 | 0.1625 | 872.0 | 629.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -8.71 | 245.51 | -8.18 | 111.58 | 0.1519 | 1043.0 | 826.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.82 | 245.26 | -8.42 | 117.47 | 0.1633 | -912.0 | -757.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.06 | 244.95 | -8.73 | 117.91 | 0.1700 | 908.0 | 662.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -10.36 | 244.54 | -9.14 | 118.37 | 0.1785 | 868.0 | 676.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.34 | 243.89 | -9.80 | 116.77 | 0.1883 | 792.0 | 523.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.80 | 243.22 | -10.46 | 107.81 | 0.1893 | 745.0 | 544.5 | |
| 12.74 | 17.52 | 6.42 | 8.83 | -8.34 | 243.20 | -10.48 | 105.46 | 0.1875 | 1122.1 | 662.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.73 | 243.01 | -10.67 | 112.04 | 0.1979 | -949.0 | -739.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.72 | 242.85 | -10.83 | 111.76 | 0.2003 | -869.0 | -779.1 | |
| 0.00 | 4.51 | 0.00 | 2.28 | -10.26 | 242.71 | -10.97 | 113.99 | 0.2060 | -738.0 | -675.5 | |
| 2.65 | 61.39 | 1.34 | 31.10 | -9.48 | 242.70 | -10.98 | 110.36 | 0.2012 | -1089.0 | -161.0 | |
| 6.46 | -16.00 | 3.27 | -16.00 | -10.13 | 242.34 | -11.34 | 112.77 | 0.2109 | -1232.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.47 | 242.18 | -11.51 | 109.51 | 0.2097 | 675.0 | 519.3 | |
| 5.40 | -16.00 | 2.74 | -16.00 | -10.22 | 241.99 | -11.69 | 112.56 | 0.2169 | 728.0 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -9.04 | 241.79 | -11.89 | 107.03 | 0.2139 | 968.0 | 795.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
