SDO HMI 2014-04-15 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.95 | 0.00 | 3.99 | -16.06 | 200.87 | -51.71 | 106.13 | 0.7810 | 164.8 | 128.6 | |
|
previous
or next observation for the same group /

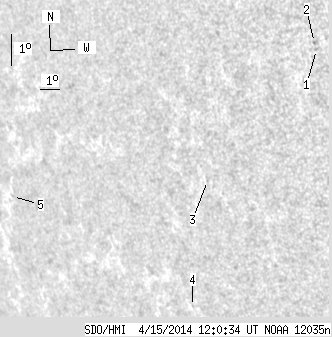

back to the solar disc SDO HMI 2014-04-15 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.88 | -14.16 | 207.05 | -45.54 | 104.39 | 0.7167 | 673.0 | 578.9 | |
| 0.00 | 1.50 | 0.00 | 1.06 | -13.94 | 207.02 | -45.57 | 104.08 | 0.7168 | 686.0 | 583.4 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -17.75 | 200.67 | -51.92 | 108.19 | 0.7913 | -491.0 | -396.8 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -21.52 | 198.04 | -54.54 | 112.42 | 0.8219 | 381.0 | 292.3 | |
| 0.00 | 0.88 | 0.00 | 0.96 | -17.33 | 189.29 | -63.30 | 106.64 | 0.8919 | -425.0 | -357.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
