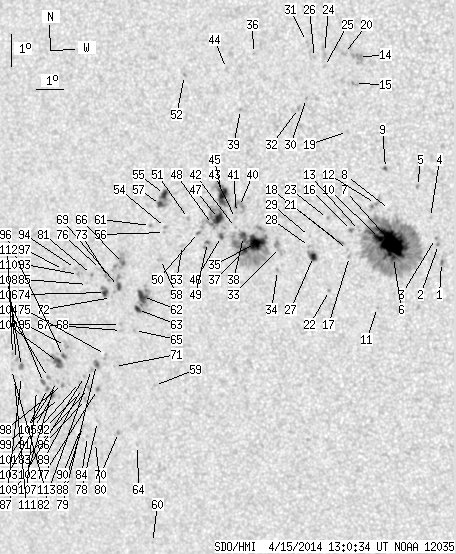

SDO HMI 2014-04-15 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.85 | 690.77 | 74.55 | 398.67 | -16.02 | 222.77 | -29.26 | 112.52 | 0.5090 | 167.1 | 153.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 1.68 | 0.24 | 0.92 | -16.68 | 228.83 | -23.21 | 117.94 | 0.4291 | 828.2 | 675.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -16.13 | 228.80 | -23.24 | 116.72 | 0.4261 | -621.0 | -525.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.94 | 228.72 | -23.32 | 116.24 | 0.4261 | 725.0 | 608.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.30 | 228.63 | -23.41 | 114.74 | 0.4237 | -734.0 | -562.6 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -14.34 | 228.30 | -23.74 | 112.34 | 0.4234 | -916.0 | -752.1 | |
| 3.18 | 259.21 | 1.76 | 143.57 | -16.47 | 227.21 | -24.83 | 116.14 | 0.4504 | 1057.2 | 399.2 | |
| 39.35 | -6.00 | 21.78 | -6.00 | -16.04 | 227.23 | -24.80 | 115.26 | 0.4477 | 1339.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -15.00 | 227.26 | -24.77 | 113.07 | 0.4417 | 692.0 | 548.1 | |
| 0.53 | 1.77 | 0.29 | 0.97 | -13.75 | 227.28 | -24.76 | 110.35 | 0.4357 | -770.0 | -691.9 | |
| 4.78 | -6.00 | 2.65 | -6.00 | -15.87 | 226.81 | -25.23 | 114.59 | 0.4527 | 973.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.97 | 226.43 | -25.61 | 118.56 | 0.4700 | -612.0 | -452.7 | |
| 0.00 | 6.28 | 0.00 | 3.47 | -14.80 | 226.81 | -25.23 | 112.32 | 0.4473 | 693.0 | 608.1 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -15.59 | 226.15 | -25.89 | 113.56 | 0.4606 | 496.0 | 403.7 | |
| 0.00 | 8.67 | 0.00 | 4.76 | -10.36 | 226.70 | -25.33 | 102.40 | 0.4328 | 1137.0 | 837.0 | |
| 0.00 | 2.65 | 0.00 | 1.46 | -11.13 | 226.50 | -25.54 | 104.09 | 0.4380 | 713.0 | 650.1 | |
| 0.00 | 2.30 | 0.00 | 1.28 | -15.58 | 225.87 | -26.16 | 113.35 | 0.4645 | 814.0 | 628.8 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -16.37 | 225.69 | -26.34 | 114.83 | 0.4711 | 475.0 | 327.8 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -16.16 | 225.65 | -26.38 | 114.37 | 0.4705 | 455.0 | 365.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -12.57 | 226.11 | -25.93 | 107.11 | 0.4484 | 598.0 | 458.1 | |
| 0.00 | 2.39 | 0.00 | 1.32 | -10.22 | 226.24 | -25.79 | 101.93 | 0.4395 | 768.0 | 730.0 | |
| 0.00 | 3.10 | 0.00 | 1.74 | -15.93 | 225.41 | -26.63 | 113.75 | 0.4728 | 792.0 | 592.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -17.38 | 224.83 | -27.21 | 116.22 | 0.4883 | -688.0 | -637.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.18 | 225.09 | -26.94 | 112.04 | 0.4737 | 867.0 | 662.2 | |
| 0.00 | 5.31 | 0.00 | 2.94 | -10.16 | 225.57 | -26.47 | 101.58 | 0.4497 | 761.0 | 608.5 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -10.58 | 225.53 | -26.51 | 102.50 | 0.4513 | 743.0 | 598.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.29 | 225.21 | -26.82 | 101.77 | 0.4554 | 765.0 | 601.3 | |
| 4.07 | 7.61 | 2.31 | 4.31 | -16.32 | 224.43 | -27.60 | 113.89 | 0.4884 | -796.5 | -382.8 | |
| 0.00 | 1.68 | 0.00 | 0.95 | -16.01 | 224.34 | -27.70 | 113.23 | 0.4882 | 584.0 | 470.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -15.70 | 224.38 | -27.65 | 112.66 | 0.4861 | 684.0 | 479.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -11.52 | 224.81 | -27.22 | 104.28 | 0.4644 | 767.0 | 607.7 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -9.80 | 224.98 | -27.05 | 100.63 | 0.4579 | 610.0 | 541.9 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -11.80 | 224.51 | -27.53 | 104.77 | 0.4698 | 716.0 | 601.4 | |
| 0.00 | 9.11 | 0.00 | 5.21 | -15.99 | 223.27 | -28.76 | 112.57 | 0.5029 | 530.0 | 646.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -16.69 | 223.09 | -28.95 | 113.79 | 0.5087 | 716.0 | 594.7 | |
| 16.98 | 173.95 | 9.79 | 100.80 | -15.83 | 222.44 | -29.60 | 111.81 | 0.5139 | 1095.8 | 344.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.08 | 223.12 | -28.92 | 100.75 | 0.4865 | 695.0 | 493.1 | |
| 2.21 | -35.00 | 1.28 | -35.00 | -16.02 | 222.01 | -30.03 | 111.95 | 0.5206 | 780.4 | 999999 | |
| 4.24 | -35.00 | 2.46 | -35.00 | -15.59 | 222.05 | -29.99 | 111.17 | 0.5184 | 787.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -11.74 | 222.48 | -29.55 | 103.93 | 0.4996 | 803.0 | 702.0 | |
| 0.00 | 8.49 | 0.00 | 4.90 | -14.67 | 222.05 | -29.99 | 109.45 | 0.5148 | 831.0 | 776.8 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.85 | 221.91 | -30.13 | 109.72 | 0.5174 | 769.0 | 655.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -15.30 | 221.80 | -30.23 | 110.52 | 0.5206 | 574.0 | 452.6 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -15.03 | 221.85 | -30.19 | 110.03 | 0.5190 | 738.0 | 565.1 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -10.48 | 222.13 | -29.91 | 101.33 | 0.5020 | 762.0 | 577.5 | |
| 10.70 | -35.00 | 6.20 | -35.00 | -14.31 | 221.49 | -30.55 | 108.52 | 0.5214 | 902.3 | 999999 | |
| 1.41 | -35.00 | 0.82 | -35.00 | -15.55 | 221.25 | -30.78 | 110.72 | 0.5292 | 655.0 | 999999 | |
| 6.99 | -35.00 | 4.07 | -35.00 | -15.00 | 221.24 | -30.80 | 109.69 | 0.5274 | 917.3 | 999999 | |
| 0.27 | -35.00 | 0.15 | -35.00 | -15.17 | 220.99 | -31.05 | 109.90 | 0.5314 | 554.0 | 999999 | |
| 0.62 | 4.33 | 0.36 | 2.54 | -15.71 | 220.72 | -31.32 | 110.75 | 0.5372 | 641.0 | 388.3 | |
| 0.00 | 1.77 | 0.00 | 1.04 | -15.39 | 220.44 | -31.59 | 110.05 | 0.5398 | 513.0 | 438.6 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -14.95 | 220.15 | -31.89 | 109.13 | 0.5423 | -250.0 | -211.7 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -10.62 | 220.62 | -31.42 | 101.25 | 0.5245 | 651.0 | 587.8 | |
| 0.00 | 1.95 | 0.00 | 1.15 | -15.76 | 219.79 | -32.25 | 110.42 | 0.5501 | -227.0 | -164.7 | |
| 0.00 | 1.41 | 0.00 | 0.84 | -15.18 | 219.26 | -32.78 | 109.18 | 0.5553 | -869.0 | -685.1 | |
| 3.89 | 14.95 | 2.30 | 8.86 | -14.17 | 219.39 | -32.64 | 107.45 | 0.5503 | -951.8 | -577.0 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -15.33 | 219.20 | -32.84 | 109.42 | 0.5567 | -715.0 | -595.7 | |
| 2.83 | -55.00 | 1.68 | -55.00 | -14.47 | 219.20 | -32.84 | 107.90 | 0.5539 | -867.7 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.64 | -16.14 | 218.90 | -33.14 | 110.71 | 0.5636 | -283.0 | -368.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -19.99 | 217.82 | -34.21 | 116.61 | 0.5932 | 649.0 | 562.5 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -24.88 | 216.32 | -35.72 | 123.25 | 0.6356 | -585.0 | -504.3 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -15.09 | 218.72 | -33.32 | 108.81 | 0.5624 | 616.0 | 481.9 | |
| 6.63 | 26.53 | 4.02 | 16.10 | -17.23 | 218.00 | -34.04 | 112.18 | 0.5795 | -1022.9 | -726.2 | |
| 2.39 | -62.00 | 1.45 | -62.00 | -17.62 | 217.72 | -34.31 | 112.70 | 0.5846 | -736.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -21.81 | 216.67 | -35.37 | 118.86 | 0.6159 | -570.0 | -501.1 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -18.26 | 217.46 | -34.57 | 113.63 | 0.5904 | -676.0 | -545.7 | |
| 0.80 | 11.85 | 0.48 | 7.22 | -16.19 | 217.49 | -34.55 | 110.22 | 0.5826 | -1040.6 | -766.2 | |
| 0.00 | 1.95 | 0.00 | 1.20 | -18.23 | 216.97 | -35.07 | 113.37 | 0.5967 | -570.0 | -484.6 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -18.04 | 216.97 | -35.06 | 113.07 | 0.5959 | -645.0 | -597.6 | |
| 2.21 | 7.52 | 1.35 | 4.60 | -16.88 | 217.15 | -34.88 | 111.24 | 0.5893 | -984.6 | -775.4 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -21.36 | 216.04 | -36.00 | 117.86 | 0.6215 | -806.0 | -755.5 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -19.32 | 216.43 | -35.61 | 114.87 | 0.6078 | -743.0 | -649.9 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -17.20 | 216.82 | -35.22 | 111.63 | 0.5949 | -655.0 | -548.9 | |
| 0.00 | 5.39 | 0.00 | 3.31 | -16.58 | 216.83 | -35.20 | 110.63 | 0.5926 | -651.0 | -685.4 | |
| 2.48 | 5.84 | 1.53 | 3.60 | -17.03 | 216.62 | -35.42 | 111.28 | 0.5969 | -787.3 | -628.2 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -18.93 | 216.17 | -35.86 | 114.15 | 0.6095 | -827.0 | -705.6 | |
| 0.00 | 2.92 | 0.00 | 1.80 | -16.32 | 216.58 | -35.46 | 110.10 | 0.5950 | -601.0 | -500.0 | |
| 0.00 | 1.95 | 0.00 | 1.23 | -19.99 | 215.58 | -36.46 | 115.54 | 0.6211 | -896.0 | -756.4 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -20.98 | 215.30 | -36.73 | 116.92 | 0.6286 | -704.0 | -578.5 | |
| 1.68 | 3.98 | 1.05 | 2.50 | -19.22 | 215.75 | -36.29 | 114.41 | 0.6160 | -874.3 | -710.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -21.62 | 215.03 | -37.00 | 117.77 | 0.6346 | -671.0 | -597.5 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -16.45 | 216.20 | -35.83 | 110.18 | 0.6004 | -774.0 | -611.1 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -19.36 | 215.51 | -36.53 | 114.53 | 0.6195 | -747.0 | -688.3 | |
| 0.00 | 2.12 | 0.00 | 1.34 | -19.94 | 215.23 | -36.80 | 115.31 | 0.6252 | -734.0 | -628.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -21.42 | 214.77 | -37.27 | 117.34 | 0.6369 | -553.0 | -493.5 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -16.75 | 215.98 | -36.05 | 110.58 | 0.6042 | -394.0 | -453.8 | |
| 0.00 | 1.77 | 0.00 | 1.12 | -20.27 | 215.02 | -37.01 | 115.72 | 0.6291 | -765.0 | -704.5 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -19.56 | 215.18 | -36.86 | 114.70 | 0.6244 | -711.0 | -610.9 | |
| 0.00 | 1.41 | 0.00 | 0.91 | -21.10 | 214.66 | -37.37 | 116.81 | 0.6368 | -697.0 | -532.9 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -19.92 | 214.96 | -37.08 | 115.16 | 0.6285 | -675.0 | -577.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -21.19 | 214.55 | -37.48 | 116.90 | 0.6385 | -528.0 | -463.6 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -19.73 | 214.93 | -37.11 | 114.86 | 0.6281 | -838.0 | -611.0 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -20.04 | 214.84 | -37.19 | 115.30 | 0.6304 | -655.0 | -499.5 | |
| 0.00 | 1.95 | 0.00 | 1.21 | -16.43 | 215.70 | -36.33 | 109.96 | 0.6068 | -725.0 | -709.0 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -16.24 | 215.63 | -36.41 | 109.63 | 0.6072 | -662.0 | -601.0 | |
| 0.00 | 3.54 | 0.00 | 2.24 | -18.56 | 214.68 | -37.36 | 112.96 | 0.6269 | -685.0 | -635.7 | |
| 1.06 | 2.21 | 0.68 | 1.41 | -18.90 | 214.51 | -37.52 | 113.41 | 0.6302 | -820.0 | -717.5 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -16.24 | 215.16 | -36.88 | 109.48 | 0.6134 | -698.0 | -556.7 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -19.76 | 214.24 | -37.80 | 114.61 | 0.6367 | -874.0 | -747.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -20.15 | 214.00 | -38.03 | 115.10 | 0.6410 | -599.0 | -526.0 | |
| 5.31 | 10.35 | 3.39 | 6.62 | -19.07 | 214.26 | -37.77 | 113.57 | 0.6339 | -794.7 | -511.8 | |
| 0.00 | 1.68 | 0.00 | 1.08 | -19.65 | 214.06 | -37.97 | 114.38 | 0.6384 | -791.0 | -587.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -19.77 | 213.91 | -38.13 | 114.49 | 0.6408 | -678.0 | -605.3 | |
| 1.15 | 2.65 | 0.74 | 1.71 | -20.07 | 213.74 | -38.30 | 114.88 | 0.6439 | -649.8 | -564.7 | |
| 0.00 | 1.86 | 0.00 | 1.20 | -19.51 | 213.74 | -38.30 | 114.03 | 0.6419 | -734.0 | -562.5 | |
| 0.53 | 4.69 | 0.34 | 3.03 | -19.84 | 213.60 | -38.43 | 114.48 | 0.6448 | -656.7 | -487.8 | |
| 0.97 | -105.00 | 0.63 | -105.00 | -19.65 | 213.49 | -38.54 | 114.15 | 0.6454 | -620.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -19.88 | 213.14 | -38.90 | 114.36 | 0.6505 | -345.0 | -275.4 | |
| 1.15 | 3.10 | 0.75 | 2.02 | -19.10 | 212.75 | -39.29 | 113.06 | 0.6526 | -803.8 | -668.5 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -19.41 | 212.66 | -39.38 | 113.48 | 0.6547 | -596.0 | -454.7 | |
| 0.00 | 1.77 | 0.00 | 1.15 | -18.88 | 212.60 | -39.43 | 112.67 | 0.6536 | -925.0 | -726.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -19.49 | 212.34 | -39.69 | 113.48 | 0.6587 | -476.0 | -458.0 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -18.71 | 212.49 | -39.55 | 112.39 | 0.6545 | -558.0 | -489.7 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -19.17 | 212.31 | -39.72 | 113.00 | 0.6581 | -527.0 | -408.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
