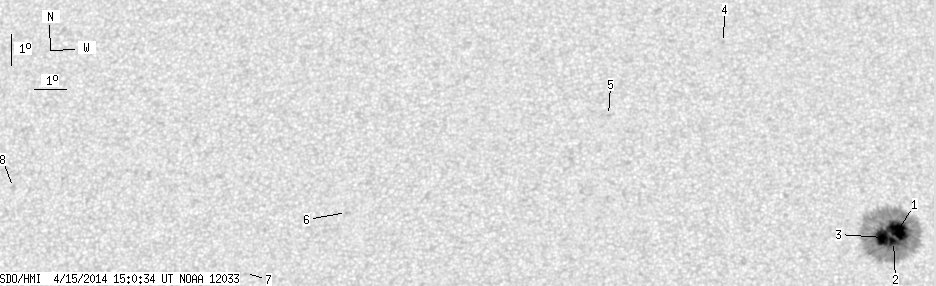

SDO HMI 2014-04-15 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.64 | 267.10 | 27.52 | 142.37 | 12.18 | 262.97 | 12.04 | 326.28 | 0.3710 | -1072.9 | -344.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.21 | 259.15 | 15.05 | 138.10 | 12.23 | 263.69 | 12.75 | 324.59 | 0.3739 | -1275.6 | -371.0 | |
| 6.37 | -1.00 | 3.39 | -1.00 | 11.88 | 263.54 | 12.61 | 324.34 | 0.3679 | -1405.8 | 999999 | |
| 17.06 | -1.00 | 9.08 | -1.00 | 12.00 | 263.20 | 12.27 | 325.27 | 0.3663 | -1461.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 18.19 | 258.47 | 7.53 | 342.80 | 0.4228 | -604.0 | -519.2 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 15.78 | 254.76 | 3.82 | 350.01 | 0.3711 | 644.0 | 513.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.69 | 246.62 | -4.32 | 13.20 | 0.3231 | 727.0 | 473.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 10.81 | 243.54 | -7.40 | 24.21 | 0.3097 | 908.0 | 682.6 | |
| 0.00 | 3.09 | 0.00 | 1.68 | 13.68 | 236.14 | -14.80 | 37.24 | 0.4119 | 673.0 | 465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
