SDO HMI 2014-04-15 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.84 | 761.67 | 74.90 | 433.12 | -15.97 | 222.73 | -27.65 | 113.41 | 0.4865 | 166.3 | 151.3 | |
|
previous
or next observation for the same group /

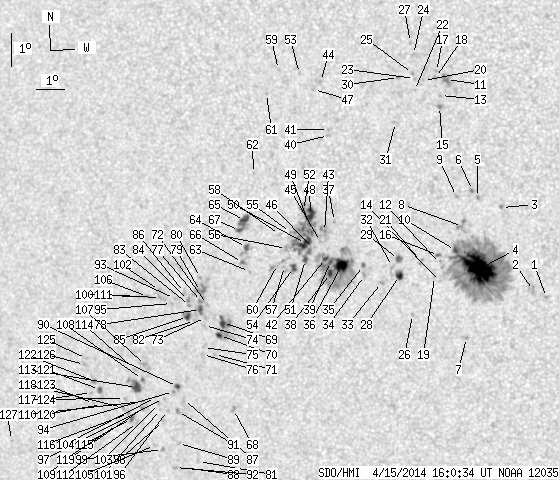

back to the solar disc SDO HMI 2014-04-15 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.67 | -17.04 | 229.41 | -20.97 | 120.91 | 0.4006 | 970.0 | 755.4 | |
| 0.00 | 3.09 | 0.00 | 1.67 | -16.81 | 229.00 | -21.38 | 119.96 | 0.4046 | 736.0 | 621.0 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -14.24 | 228.21 | -22.17 | 113.32 | 0.4000 | -979.0 | -829.2 | |
| 52.61 | 282.66 | 28.75 | 154.50 | -16.07 | 227.26 | -23.12 | 116.68 | 0.4241 | 1383.7 | 413.8 | |
| 0.00 | 1.59 | 0.00 | 0.86 | -13.91 | 227.44 | -22.94 | 111.94 | 0.4096 | -953.0 | -800.8 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -13.69 | 227.30 | -23.09 | 111.32 | 0.4107 | -888.0 | -779.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -18.16 | 226.53 | -23.85 | 120.45 | 0.4476 | -624.0 | -490.4 | |
| 0.00 | 7.78 | 0.00 | 4.25 | -14.77 | 226.84 | -23.54 | 113.46 | 0.4228 | 506.0 | 576.8 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -13.85 | 226.74 | -23.64 | 111.30 | 0.4197 | -784.0 | -633.5 | |
| 2.03 | -4.00 | 1.12 | -4.00 | -15.49 | 226.52 | -23.87 | 114.80 | 0.4314 | 622.3 | 999999 | |
| 0.00 | 8.66 | 0.00 | 4.69 | -10.30 | 226.74 | -23.64 | 102.91 | 0.4065 | 1160.0 | 864.7 | |
| 0.00 | 1.77 | 0.00 | 0.98 | -15.86 | 225.95 | -24.43 | 115.18 | 0.4414 | 479.0 | 512.4 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -10.77 | 226.50 | -23.88 | 103.95 | 0.4116 | 871.0 | 699.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -16.41 | 225.88 | -24.50 | 116.28 | 0.4456 | 215.0 | 250.2 | |
| 0.00 | 2.03 | 0.00 | 1.11 | -11.10 | 226.44 | -23.94 | 104.72 | 0.4135 | 1067.0 | 844.3 | |
| 0.62 | 2.21 | 0.34 | 1.22 | -15.62 | 225.92 | -24.47 | 114.62 | 0.4406 | 708.6 | 524.0 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -10.05 | 226.43 | -23.96 | 102.17 | 0.4107 | 827.0 | 657.3 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -10.23 | 226.38 | -24.00 | 102.59 | 0.4119 | 951.0 | 738.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.25 | 225.69 | -24.69 | 115.80 | 0.4473 | 336.0 | 309.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -10.30 | 225.97 | -24.41 | 102.61 | 0.4184 | 746.0 | 630.6 | |
| 0.00 | 2.48 | 0.00 | 1.37 | -15.78 | 225.31 | -25.07 | 114.51 | 0.4501 | 741.0 | 661.0 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.59 | 225.65 | -24.74 | 103.16 | 0.4242 | 796.0 | 595.2 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -10.23 | 225.68 | -24.71 | 102.33 | 0.4228 | 842.0 | 640.1 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -9.50 | 225.70 | -24.68 | 100.63 | 0.4208 | 753.0 | 521.1 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -10.07 | 225.62 | -24.76 | 101.95 | 0.4233 | 802.0 | 641.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -17.38 | 224.77 | -25.62 | 117.39 | 0.4666 | -739.0 | -552.1 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -9.14 | 225.63 | -24.76 | 99.74 | 0.4213 | 766.0 | 567.0 | |
| 3.36 | 6.28 | 1.88 | 3.51 | -16.17 | 224.49 | -25.89 | 114.74 | 0.4637 | -783.7 | -388.3 | |
| 1.33 | 3.98 | 0.74 | 2.22 | -15.68 | 224.53 | -25.86 | 113.76 | 0.4607 | 918.4 | 767.2 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -10.17 | 225.14 | -25.24 | 102.02 | 0.4310 | 851.0 | 718.0 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -11.53 | 224.91 | -25.47 | 105.01 | 0.4381 | 432.0 | 402.0 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -15.89 | 224.29 | -26.10 | 114.02 | 0.4651 | 628.0 | 444.2 | |
| 0.00 | 2.12 | 0.00 | 1.19 | -16.36 | 223.84 | -26.55 | 114.67 | 0.4739 | 867.0 | 701.8 | |
| 0.00 | 1.68 | 0.00 | 0.95 | -16.12 | 223.27 | -27.11 | 113.82 | 0.4805 | 740.0 | 636.2 | |
| 0.53 | 1.68 | 0.30 | 0.95 | -15.81 | 223.28 | -27.10 | 113.22 | 0.4789 | 1057.5 | 896.1 | |
| 11.32 | 103.62 | 6.42 | 58.93 | -15.78 | 222.51 | -27.87 | 112.68 | 0.4896 | 1216.2 | 393.0 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -14.43 | 222.46 | -27.92 | 109.98 | 0.4845 | 637.0 | 597.9 | |
| 2.48 | -36.00 | 1.41 | -36.00 | -16.00 | 222.09 | -28.30 | 112.87 | 0.4965 | 792.9 | 999999 | |
| 2.30 | -36.00 | 1.31 | -36.00 | -15.64 | 222.15 | -28.24 | 112.20 | 0.4941 | 871.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -11.82 | 222.58 | -27.81 | 104.70 | 0.4740 | 787.0 | 620.1 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.64 | 222.60 | -27.79 | 104.33 | 0.4732 | 769.0 | 707.6 | |
| 1.86 | -36.00 | 1.06 | -36.00 | -15.54 | 221.98 | -28.40 | 111.91 | 0.4959 | 840.6 | 999999 | |
| 0.00 | 7.69 | 0.00 | 4.37 | -14.72 | 222.07 | -28.32 | 110.35 | 0.4913 | 1041.0 | 859.0 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -10.18 | 222.47 | -27.91 | 101.22 | 0.4717 | 57.0 | 85.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -15.01 | 221.88 | -28.50 | 110.84 | 0.4951 | 738.0 | 631.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -15.22 | 221.61 | -28.78 | 111.08 | 0.4999 | 537.0 | 494.4 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -10.41 | 222.21 | -28.18 | 101.63 | 0.4761 | 533.0 | 458.1 | |
| 7.96 | 83.28 | 4.53 | 47.62 | -14.18 | 221.65 | -28.73 | 109.08 | 0.4952 | 991.6 | 412.5 | |
| 0.88 | -48.00 | 0.50 | -48.00 | -14.48 | 221.57 | -28.81 | 109.63 | 0.4975 | 909.7 | 999999 | |
| 7.60 | -48.00 | 4.35 | -48.00 | -15.05 | 221.35 | -29.04 | 110.63 | 0.5029 | 936.5 | 999999 | |
| 1.86 | -48.00 | 1.06 | -48.00 | -15.54 | 221.27 | -29.11 | 111.52 | 0.5059 | 727.5 | 999999 | |
| 0.88 | -48.00 | 0.50 | -48.00 | -14.05 | 221.42 | -28.96 | 108.71 | 0.4980 | 552.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -9.90 | 221.77 | -28.61 | 100.47 | 0.4817 | 664.0 | 550.0 | |
| 2.48 | 6.98 | 1.43 | 4.03 | -15.76 | 220.80 | -29.58 | 111.70 | 0.5134 | 680.5 | 223.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -14.69 | 220.86 | -29.52 | 109.70 | 0.5083 | 543.0 | 385.3 | |
| 0.00 | 3.01 | 0.00 | 1.73 | -15.17 | 220.65 | -29.74 | 110.51 | 0.5132 | 67.0 | 45.6 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -15.71 | 220.49 | -29.90 | 111.45 | 0.5176 | -223.0 | -217.9 | |
| 0.00 | 1.59 | 0.00 | 0.92 | -14.73 | 220.46 | -29.92 | 109.59 | 0.5141 | -217.0 | -192.6 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -9.75 | 221.05 | -29.33 | 100.00 | 0.4922 | 673.0 | 424.8 | |
| 0.00 | 4.95 | 0.00 | 2.87 | -15.64 | 220.25 | -30.14 | 111.19 | 0.5206 | 184.0 | 303.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.45 | 220.56 | -29.83 | 101.29 | 0.5008 | 574.0 | 410.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -12.84 | 219.80 | -30.58 | 105.73 | 0.5174 | 603.0 | 482.6 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -15.80 | 219.20 | -31.18 | 110.99 | 0.5357 | -721.0 | -588.3 | |
| 1.59 | 7.60 | 0.93 | 4.45 | -15.07 | 219.21 | -31.17 | 109.66 | 0.5328 | -1065.6 | -734.4 | |
| 5.66 | 15.74 | 3.30 | 9.18 | -14.25 | 219.27 | -31.11 | 108.17 | 0.5292 | -1011.6 | -663.5 | |
| 0.53 | 2.30 | 0.31 | 1.35 | -15.52 | 218.99 | -31.39 | 110.37 | 0.5375 | -934.8 | -804.2 | |
| 1.59 | -65.00 | 0.93 | -65.00 | -14.54 | 219.05 | -31.34 | 108.62 | 0.5333 | -831.9 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.33 | -20.00 | 217.75 | -32.64 | 117.48 | 0.5734 | 704.0 | 584.9 | |
| 4.07 | 23.96 | 2.43 | 14.30 | -17.31 | 217.92 | -32.46 | 113.04 | 0.5590 | -1062.2 | -697.4 | |
| 2.21 | -69.00 | 1.32 | -69.00 | -17.70 | 217.73 | -32.66 | 113.61 | 0.5632 | -823.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -18.27 | 217.42 | -32.97 | 114.43 | 0.5697 | -775.0 | -543.9 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -16.73 | 217.47 | -32.91 | 111.83 | 0.5627 | -684.0 | -605.8 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -17.12 | 217.32 | -33.06 | 112.43 | 0.5663 | -783.0 | -667.4 | |
| 0.00 | 1.77 | 0.00 | 1.06 | -17.37 | 217.23 | -33.15 | 112.81 | 0.5684 | -692.0 | -562.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -18.04 | 217.05 | -33.33 | 113.85 | 0.5735 | -697.0 | -569.3 | |
| 0.00 | 1.95 | 0.00 | 1.18 | -18.25 | 216.97 | -33.42 | 114.17 | 0.5754 | -707.0 | -504.6 | |
| 0.00 | 2.65 | 0.00 | 1.59 | -16.63 | 217.27 | -33.12 | 111.56 | 0.5650 | -975.0 | -820.4 | |
| 2.21 | 7.43 | 1.33 | 4.46 | -16.87 | 217.18 | -33.20 | 111.94 | 0.5671 | -1059.2 | -725.4 | |
| 0.00 | 10.70 | 0.00 | 6.40 | -16.32 | 217.29 | -33.09 | 111.04 | 0.5636 | -1011.0 | -847.1 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -15.89 | 217.37 | -33.01 | 110.34 | 0.5610 | -791.0 | -653.8 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -21.54 | 216.01 | -34.38 | 118.98 | 0.6026 | -529.0 | -471.9 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -17.19 | 216.89 | -33.49 | 112.36 | 0.5722 | -737.0 | -663.8 | |
| 0.00 | 1.50 | 0.00 | 0.91 | -16.73 | 216.80 | -33.59 | 111.53 | 0.5717 | -878.0 | -724.1 | |
| 0.00 | 2.12 | 0.00 | 1.28 | -16.57 | 216.79 | -33.59 | 111.26 | 0.5712 | -795.0 | -701.1 | |
| 2.65 | 6.28 | 1.60 | 3.79 | -17.06 | 216.65 | -33.73 | 112.02 | 0.5748 | -822.4 | -590.6 | |
| 0.00 | 2.65 | 0.00 | 1.60 | -16.32 | 216.69 | -33.69 | 110.79 | 0.5717 | -695.0 | -577.8 | |
| 0.00 | 2.74 | 0.00 | 1.69 | -19.59 | 215.93 | -34.46 | 115.86 | 0.5946 | -694.0 | -605.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -21.69 | 215.33 | -35.05 | 118.86 | 0.6116 | -554.0 | -584.0 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -20.94 | 215.38 | -35.00 | 117.71 | 0.6074 | -762.0 | -619.5 | |
| 1.77 | 3.09 | 1.09 | 1.90 | -19.18 | 215.79 | -34.59 | 115.13 | 0.5945 | -900.8 | -773.1 | |
| 0.00 | 2.92 | 0.00 | 1.80 | -19.95 | 215.60 | -34.78 | 116.27 | 0.6002 | -858.0 | -701.0 | |
| 0.00 | 2.21 | 0.00 | 1.39 | -21.68 | 215.06 | -35.33 | 118.69 | 0.6148 | -709.0 | -608.3 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -16.48 | 216.28 | -34.11 | 110.90 | 0.5777 | -849.0 | -798.3 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -19.33 | 215.60 | -34.78 | 115.27 | 0.5975 | -835.0 | -749.3 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -16.63 | 216.13 | -34.25 | 111.08 | 0.5801 | -734.0 | -609.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -19.90 | 215.22 | -35.16 | 116.00 | 0.6047 | -780.0 | -687.1 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -19.52 | 215.16 | -35.22 | 115.37 | 0.6038 | -807.0 | -648.7 | |
| 0.00 | 1.59 | 0.00 | 0.99 | -20.20 | 214.99 | -35.40 | 116.36 | 0.6089 | -710.0 | -517.3 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -21.09 | 214.71 | -35.68 | 117.61 | 0.6163 | -751.0 | -618.1 | |
| 0.00 | 4.24 | 0.00 | 2.59 | -16.42 | 215.76 | -34.63 | 110.59 | 0.5844 | -869.0 | -708.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -19.85 | 214.96 | -35.42 | 115.80 | 0.6078 | -603.0 | -588.5 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -16.21 | 215.76 | -34.62 | 110.23 | 0.5836 | -734.0 | -613.9 | |
| 0.00 | 1.77 | 0.00 | 1.10 | -19.67 | 214.97 | -35.41 | 115.51 | 0.6069 | -799.0 | -654.0 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -19.47 | 214.86 | -35.52 | 115.16 | 0.6074 | -764.0 | -669.9 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -20.95 | 214.43 | -35.96 | 117.26 | 0.6191 | -553.0 | -434.9 | |
| 0.00 | 3.27 | 0.00 | 2.00 | -16.37 | 215.27 | -35.11 | 110.31 | 0.5907 | -674.0 | -569.5 | |
| 0.00 | 6.63 | 0.00 | 4.12 | -18.47 | 214.72 | -35.66 | 113.50 | 0.6053 | -760.0 | -597.7 | |
| 0.62 | 2.03 | 0.39 | 1.27 | -18.89 | 214.50 | -35.89 | 114.08 | 0.6097 | -832.3 | -699.6 | |
| 0.00 | 1.59 | 0.00 | 1.00 | -19.78 | 214.27 | -36.12 | 115.37 | 0.6161 | -857.0 | -741.5 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -19.57 | 214.33 | -36.06 | 115.06 | 0.6145 | -831.0 | -745.6 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -16.35 | 214.93 | -35.45 | 110.15 | 0.5951 | -542.0 | -467.4 | |
| 0.00 | 1.41 | 0.00 | 0.89 | -20.20 | 213.96 | -36.43 | 115.88 | 0.6217 | -607.0 | -523.3 | |
| 6.01 | 12.20 | 3.77 | 7.65 | -19.12 | 214.20 | -36.18 | 114.32 | 0.6143 | -815.8 | -507.4 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -18.57 | 214.26 | -36.12 | 113.46 | 0.6114 | 63.0 | 37.3 | |
| 1.06 | 2.48 | 0.67 | 1.56 | -20.07 | 213.75 | -36.63 | 115.58 | 0.6236 | -683.1 | -625.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -19.91 | 213.68 | -36.71 | 115.30 | 0.6239 | -696.0 | -548.8 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -19.44 | 213.65 | -36.74 | 114.56 | 0.6225 | -581.0 | -470.0 | |
| 0.00 | 2.56 | 0.00 | 1.62 | -19.71 | 213.49 | -36.89 | 114.92 | 0.6254 | -658.0 | -481.9 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -20.22 | 213.15 | -37.24 | 115.55 | 0.6316 | -502.0 | -407.0 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -19.57 | 212.69 | -37.70 | 114.36 | 0.6348 | -541.0 | -514.5 | |
| 1.77 | 3.36 | 1.13 | 2.14 | -19.10 | 212.73 | -37.65 | 113.67 | 0.6325 | -797.2 | -589.6 | |
| 0.00 | 2.30 | 0.00 | 1.47 | -18.85 | 212.60 | -37.78 | 113.23 | 0.6333 | -892.0 | -709.9 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -19.52 | 212.38 | -38.01 | 114.16 | 0.6384 | -494.0 | -393.1 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -19.18 | 212.39 | -38.00 | 113.65 | 0.6370 | -556.0 | -465.9 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -18.12 | 212.47 | -37.92 | 112.07 | 0.6325 | -833.0 | -744.1 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -18.30 | 212.34 | -38.04 | 112.30 | 0.6347 | -702.0 | -570.5 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -20.45 | 208.66 | -41.73 | 114.17 | 0.6858 | -576.0 | -423.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
