SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.25 | 350.71 | 32.01 | 202.99 | 11.89 | 275.19 | 25.91 | 304.23 | 0.5190 | -1020.1 | -373.2 | |
|
previous
or next observation for the same group /

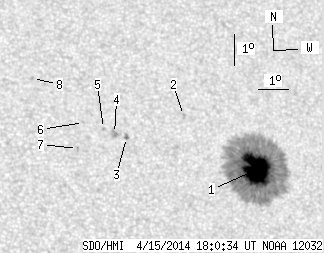

back to the solar disc SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.72 | 336.04 | 31.71 | 194.75 | 11.84 | 275.38 | 26.10 | 303.93 | 0.5209 | -1398.8 | -416.9 | |
| 0.00 | 1.94 | 0.00 | 1.12 | 13.45 | 273.06 | 23.78 | 309.03 | 0.5069 | -588.0 | -579.2 | |
| 0.53 | 2.48 | 0.30 | 1.39 | 12.68 | 271.08 | 21.80 | 310.23 | 0.4764 | 827.0 | 638.3 | |
| 0.00 | 5.30 | 0.00 | 2.98 | 12.79 | 270.69 | 21.41 | 310.92 | 0.4730 | 853.0 | 753.2 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 12.94 | 270.34 | 21.06 | 311.62 | 0.4704 | 966.0 | 802.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 13.11 | 269.69 | 20.41 | 312.78 | 0.4647 | 711.0 | 612.8 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 12.27 | 269.42 | 20.14 | 311.78 | 0.4531 | 657.0 | 559.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 14.46 | 268.13 | 18.85 | 317.16 | 0.4621 | 887.0 | 749.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
