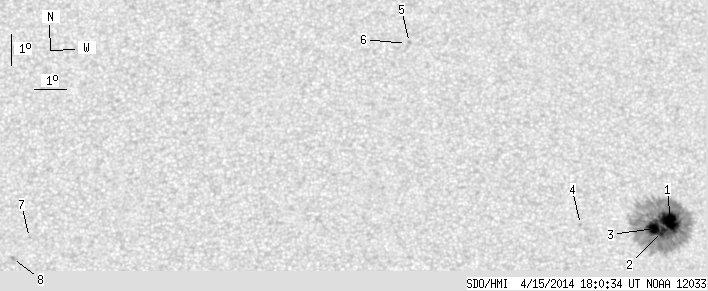

SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.11 | 262.49 | 20.45 | 140.79 | 12.13 | 263.33 | 14.05 | 321.94 | 0.3865 | -1129.0 | -419.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.90 | 257.36 | 12.31 | 138.08 | 12.21 | 263.74 | 14.46 | 321.08 | 0.3902 | -1312.8 | -429.4 | |
| 4.60 | -1.00 | 2.46 | -1.00 | 11.88 | 263.47 | 14.19 | 321.08 | 0.3835 | -1442.9 | 999999 | |
| 10.61 | -1.00 | 5.68 | -1.00 | 11.97 | 263.22 | 13.94 | 321.72 | 0.3821 | -1520.9 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 12.05 | 260.89 | 11.61 | 326.80 | 0.3610 | -780.0 | -606.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 17.82 | 255.75 | 6.47 | 344.86 | 0.4124 | -840.0 | -683.6 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 17.79 | 255.65 | 6.37 | 345.05 | 0.4115 | -434.0 | -512.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 11.57 | 243.88 | -5.40 | 17.41 | 0.3098 | 715.0 | 583.1 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 10.91 | 243.36 | -5.92 | 19.66 | 0.3022 | 955.0 | 795.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
