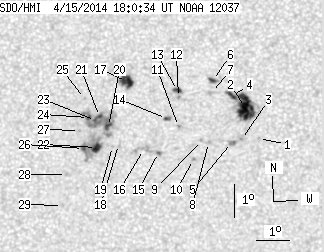

SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.31 | 185.03 | 31.04 | 92.30 | -9.47 | 244.20 | -5.08 | 130.59 | 0.1132 | 459.1 | 54.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.03 | 247.30 | -1.98 | 156.41 | 0.0852 | 905.0 | 664.3 | |
| 28.64 | 50.30 | 14.23 | 24.99 | -9.09 | 246.91 | -2.37 | 146.46 | 0.0741 | 1214.8 | 531.9 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.06 | 246.78 | -2.50 | 151.29 | 0.0897 | 1043.0 | 804.9 | |
| 3.27 | -2.00 | 1.62 | -2.00 | -8.73 | 246.52 | -2.76 | 139.24 | 0.0732 | 961.0 | 999999 | |
| 0.00 | 4.16 | 0.00 | 2.07 | -10.15 | 246.48 | -2.80 | 148.92 | 0.0937 | 1181.0 | 835.8 | |
| 1.94 | 3.89 | 0.97 | 1.93 | -8.27 | 245.92 | -3.36 | 129.18 | 0.0752 | 1018.4 | 721.8 | |
| 0.00 | 2.92 | 0.00 | 1.45 | -8.64 | 245.88 | -3.40 | 132.46 | 0.0798 | 50.0 | 74.4 | |
| 0.00 | 2.03 | 0.00 | 1.01 | -10.14 | 245.77 | -3.51 | 142.98 | 0.1004 | -592.0 | -426.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.08 | 245.56 | -3.72 | 140.97 | 0.1019 | -860.0 | -606.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.65 | 245.31 | -3.97 | 142.51 | 0.1124 | 821.0 | 606.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.65 | 244.86 | -4.42 | 133.25 | 0.1047 | -961.0 | -767.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.78 | 244.88 | -4.40 | 126.52 | 0.0949 | -1085.0 | -839.9 | |
| 2.65 | 4.51 | 1.32 | 2.24 | -8.57 | 244.85 | -4.43 | 124.51 | 0.0932 | -1161.9 | -838.9 | |
| 1.33 | 3.09 | 0.66 | 1.54 | -9.41 | 244.50 | -4.78 | 129.27 | 0.1067 | -1138.1 | -929.5 | |
| 0.44 | 2.03 | 0.22 | 1.01 | -10.43 | 244.24 | -5.04 | 134.54 | 0.1218 | -1148.6 | -844.5 | |
| 0.00 | 7.60 | 0.00 | 3.80 | -10.33 | 243.78 | -5.50 | 131.51 | 0.1265 | -663.0 | -748.5 | |
| 9.90 | 13.79 | 4.94 | 6.88 | -8.28 | 243.30 | -5.98 | 114.85 | 0.1142 | 1193.2 | 801.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -10.18 | 243.02 | -6.26 | 126.96 | 0.1350 | -83.0 | -151.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.23 | 242.83 | -6.45 | 126.52 | 0.1382 | -802.0 | -560.5 | |
| 3.09 | 45.44 | 1.55 | 22.72 | -9.63 | 242.72 | -6.56 | 122.36 | 0.1340 | -1042.5 | 22.4 | |
| 1.59 | -20.00 | 0.80 | -20.00 | -9.32 | 242.45 | -6.83 | 119.40 | 0.1353 | 854.2 | 999999 | |
| 5.66 | 31.03 | 2.83 | 15.54 | -10.26 | 242.34 | -6.94 | 124.71 | 0.1454 | -1198.0 | -127.3 | |
| 0.27 | -20.00 | 0.13 | -20.00 | -9.44 | 242.32 | -6.96 | 119.73 | 0.1382 | 750.7 | 999999 | |
| 1.59 | -20.00 | 0.80 | -20.00 | -9.35 | 242.11 | -7.17 | 118.42 | 0.1406 | 1118.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -8.78 | 242.00 | -7.28 | 114.35 | 0.1381 | 796.0 | 610.0 | |
| 1.94 | -22.00 | 0.97 | -22.00 | -10.28 | 241.94 | -7.34 | 123.39 | 0.1513 | 800.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.74 | 241.83 | -7.45 | 119.88 | 0.1481 | 928.0 | 684.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -11.06 | 241.39 | -7.89 | 125.62 | 0.1665 | 776.0 | 569.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.99 | 241.24 | -8.04 | 129.50 | 0.1781 | 822.0 | 618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
