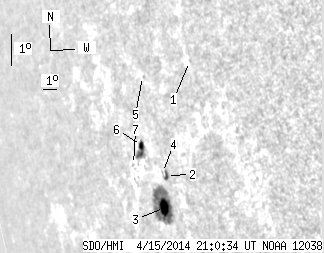

SDO HMI 2014-04-15 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.97 | 70.84 | 16.89 | 85.86 | -13.21 | 181.24 | -66.38 | 102.01 | 0.9137 | 218.2 | -53.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.84 | -9.54 | 184.95 | -62.67 | 97.87 | 0.8863 | 461.0 | 414.7 | |
| 1.68 | 3.54 | 1.97 | 4.16 | -12.78 | 181.97 | -65.65 | 101.52 | 0.9085 | -461.0 | -389.0 | |
| 9.02 | 52.79 | 10.86 | 63.79 | -13.70 | 181.32 | -66.30 | 102.54 | 0.9131 | 461.1 | 13.4 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -12.66 | 181.73 | -65.89 | 101.39 | 0.9102 | -442.0 | -447.0 | |
| 0.00 | 0.71 | 0.00 | 0.85 | -9.70 | 181.54 | -66.08 | 98.15 | 0.9120 | 347.0 | 327.9 | |
| 3.27 | 11.67 | 4.06 | 14.54 | -11.73 | 180.56 | -67.06 | 100.39 | 0.9184 | 72.1 | -367.2 | |
| 0.00 | 1.06 | 0.00 | 1.37 | -12.23 | 179.65 | -67.97 | 100.95 | 0.9244 | -200.0 | -111.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
