SDO HMI 2014-04-15 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.21 | 342.93 | 32.07 | 202.42 | 11.94 | 275.11 | 28.04 | 302.25 | 0.5458 | -730.4 | -354.1 | |
|
previous
or next observation for the same group /

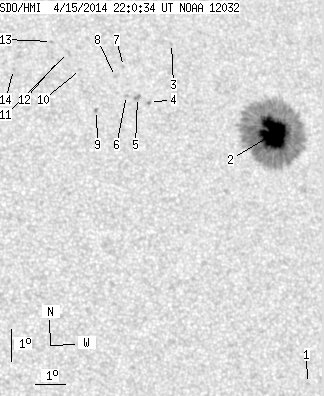

back to the solar disc SDO HMI 2014-04-15 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.71 | 4.18 | 275.96 | 28.89 | 288.08 | 0.5089 | -669.0 | -465.9 | |
| 54.21 | 323.85 | 32.07 | 191.54 | 11.89 | 275.39 | 28.32 | 301.87 | 0.5487 | -1223.7 | -409.0 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 14.60 | 272.18 | 25.11 | 309.28 | 0.5326 | -622.0 | -504.1 | |
| 0.00 | 1.50 | 0.00 | 0.86 | 12.68 | 271.21 | 24.14 | 307.38 | 0.5042 | 741.0 | 615.5 | |
| 0.00 | 3.01 | 0.00 | 1.72 | 12.83 | 270.82 | 23.75 | 308.06 | 0.5008 | 848.0 | 733.1 | |
| 0.00 | 1.68 | 0.00 | 0.96 | 12.87 | 270.46 | 23.39 | 308.57 | 0.4970 | 786.0 | 594.5 | |
| 0.00 | 1.41 | 0.00 | 0.81 | 13.80 | 270.45 | 23.38 | 310.04 | 0.5054 | 663.0 | 491.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 13.47 | 270.15 | 23.08 | 309.88 | 0.4988 | 720.0 | 565.1 | |
| 0.00 | 1.50 | 0.00 | 0.85 | 12.36 | 269.40 | 22.33 | 309.01 | 0.4797 | 741.0 | 679.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.64 | 268.99 | 21.92 | 311.61 | 0.4873 | 645.0 | 501.8 | |
| 0.00 | 2.03 | 0.00 | 1.15 | 14.17 | 268.64 | 21.58 | 312.89 | 0.4886 | 618.0 | 479.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 13.91 | 268.28 | 21.22 | 312.95 | 0.4819 | 649.0 | 497.2 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 14.51 | 268.11 | 21.04 | 314.11 | 0.4861 | 701.0 | 549.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 13.57 | 266.76 | 19.70 | 314.53 | 0.4615 | 502.0 | 488.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
