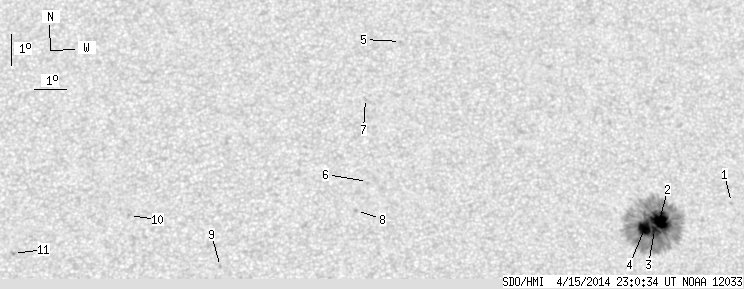

SDO HMI 2014-04-15 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.38 | 255.88 | 19.25 | 139.12 | 12.13 | 263.19 | 16.68 | 317.15 | 0.4138 | -713.2 | -385.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-15 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.79 | 12.87 | 266.09 | 19.57 | 313.57 | 0.4527 | 722.0 | 605.0 | |
| 19.72 | 247.65 | 10.75 | 134.74 | 12.22 | 263.70 | 17.19 | 316.21 | 0.4191 | -1146.0 | -419.5 | |
| 3.01 | -2.00 | 1.63 | -2.00 | 11.93 | 263.52 | 17.01 | 316.02 | 0.4138 | -1284.1 | 999999 | |
| 12.65 | -2.00 | 6.87 | -2.00 | 11.96 | 263.20 | 16.69 | 316.61 | 0.4106 | -1357.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 17.80 | 255.76 | 9.24 | 338.85 | 0.4257 | -783.0 | -630.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 13.27 | 254.52 | 8.00 | 337.17 | 0.3508 | 461.0 | 521.0 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 15.93 | 254.56 | 8.04 | 339.79 | 0.3911 | 713.0 | 623.3 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 12.34 | 254.14 | 7.63 | 337.07 | 0.3344 | 774.0 | 567.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.55 | 249.91 | 3.40 | 348.13 | 0.2847 | 757.0 | 604.2 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 12.14 | 247.13 | 0.62 | 358.01 | 0.3057 | 642.0 | 518.8 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 10.96 | 243.58 | -2.94 | 10.04 | 0.2900 | 1020.0 | 774.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
