SDO HMI 2014-04-15 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 161.06 | 839.20 | 88.00 | 460.27 | -15.83 | 223.24 | -23.27 | 116.44 | 0.4248 | 317.5 | 154.0 | |
|
previous
or next observation for the same group /

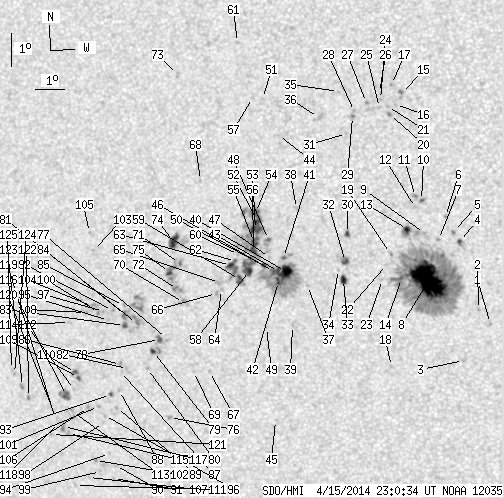

back to the solar disc SDO HMI 2014-04-15 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.47 | -17.46 | 229.29 | -17.22 | 126.68 | 0.3536 | 760.0 | 565.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -17.02 | 228.94 | -17.57 | 125.11 | 0.3544 | 480.0 | 444.6 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -18.57 | 228.28 | -18.23 | 127.76 | 0.3768 | 724.0 | 589.1 | |
| 0.97 | 3.27 | 0.51 | 1.73 | -14.93 | 228.51 | -18.00 | 119.25 | 0.3438 | -969.1 | -606.7 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -14.62 | 228.34 | -18.17 | 118.23 | 0.3440 | -766.0 | -713.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -14.15 | 228.12 | -18.39 | 116.74 | 0.3441 | -925.0 | -737.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -14.84 | 227.83 | -18.68 | 118.22 | 0.3529 | 713.0 | 509.1 | |
| 68.28 | 334.42 | 36.36 | 178.10 | -16.08 | 227.38 | -19.13 | 120.80 | 0.3682 | 1402.7 | 403.7 | |
| 0.00 | 2.65 | 0.00 | 1.41 | -14.65 | 227.39 | -19.13 | 117.22 | 0.3580 | -207.0 | -177.5 | |
| 0.62 | 2.48 | 0.33 | 1.31 | -13.64 | 227.38 | -19.13 | 114.58 | 0.3518 | -950.4 | -740.9 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -13.51 | 227.19 | -19.32 | 114.06 | 0.3538 | -971.0 | -750.1 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -13.85 | 227.17 | -19.35 | 114.91 | 0.3562 | -642.0 | -357.3 | |
| 2.83 | 12.12 | 1.51 | 6.44 | -14.51 | 226.84 | -19.67 | 116.28 | 0.3650 | -1021.2 | -342.6 | |
| 1.06 | -8.00 | 0.57 | -8.00 | -15.99 | 226.49 | -20.02 | 119.56 | 0.3800 | 537.3 | 999999 | |
| 0.00 | 4.42 | 0.00 | 2.33 | -10.39 | 226.98 | -19.54 | 105.23 | 0.3424 | 1163.0 | 861.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -10.71 | 226.76 | -19.76 | 106.01 | 0.3470 | 903.0 | 707.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.10 | 226.67 | -19.84 | 104.24 | 0.3463 | 966.0 | 816.1 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -18.68 | 225.84 | -20.67 | 124.85 | 0.4092 | -646.0 | -399.4 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -15.22 | 226.21 | -20.31 | 117.39 | 0.3788 | 721.0 | 587.3 | |
| 0.00 | 2.12 | 0.00 | 1.12 | -11.01 | 226.54 | -19.97 | 106.69 | 0.3516 | 918.0 | 805.8 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -10.76 | 226.50 | -20.02 | 105.99 | 0.3514 | 920.0 | 772.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -15.55 | 226.04 | -20.47 | 118.02 | 0.3833 | 748.0 | 541.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.00 | 225.86 | -20.66 | 118.90 | 0.3890 | 608.0 | 406.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.54 | 226.28 | -20.23 | 105.25 | 0.3539 | 878.0 | 734.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -10.78 | 226.23 | -20.28 | 105.88 | 0.3556 | 810.0 | 669.8 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.33 | 226.26 | -20.25 | 104.65 | 0.3535 | 873.0 | 780.3 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -10.62 | 225.82 | -20.70 | 105.18 | 0.3615 | 914.0 | 862.6 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -10.88 | 225.41 | -21.11 | 105.63 | 0.3688 | 746.0 | 608.7 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -11.03 | 225.33 | -21.18 | 105.98 | 0.3706 | 980.0 | 812.2 | |
| 1.42 | 2.92 | 0.76 | 1.57 | -14.56 | 224.84 | -21.67 | 114.51 | 0.3945 | -869.1 | -685.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -11.53 | 225.09 | -21.42 | 107.16 | 0.3762 | 843.0 | 690.7 | |
| 2.30 | 5.48 | 1.24 | 2.96 | -15.41 | 224.68 | -21.83 | 116.37 | 0.4018 | 950.5 | 801.0 | |
| 3.63 | 5.31 | 1.97 | 2.88 | -15.96 | 224.55 | -21.96 | 117.50 | 0.4071 | -883.3 | -569.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -15.65 | 224.42 | -22.09 | 116.67 | 0.4070 | 366.0 | 309.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.25 | 224.93 | -21.59 | 103.73 | 0.3743 | 758.0 | 678.7 | |
| 0.00 | 4.69 | 0.00 | 2.52 | -11.01 | 224.21 | -22.31 | 105.32 | 0.3880 | 629.0 | 541.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -16.09 | 223.32 | -23.20 | 116.69 | 0.4254 | 803.0 | 675.6 | |
| 0.00 | 2.30 | 0.00 | 1.25 | -13.74 | 223.22 | -23.30 | 111.31 | 0.4141 | 780.0 | 626.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -17.30 | 222.64 | -23.87 | 118.67 | 0.4422 | 785.0 | 633.2 | |
| 10.70 | 94.55 | 5.87 | 52.01 | -15.64 | 222.62 | -23.89 | 115.13 | 0.4326 | 1250.1 | 374.1 | |
| 0.71 | 5.31 | 0.39 | 2.91 | -15.21 | 222.61 | -23.91 | 114.18 | 0.4305 | 1051.8 | 772.8 | |
| 2.48 | -40.00 | 1.36 | -40.00 | -15.93 | 222.35 | -24.17 | 115.54 | 0.4382 | 785.2 | 999999 | |
| 1.42 | -40.00 | 0.78 | -40.00 | -15.63 | 222.38 | -24.13 | 114.92 | 0.4359 | 984.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -11.51 | 222.83 | -23.68 | 105.82 | 0.4108 | 794.0 | 647.6 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -20.20 | 221.60 | -24.92 | 123.44 | 0.4758 | 583.0 | 369.6 | |
| 1.86 | -40.00 | 1.02 | -40.00 | -15.62 | 222.21 | -24.30 | 114.77 | 0.4383 | 808.8 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -15.19 | 222.13 | -24.38 | 113.78 | 0.4372 | 737.0 | 617.4 | |
| 0.80 | 7.52 | 0.44 | 4.13 | -14.64 | 222.16 | -24.35 | 112.61 | 0.4339 | 1080.4 | 869.4 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -17.32 | 221.74 | -24.78 | 117.96 | 0.4548 | 303.0 | 249.1 | |
| 1.59 | -40.00 | 0.88 | -40.00 | -15.43 | 221.90 | -24.62 | 114.11 | 0.4418 | 852.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -10.37 | 222.40 | -24.12 | 102.90 | 0.4141 | 657.0 | 539.8 | |
| 4.07 | 123.74 | 2.24 | 68.39 | -14.08 | 221.86 | -24.66 | 111.16 | 0.4358 | 1074.4 | 452.5 | |
| 8.31 | -52.00 | 4.58 | -52.00 | -14.32 | 221.76 | -24.76 | 111.62 | 0.4383 | 1037.1 | 999999 | |
| 4.33 | -52.00 | 2.38 | -52.00 | -13.80 | 221.82 | -24.70 | 110.53 | 0.4351 | 984.0 | 999999 | |
| 5.04 | -52.00 | 2.78 | -52.00 | -14.71 | 221.68 | -24.84 | 112.43 | 0.4414 | 965.0 | 999999 | |
| 4.07 | -52.00 | 2.25 | -52.00 | -14.96 | 221.61 | -24.90 | 112.90 | 0.4435 | 975.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.33 | 222.06 | -24.45 | 102.67 | 0.4191 | 605.0 | 446.4 | |
| 2.83 | -52.00 | 1.57 | -52.00 | -15.56 | 221.40 | -25.12 | 114.04 | 0.4496 | 831.8 | 999999 | |
| 3.71 | -52.00 | 2.07 | -52.00 | -15.82 | 221.02 | -25.50 | 114.31 | 0.4564 | 750.8 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.57 | -15.06 | 221.08 | -25.43 | 112.76 | 0.4516 | 472.0 | 297.3 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -8.65 | 221.69 | -24.82 | 98.59 | 0.4215 | 822.0 | 598.9 | |
| 0.27 | -52.00 | 0.15 | -52.00 | -15.26 | 220.95 | -25.56 | 113.11 | 0.4545 | 848.0 | 999999 | |
| 2.65 | -52.00 | 1.48 | -52.00 | -15.38 | 220.76 | -25.75 | 113.22 | 0.4577 | 543.3 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.14 | -16.10 | 220.35 | -26.16 | 114.42 | 0.4672 | 411.0 | 220.4 | |
| 0.00 | 3.98 | 0.00 | 2.23 | -15.88 | 220.31 | -26.20 | 113.95 | 0.4666 | -551.0 | -65.6 | |
| 0.00 | 1.95 | 0.00 | 1.09 | -16.21 | 220.16 | -26.36 | 114.52 | 0.4705 | 588.0 | 401.0 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -18.59 | 219.53 | -26.98 | 118.69 | 0.4922 | 498.0 | 320.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -12.76 | 220.05 | -26.46 | 107.27 | 0.4570 | 459.0 | 334.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -18.57 | 218.96 | -27.55 | 118.23 | 0.4996 | 520.0 | 397.0 | |
| 0.00 | 4.60 | 0.00 | 2.61 | -16.44 | 218.96 | -27.55 | 114.17 | 0.4883 | -567.0 | -692.4 | |
| 0.44 | 17.25 | 0.25 | 9.77 | -15.24 | 219.00 | -27.51 | 111.84 | 0.4821 | -1060.4 | -753.2 | |
| 0.00 | 5.04 | 0.00 | 2.86 | -16.03 | 218.81 | -27.70 | 113.29 | 0.4884 | -784.0 | -906.5 | |
| 0.00 | 2.12 | 0.00 | 1.18 | -9.53 | 219.59 | -26.93 | 100.09 | 0.4555 | 640.0 | 560.4 | |
| 8.31 | 18.75 | 4.69 | 10.57 | -14.56 | 218.89 | -27.63 | 110.42 | 0.4809 | -959.7 | -279.9 | |
| 1.86 | -71.00 | 1.05 | -71.00 | -15.50 | 218.61 | -27.90 | 112.13 | 0.4888 | -1013.7 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.18 | -19.95 | 217.84 | -28.68 | 119.91 | 0.5225 | 714.0 | 552.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -17.51 | 218.18 | -28.33 | 115.72 | 0.5044 | -472.0 | -614.8 | |
| 2.03 | 4.51 | 1.17 | 2.59 | -17.53 | 217.93 | -28.59 | 115.59 | 0.5080 | -1097.3 | -875.4 | |
| 1.86 | 7.25 | 1.07 | 4.18 | -17.89 | 217.65 | -28.87 | 116.08 | 0.5136 | -941.0 | -726.3 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -18.40 | 217.34 | -29.18 | 116.81 | 0.5204 | -766.0 | -607.3 | |
| 0.00 | 11.85 | 0.00 | 6.84 | -17.00 | 217.19 | -29.33 | 114.17 | 0.5154 | -1024.0 | -824.3 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -18.36 | 216.61 | -29.90 | 116.29 | 0.5298 | -664.0 | -466.5 | |
| 1.59 | 3.54 | 0.92 | 2.05 | -17.04 | 216.75 | -29.77 | 113.99 | 0.5216 | -900.7 | -657.8 | |
| 1.42 | 20.34 | 0.82 | 11.72 | -16.71 | 216.81 | -29.71 | 113.40 | 0.5193 | -832.6 | -791.1 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -16.43 | 216.82 | -29.70 | 112.90 | 0.5179 | -718.0 | -599.5 | |
| 0.00 | 2.30 | 0.00 | 1.34 | -18.23 | 216.38 | -30.13 | 115.92 | 0.5322 | -726.0 | -613.8 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -18.44 | 216.34 | -30.17 | 116.27 | 0.5338 | -456.0 | -523.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -19.03 | 216.19 | -30.33 | 117.20 | 0.5388 | -752.0 | -647.1 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -19.55 | 215.97 | -30.55 | 117.96 | 0.5444 | -786.0 | -670.0 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -21.34 | 215.53 | -30.99 | 120.70 | 0.5599 | -635.0 | -597.2 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -21.74 | 215.36 | -31.16 | 121.24 | 0.5643 | -743.0 | -650.5 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -16.56 | 216.40 | -30.12 | 112.92 | 0.5243 | -821.0 | -634.2 | |
| 0.88 | 1.77 | 0.52 | 1.04 | -19.13 | 215.83 | -30.68 | 117.17 | 0.5440 | -881.2 | -777.8 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -20.96 | 215.39 | -31.12 | 119.98 | 0.5594 | -688.0 | -525.9 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -16.86 | 216.20 | -30.32 | 113.35 | 0.5283 | -648.0 | -536.9 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -19.77 | 215.47 | -31.04 | 118.04 | 0.5520 | -836.0 | -628.5 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -16.58 | 216.07 | -30.45 | 112.77 | 0.5288 | -842.0 | -713.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -19.98 | 215.39 | -31.13 | 118.35 | 0.5542 | -578.0 | -473.7 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -21.50 | 214.92 | -31.59 | 120.57 | 0.5683 | -722.0 | -473.1 | |
| 0.00 | 1.86 | 0.00 | 1.08 | -16.60 | 215.88 | -30.63 | 112.71 | 0.5315 | -848.0 | -697.9 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -19.48 | 215.31 | -31.20 | 117.45 | 0.5525 | -761.0 | -580.4 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -21.15 | 214.82 | -31.70 | 119.93 | 0.5676 | -877.0 | -685.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.70 | 216.02 | -30.50 | 109.29 | 0.5222 | -751.0 | -559.1 | |
| 0.00 | 6.63 | 0.00 | 3.88 | -16.41 | 215.69 | -30.82 | 112.26 | 0.5332 | -625.0 | -598.5 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.15 | 215.96 | -30.56 | 108.23 | 0.5211 | -785.0 | -618.3 | |
| 0.00 | 1.77 | 0.00 | 1.05 | -19.49 | 214.93 | -31.58 | 117.25 | 0.5575 | -864.0 | -760.4 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -21.66 | 214.42 | -32.09 | 120.52 | 0.5753 | -518.0 | -297.7 | |
| 0.00 | 1.77 | 0.00 | 1.04 | -16.58 | 215.41 | -31.11 | 112.43 | 0.5378 | -668.0 | -586.4 | |
| 0.88 | 6.01 | 0.53 | 3.58 | -18.55 | 214.76 | -31.75 | 115.55 | 0.5551 | -872.0 | -637.2 | |
| 1.59 | -109.00 | 0.95 | -109.00 | -18.39 | 214.68 | -31.83 | 115.23 | 0.5554 | -762.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -21.89 | 213.87 | -32.65 | 120.53 | 0.5834 | -632.0 | -512.8 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -18.91 | 214.53 | -31.98 | 116.04 | 0.5598 | -767.0 | -659.8 | |
| 0.00 | 3.10 | 0.00 | 1.86 | -19.62 | 214.34 | -32.17 | 117.12 | 0.5657 | -679.0 | -672.7 | |
| 0.00 | 1.68 | 0.00 | 0.99 | -16.85 | 214.77 | -31.75 | 112.60 | 0.5476 | -550.0 | -460.8 | |
| 0.00 | 1.77 | 0.00 | 1.07 | -20.26 | 214.00 | -32.51 | 117.98 | 0.5732 | -647.0 | -609.0 | |
| 4.25 | 9.20 | 2.54 | 5.51 | -19.08 | 214.20 | -32.32 | 116.14 | 0.5650 | -858.5 | -611.5 | |
| 0.00 | 3.89 | 0.00 | 2.35 | -20.03 | 213.87 | -32.65 | 117.53 | 0.5738 | -903.0 | -684.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -19.90 | 213.74 | -32.77 | 117.25 | 0.5747 | -696.0 | -612.3 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -19.77 | 213.62 | -32.89 | 116.97 | 0.5756 | -470.0 | -521.0 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -19.52 | 213.60 | -32.91 | 116.55 | 0.5746 | -717.0 | -512.0 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -20.26 | 213.35 | -33.16 | 117.61 | 0.5813 | -580.0 | -512.9 | |
| 0.00 | 1.86 | 0.00 | 1.13 | -19.07 | 212.75 | -33.76 | 115.36 | 0.5835 | -802.0 | -634.5 | |
| 0.00 | 2.39 | 0.00 | 1.45 | -18.72 | 212.61 | -33.91 | 114.72 | 0.5839 | -966.0 | -687.7 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -18.31 | 212.39 | -34.12 | 113.93 | 0.5849 | -783.0 | -676.7 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -18.18 | 212.31 | -34.21 | 113.68 | 0.5855 | -710.0 | -690.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
