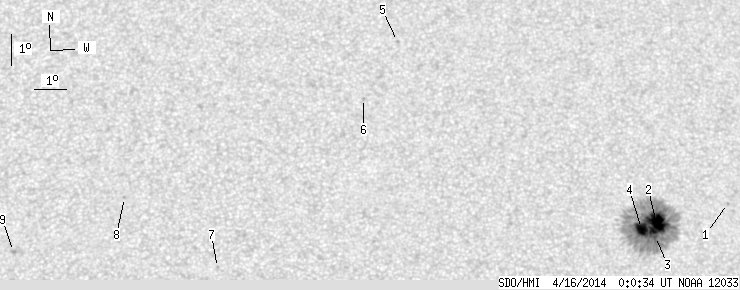

SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.29 | 246.54 | 23.09 | 134.43 | 12.11 | 263.22 | 17.26 | 316.17 | 0.4199 | -828.4 | -376.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.69 | 12.86 | 266.06 | 20.10 | 312.80 | 0.4585 | 646.0 | 535.2 | |
| 27.95 | 239.20 | 15.28 | 130.53 | 12.15 | 263.69 | 17.73 | 315.19 | 0.4242 | -1128.9 | -407.7 | |
| 2.57 | -2.00 | 1.40 | -2.00 | 11.74 | 263.63 | 17.67 | 314.58 | 0.4190 | -1049.6 | 999999 | |
| 11.77 | -2.00 | 6.41 | -2.00 | 11.98 | 263.20 | 17.23 | 315.71 | 0.4168 | -1326.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 17.82 | 255.75 | 9.79 | 337.74 | 0.4291 | -779.0 | -684.8 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 15.94 | 254.57 | 8.61 | 338.50 | 0.3945 | 813.0 | 714.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 10.52 | 249.88 | 3.92 | 346.35 | 0.2861 | 752.0 | 642.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 12.72 | 247.05 | 1.08 | 356.63 | 0.3156 | 684.0 | 537.4 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 11.02 | 243.64 | -2.33 | 7.95 | 0.2894 | 1006.0 | 838.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
