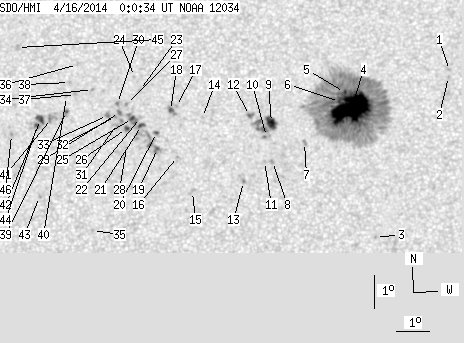

SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.61 | 581.18 | 45.11 | 292.60 | 4.30 | 246.45 | 0.49 | 354.67 | 0.1786 | -429.2 | -239.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.27 | 5.58 | 250.80 | 4.84 | 336.48 | 0.2112 | -682.0 | -476.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.39 | 250.77 | 4.80 | 336.27 | 0.2081 | -721.0 | -549.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 0.48 | 248.54 | 2.58 | 336.86 | 0.1150 | -842.0 | -668.4 | |
| 67.85 | 442.48 | 34.14 | 222.69 | 4.40 | 247.83 | 1.87 | 349.37 | 0.1768 | -1466.2 | -428.9 | |
| 0.97 | -4.00 | 0.49 | -4.00 | 4.89 | 247.62 | 1.66 | 350.98 | 0.1844 | -957.5 | 999999 | |
| 0.27 | -4.00 | 0.13 | -4.00 | 4.61 | 247.47 | 1.50 | 351.58 | 0.1794 | -1022.3 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 3.36 | 246.41 | 0.45 | 357.13 | 0.1560 | -923.0 | -643.0 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 2.79 | 245.44 | -0.52 | 3.56 | 0.1461 | -858.0 | -715.0 | |
| 7.78 | 23.97 | 3.91 | 12.04 | 3.97 | 245.41 | -0.55 | 3.30 | 0.1667 | -1067.2 | -858.7 | |
| 0.00 | 3.10 | 0.00 | 1.55 | 3.55 | 245.26 | -0.70 | 4.40 | 0.1595 | -1015.0 | -786.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 2.79 | 245.20 | -0.76 | 5.21 | 0.1465 | -820.0 | -630.5 | |
| 0.62 | 3.27 | 0.31 | 1.65 | 4.19 | 244.75 | -1.21 | 7.10 | 0.1714 | -860.4 | -695.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 2.18 | 244.57 | -1.39 | 10.21 | 0.1375 | -904.0 | -731.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 4.13 | 243.33 | -2.63 | 15.21 | 0.1752 | 769.0 | 597.2 | |
| 0.00 | 3.10 | 0.00 | 1.55 | 1.89 | 243.04 | -2.93 | 21.51 | 0.1398 | 863.0 | 564.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.95 | 242.58 | -3.38 | 21.72 | 0.1599 | 756.0 | 651.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.48 | 242.55 | -3.41 | 18.83 | 0.1848 | 702.0 | 590.0 | |
| 1.15 | 5.04 | 0.58 | 2.54 | 4.35 | 242.37 | -3.60 | 19.98 | 0.1839 | 1030.7 | 780.5 | |
| 0.71 | 34.94 | 0.36 | 17.59 | 3.20 | 241.98 | -3.98 | 24.52 | 0.1679 | 1044.2 | 836.4 | |
| 0.53 | 1.68 | 0.27 | 0.85 | 3.69 | 241.95 | -4.02 | 23.54 | 0.1758 | 709.8 | 557.2 | |
| 1.50 | -19.00 | 0.76 | -19.00 | 3.90 | 241.49 | -4.47 | 25.35 | 0.1825 | 999.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.15 | 241.46 | -4.50 | 24.94 | 0.1865 | 531.0 | 477.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 4.97 | 241.43 | -4.54 | 23.35 | 0.1997 | 775.0 | 612.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 5.40 | 241.27 | -4.69 | 23.21 | 0.2075 | 733.0 | 578.2 | |
| 1.59 | -19.00 | 0.80 | -19.00 | 4.12 | 241.22 | -4.74 | 26.17 | 0.1879 | 1172.1 | 999999 | |
| 1.42 | 2.57 | 0.71 | 1.29 | 3.82 | 241.04 | -4.92 | 27.78 | 0.1846 | 1100.8 | 856.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.55 | 241.03 | -4.93 | 26.05 | 0.1959 | 818.0 | 638.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 3.24 | 241.04 | -4.92 | 29.30 | 0.1758 | 895.0 | 616.9 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 4.31 | 240.82 | -5.14 | 27.58 | 0.1938 | 1092.0 | 983.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.58 | 240.76 | -5.20 | 27.21 | 0.1985 | 1011.0 | 889.3 | |
| 0.00 | 4.42 | 0.00 | 2.23 | 3.97 | 240.77 | -5.20 | 28.67 | 0.1892 | 806.0 | 845.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 4.19 | 240.70 | -5.26 | 28.42 | 0.1929 | 1040.0 | 912.2 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 4.22 | 240.46 | -5.50 | 29.43 | 0.1954 | 961.0 | 855.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.02 | 240.00 | -5.96 | 29.47 | 0.2112 | 865.0 | 656.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 0.73 | 240.02 | -5.94 | 43.51 | 0.1511 | 743.0 | 500.6 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 5.79 | 239.54 | -6.42 | 29.57 | 0.2266 | 767.0 | 455.5 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.87 | 239.49 | -6.48 | 31.91 | 0.2136 | 642.0 | 539.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.24 | 239.30 | -6.66 | 31.74 | 0.2206 | 818.0 | 606.7 | |
| 0.71 | 3.63 | 0.36 | 1.84 | 4.36 | 239.22 | -6.75 | 34.32 | 0.2087 | 992.5 | 842.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 4.81 | 239.21 | -6.75 | 33.13 | 0.2152 | 687.0 | 532.8 | |
| 0.00 | 4.78 | 0.00 | 2.42 | 4.15 | 238.76 | -7.20 | 36.67 | 0.2103 | 1054.0 | 939.4 | |
| 3.45 | 9.55 | 1.75 | 4.84 | 4.12 | 238.43 | -7.53 | 38.00 | 0.2134 | 1071.5 | 810.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 1.78 | 238.41 | -7.55 | 45.97 | 0.1835 | 889.0 | 788.4 | |
| 1.06 | -42.00 | 0.54 | -42.00 | 3.94 | 238.34 | -7.62 | 38.86 | 0.2119 | 1046.5 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.54 | 6.34 | 237.70 | -8.26 | 34.84 | 0.2511 | 783.0 | 651.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 3.68 | 237.55 | -8.41 | 42.47 | 0.2172 | 845.0 | 687.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
