SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.21 | 82.71 | 17.40 | 94.45 | -13.19 | 181.15 | -64.81 | 101.98 | 0.9025 | 231.7 | -59.8 | |
|
previous
or next observation for the same group /

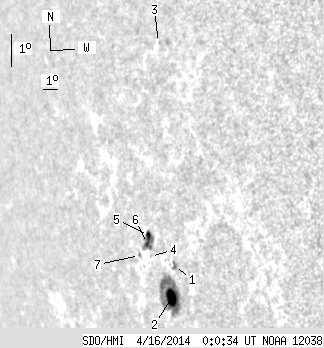

back to the solar disc SDO HMI 2014-04-16 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 3.36 | 0.59 | 3.73 | -12.80 | 181.97 | -64.00 | 101.55 | 0.8964 | -578.5 | -467.9 | |
| 10.17 | 60.77 | 11.54 | 69.05 | -13.70 | 181.30 | -64.66 | 102.54 | 0.9014 | 547.9 | 36.4 | |
| 0.00 | 0.80 | 0.00 | 0.85 | -6.07 | 183.13 | -62.83 | 93.96 | 0.8887 | 334.0 | 300.0 | |
| 0.00 | 0.62 | 0.00 | 0.73 | -12.36 | 180.42 | -65.54 | 101.06 | 0.9078 | -570.0 | -517.7 | |
| 3.18 | 15.48 | 3.71 | 18.07 | -11.72 | 180.57 | -65.39 | 100.36 | 0.9067 | 15.5 | -364.1 | |
| 1.33 | -5.00 | 1.56 | -5.00 | -11.95 | 180.39 | -65.57 | 100.62 | 0.9080 | -478.9 | 999999 | |
| 0.00 | 1.68 | 0.00 | 2.02 | -12.26 | 179.63 | -66.33 | 100.96 | 0.9133 | -330.0 | -222.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
