SDO HMI 2014-04-16 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.42 | 597.16 | 49.06 | 300.71 | 4.30 | 246.35 | 0.94 | 352.53 | 0.1793 | -522.8 | -222.8 | |
|
previous
or next observation for the same group /

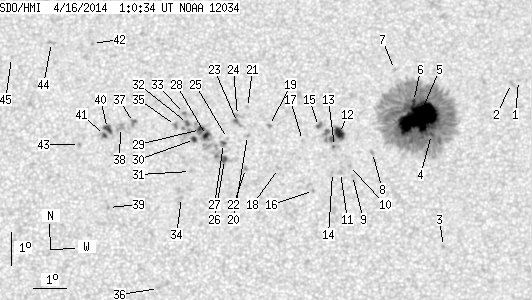

back to the solar disc SDO HMI 2014-04-16 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.59 | 250.85 | 5.44 | 333.92 | 0.2157 | -786.0 | -585.8 | |
| 0.00 | 2.65 | 0.00 | 1.35 | 5.49 | 250.64 | 5.23 | 334.62 | 0.2127 | -857.0 | -676.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 0.52 | 248.56 | 3.15 | 332.56 | 0.1197 | -822.0 | -665.5 | |
| 1.33 | 435.47 | 0.67 | 219.26 | 3.92 | 248.21 | 2.80 | 343.51 | 0.1724 | -976.0 | -422.5 | |
| 71.40 | -4.00 | 35.95 | -4.00 | 4.44 | 247.82 | 2.41 | 346.42 | 0.1793 | -1445.2 | 999999 | |
| 1.42 | -4.00 | 0.71 | -4.00 | 4.93 | 247.67 | 2.26 | 347.81 | 0.1869 | -983.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 5.91 | 247.10 | 1.69 | 351.60 | 0.2018 | 617.0 | 440.0 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 3.37 | 246.43 | 1.02 | 353.48 | 0.1569 | -956.0 | -754.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.67 | 245.83 | 0.41 | 357.11 | 0.1439 | -956.0 | -723.8 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 2.97 | 245.74 | 0.32 | 357.82 | 0.1491 | -911.0 | -752.7 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 2.76 | 245.46 | 0.05 | 359.63 | 0.1453 | -915.0 | -693.0 | |
| 7.08 | 25.57 | 3.56 | 12.84 | 3.95 | 245.44 | 0.02 | 359.85 | 0.1659 | -1076.4 | -815.7 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 3.55 | 245.28 | -0.13 | 0.80 | 0.1591 | -1085.0 | -827.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 2.76 | 245.22 | -0.19 | 1.29 | 0.1454 | -844.0 | -688.9 | |
| 0.71 | 2.83 | 0.36 | 1.42 | 4.16 | 244.80 | -0.61 | 3.59 | 0.1699 | -892.5 | -718.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 2.22 | 244.65 | -0.76 | 5.60 | 0.1365 | -937.0 | -763.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 3.74 | 244.32 | -1.09 | 6.71 | 0.1634 | -691.0 | -545.6 | |
| 0.00 | 2.12 | 0.00 | 1.06 | 2.89 | 243.60 | -1.81 | 12.15 | 0.1509 | -498.0 | -397.0 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 4.20 | 243.32 | -2.09 | 12.10 | 0.1740 | 911.0 | 753.9 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 3.90 | 242.66 | -2.75 | 16.25 | 0.1718 | 754.0 | 398.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.75 | 242.66 | -2.75 | 14.97 | 0.1860 | 553.0 | 496.1 | |
| 0.00 | 2.03 | 0.00 | 1.02 | 2.89 | 242.60 | -2.81 | 18.43 | 0.1555 | 838.0 | 669.1 | |
| 0.00 | 3.89 | 0.00 | 1.96 | 4.30 | 242.36 | -3.05 | 17.25 | 0.1799 | 985.0 | 833.0 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 4.51 | 242.36 | -3.05 | 16.91 | 0.1834 | 748.0 | 660.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 3.81 | 242.06 | -3.35 | 19.74 | 0.1735 | 414.0 | 265.1 | |
| 1.77 | 27.34 | 0.89 | 13.74 | 3.17 | 241.97 | -3.44 | 21.58 | 0.1637 | 1108.2 | 747.1 | |
| 0.88 | -26.00 | 0.44 | -26.00 | 3.66 | 241.94 | -3.47 | 20.70 | 0.1718 | 623.6 | 999999 | |
| 2.57 | 26.01 | 1.29 | 13.10 | 3.91 | 241.42 | -3.99 | 22.90 | 0.1791 | 1076.8 | 720.2 | |
| 2.74 | -28.00 | 1.38 | -28.00 | 4.09 | 241.24 | -4.17 | 23.43 | 0.1832 | 1091.6 | 999999 | |
| 1.95 | -28.00 | 0.98 | -28.00 | 3.79 | 241.06 | -4.35 | 25.02 | 0.1797 | 1026.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.82 | 240.94 | -4.47 | 28.16 | 0.1656 | 709.0 | 543.3 | |
| 1.06 | 10.53 | 0.54 | 5.31 | 4.28 | 240.85 | -4.56 | 24.95 | 0.1889 | 1095.7 | 870.7 | |
| 0.00 | 2.03 | 0.00 | 1.03 | 4.58 | 240.76 | -4.66 | 24.72 | 0.1944 | 981.0 | 809.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 2.03 | 240.67 | -4.74 | 32.08 | 0.1561 | 826.0 | 682.7 | |
| 0.00 | 2.83 | 0.00 | 1.43 | 4.22 | 240.48 | -4.93 | 26.81 | 0.1907 | 898.0 | 799.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -0.72 | 239.98 | -5.43 | 48.44 | 0.1271 | 841.0 | 672.3 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 4.33 | 239.21 | -6.20 | 32.19 | 0.2030 | 1133.0 | 907.2 | |
| 0.00 | 6.72 | 0.00 | 3.40 | 4.18 | 238.82 | -6.59 | 34.21 | 0.2046 | 1014.0 | 795.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 1.75 | 238.47 | -6.94 | 43.70 | 0.1757 | 987.0 | 761.9 | |
| 3.27 | 7.25 | 1.66 | 3.67 | 4.15 | 238.42 | -6.99 | 35.85 | 0.2081 | 1073.9 | 821.9 | |
| 1.24 | -40.00 | 0.63 | -40.00 | 3.94 | 238.33 | -7.08 | 36.81 | 0.2061 | 1012.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 6.76 | 237.94 | -7.47 | 31.28 | 0.2498 | 887.0 | 735.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 3.68 | 237.58 | -7.83 | 40.45 | 0.2106 | 944.0 | 766.7 | |
| 0.00 | 3.19 | 0.00 | 1.63 | 6.81 | 236.68 | -8.73 | 35.26 | 0.2622 | 722.0 | 552.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.37 | 235.46 | -9.95 | 39.91 | 0.2688 | 631.0 | 495.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
