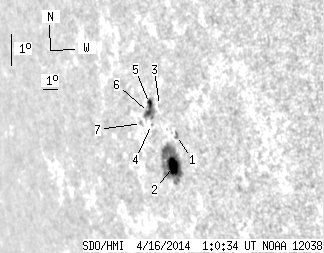

SDO HMI 2014-04-16 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.10 | 75.64 | 18.09 | 84.93 | -13.25 | 181.12 | -64.29 | 102.05 | 0.8986 | 199.5 | -75.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.65 | 0.00 | 2.89 | -12.81 | 181.96 | -63.45 | 101.56 | 0.8922 | -562.0 | -431.7 | |
| 10.79 | 55.47 | 12.01 | 61.95 | -13.71 | 181.31 | -64.10 | 102.57 | 0.8972 | 590.2 | 19.2 | |
| 0.00 | 1.15 | 0.00 | 1.28 | -11.82 | 181.21 | -64.20 | 100.46 | 0.8980 | -133.0 | -197.4 | |
| 0.00 | 0.44 | 0.00 | 0.51 | -12.34 | 180.39 | -65.02 | 101.04 | 0.9040 | -611.0 | -566.0 | |
| 2.74 | 14.16 | 3.13 | 16.21 | -11.70 | 180.54 | -64.87 | 100.33 | 0.9030 | 120.2 | -368.4 | |
| 2.57 | -5.00 | 2.95 | -5.00 | -11.96 | 180.35 | -65.06 | 100.62 | 0.9044 | -468.2 | 999999 | |
| 0.00 | 1.77 | 0.00 | 2.09 | -12.24 | 179.69 | -65.72 | 100.94 | 0.9091 | -370.0 | -220.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
