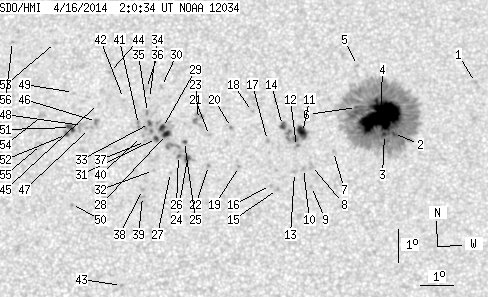

SDO HMI 2014-04-16 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.62 | 610.63 | 51.73 | 307.55 | 4.30 | 246.31 | 1.45 | 350.59 | 0.1806 | -397.4 | -217.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 0.90 | 5.50 | 250.70 | 5.84 | 332.11 | 0.2174 | -925.0 | -722.2 | |
| 1.33 | 454.03 | 0.67 | 228.71 | 3.93 | 248.20 | 3.34 | 340.53 | 0.1753 | -989.5 | -403.7 | |
| 1.68 | -2.00 | 0.85 | -2.00 | 3.90 | 247.93 | 3.07 | 341.95 | 0.1733 | -1233.4 | 999999 | |
| 73.27 | -2.00 | 36.91 | -2.00 | 4.45 | 247.81 | 2.95 | 343.51 | 0.1817 | -1452.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.01 | 247.13 | 2.27 | 348.89 | 0.2050 | 845.0 | 638.5 | |
| 0.88 | -2.00 | 0.45 | -2.00 | 4.72 | 247.09 | 2.23 | 347.73 | 0.1832 | -716.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.38 | 246.39 | 1.53 | 350.25 | 0.1581 | -873.0 | -673.4 | |
| 0.00 | 3.54 | 0.00 | 1.77 | 2.95 | 245.73 | 0.87 | 354.16 | 0.1492 | -807.0 | -732.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 2.31 | 245.73 | 0.87 | 353.70 | 0.1382 | -900.0 | -711.4 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 2.86 | 245.49 | 0.63 | 355.73 | 0.1473 | -815.0 | -686.6 | |
| 7.34 | 25.75 | 3.69 | 12.93 | 3.95 | 245.46 | 0.60 | 356.39 | 0.1662 | -1058.2 | -818.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 3.53 | 245.28 | 0.42 | 357.37 | 0.1587 | -1001.0 | -883.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.74 | 245.21 | 0.35 | 357.54 | 0.1449 | -821.0 | -477.1 | |
| 2.12 | -11.00 | 1.07 | -11.00 | 4.17 | 244.86 | -0.00 | 0.03 | 0.1696 | -864.5 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 2.22 | 244.70 | -0.16 | 1.17 | 0.1359 | -911.0 | -714.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.34 | 244.49 | -0.37 | 2.68 | 0.1381 | -701.0 | -580.8 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 3.71 | 244.40 | -0.46 | 2.83 | 0.1619 | -865.0 | -656.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 4.60 | 243.95 | -0.91 | 5.13 | 0.1777 | -753.0 | -580.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 2.92 | 243.56 | -1.30 | 8.75 | 0.1497 | -814.0 | -675.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 4.11 | 243.32 | -1.54 | 9.09 | 0.1707 | 862.0 | 669.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 3.87 | 242.65 | -2.21 | 13.21 | 0.1688 | 749.0 | 607.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 2.96 | 242.62 | -2.24 | 14.76 | 0.1536 | 814.0 | 711.4 | |
| 0.00 | 9.65 | 0.00 | 4.86 | 4.36 | 242.32 | -2.54 | 14.40 | 0.1784 | 726.0 | 730.2 | |
| 2.21 | 16.99 | 1.11 | 8.53 | 3.17 | 241.99 | -2.87 | 18.25 | 0.1603 | 1079.0 | 829.6 | |
| 0.71 | 1.86 | 0.36 | 0.93 | 3.69 | 241.90 | -2.96 | 17.80 | 0.1693 | 716.8 | 550.8 | |
| 0.35 | -24.00 | 0.18 | -24.00 | 3.27 | 241.72 | -3.14 | 19.65 | 0.1634 | 1124.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.75 | 241.48 | -3.38 | 22.22 | 0.1565 | 770.0 | 593.2 | |
| 3.36 | 17.17 | 1.69 | 8.64 | 3.91 | 241.36 | -3.50 | 20.38 | 0.1759 | 1178.1 | 556.0 | |
| 2.65 | -28.00 | 1.34 | -28.00 | 4.12 | 241.23 | -3.63 | 20.59 | 0.1801 | 1135.3 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 5.38 | 241.20 | -3.66 | 18.56 | 0.2007 | 699.0 | 520.2 | |
| 1.50 | 2.57 | 0.76 | 1.29 | 3.79 | 241.05 | -3.81 | 22.23 | 0.1759 | 1115.5 | 915.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.82 | 240.97 | -3.89 | 25.02 | 0.1611 | 874.0 | 674.0 | |
| 1.06 | 8.58 | 0.54 | 4.32 | 4.25 | 240.84 | -4.02 | 22.35 | 0.1846 | 1098.4 | 895.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.01 | 240.84 | -4.02 | 20.89 | 0.1968 | 724.0 | 573.5 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.58 | 240.78 | -4.08 | 21.98 | 0.1904 | 863.0 | 703.7 | |
| 0.00 | 2.39 | 0.00 | 1.21 | 5.32 | 240.75 | -4.11 | 20.78 | 0.2023 | 713.0 | 591.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.70 | 240.72 | -4.14 | 24.16 | 0.1767 | 731.0 | 656.8 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 2.24 | 240.64 | -4.22 | 28.55 | 0.1547 | 908.0 | 775.4 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 2.03 | 240.64 | -4.22 | 29.21 | 0.1515 | 837.0 | 757.3 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 3.85 | 240.60 | -4.26 | 24.43 | 0.1800 | 484.0 | 554.3 | |
| 0.00 | 2.92 | 0.00 | 1.47 | 4.22 | 240.51 | -4.35 | 24.06 | 0.1864 | 838.0 | 758.2 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 5.02 | 240.05 | -4.81 | 24.52 | 0.2022 | 496.0 | 570.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -0.66 | 240.00 | -4.86 | 44.92 | 0.1205 | 900.0 | 762.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.82 | 239.62 | -5.24 | 24.79 | 0.2177 | 685.0 | 538.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 4.87 | 239.29 | -5.57 | 28.17 | 0.2057 | 775.0 | 455.6 | |
| 0.00 | 2.57 | 0.00 | 1.30 | 4.32 | 239.24 | -5.62 | 29.74 | 0.1979 | 1126.0 | 956.5 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 4.11 | 239.03 | -5.83 | 31.21 | 0.1966 | 554.0 | 767.6 | |
| 0.00 | 6.81 | 0.00 | 3.44 | 4.21 | 238.81 | -6.05 | 31.88 | 0.1999 | 933.0 | 692.3 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 5.22 | 238.53 | -6.33 | 30.51 | 0.2172 | 616.0 | 481.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 1.81 | 238.49 | -6.37 | 41.02 | 0.1697 | 905.0 | 767.9 | |
| 3.10 | 7.96 | 1.57 | 4.03 | 4.15 | 238.45 | -6.41 | 33.55 | 0.2024 | 1097.9 | 833.3 | |
| 1.06 | -51.00 | 0.54 | -51.00 | 3.94 | 238.33 | -6.53 | 34.64 | 0.2005 | 1055.0 | 999999 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 6.76 | 237.97 | -6.89 | 29.28 | 0.2448 | 892.0 | 600.8 | |
| 0.00 | 4.78 | 0.00 | 2.42 | 4.53 | 237.60 | -7.26 | 35.89 | 0.2160 | 689.0 | 512.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 3.64 | 237.57 | -7.29 | 38.53 | 0.2042 | 844.0 | 649.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.81 | 236.65 | -8.21 | 33.63 | 0.2571 | 716.0 | 562.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
