SDO HMI 2014-04-16 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.58 | 307.47 | 40.54 | 152.81 | -9.46 | 245.36 | 0.50 | 186.75 | 0.0808 | 327.6 | 114.2 | |
|
previous
or next observation for the same group /

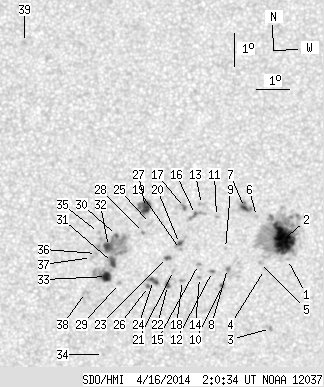

back to the solar disc SDO HMI 2014-04-16 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.92 | 247.80 | 2.94 | 213.49 | 0.0920 | 787.0 | 528.5 | |
| 40.79 | 136.18 | 20.28 | 67.67 | -9.32 | 247.67 | 2.81 | 216.34 | 0.0821 | 1238.0 | 399.9 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -12.01 | 247.29 | 2.43 | 200.26 | 0.1205 | 1020.0 | 814.0 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.23 | 247.10 | 2.24 | 205.23 | 0.0906 | 695.0 | 510.2 | |
| 0.00 | 1.86 | 0.00 | 0.92 | -10.02 | 246.98 | 2.12 | 205.01 | 0.0864 | 819.0 | 646.5 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -8.63 | 246.85 | 1.99 | 212.52 | 0.0641 | 981.0 | 727.6 | |
| 2.65 | 8.41 | 1.32 | 4.17 | -8.36 | 246.48 | 1.62 | 209.72 | 0.0567 | 760.1 | 453.7 | |
| 0.35 | 1.77 | 0.18 | 0.88 | -10.20 | 245.97 | 1.11 | 193.21 | 0.0836 | -1033.0 | -744.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.59 | 245.91 | 1.05 | 194.31 | 0.0731 | 792.0 | 564.1 | |
| 0.97 | 2.12 | 0.48 | 1.06 | -10.71 | 245.82 | 0.96 | 190.33 | 0.0919 | 1008.5 | 732.2 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -8.63 | 245.63 | 0.77 | 193.89 | 0.0556 | -751.0 | -545.6 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -10.29 | 245.51 | 0.65 | 187.69 | 0.0837 | 871.0 | 592.0 | |
| 0.00 | 2.74 | 0.00 | 1.36 | -8.27 | 245.17 | 0.31 | 186.52 | 0.0480 | -898.0 | -684.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.47 | 245.11 | 0.25 | 182.89 | 0.0862 | -789.0 | -543.2 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -10.08 | 245.08 | 0.22 | 182.76 | 0.0794 | -887.0 | -625.0 | |
| 0.80 | 7.88 | 0.40 | 3.91 | -8.57 | 244.99 | 0.13 | 182.46 | 0.0530 | -967.1 | -747.2 | |
| 0.80 | 3.45 | 0.39 | 1.71 | -8.36 | 244.66 | -0.20 | 175.91 | 0.0493 | -1139.4 | -768.0 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -10.56 | 244.59 | -0.27 | 176.98 | 0.0878 | -941.0 | -680.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.62 | 244.53 | -0.33 | 175.47 | 0.0716 | -994.0 | -770.5 | |
| 1.42 | 5.66 | 0.70 | 2.81 | -9.44 | 244.50 | -0.36 | 174.82 | 0.0685 | -1154.9 | -739.8 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -10.26 | 244.32 | -0.54 | 173.52 | 0.0830 | -957.0 | -710.1 | |
| 1.68 | 4.42 | 0.84 | 2.20 | -10.71 | 244.13 | -0.73 | 172.10 | 0.0912 | -1064.3 | -745.1 | |
| 1.42 | 2.92 | 0.70 | 1.45 | -9.86 | 244.14 | -0.72 | 170.60 | 0.0766 | -1042.3 | -804.9 | |
| 2.83 | 6.37 | 1.41 | 3.17 | -10.56 | 243.70 | -1.16 | 167.21 | 0.0899 | -1096.5 | -713.8 | |
| 0.00 | 2.21 | 0.00 | 1.10 | -8.84 | 243.62 | -1.24 | 159.58 | 0.0615 | -695.0 | -486.6 | |
| 0.53 | 1.77 | 0.26 | 0.88 | -10.74 | 243.55 | -1.31 | 166.06 | 0.0936 | -942.2 | -811.6 | |
| 8.76 | 14.33 | 4.35 | 7.11 | -8.36 | 243.47 | -1.39 | 153.92 | 0.0548 | 1118.0 | 799.9 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.11 | 243.41 | -1.45 | 158.04 | 0.0673 | -946.0 | -771.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.64 | 242.66 | -2.20 | 157.02 | 0.0969 | -906.0 | -671.6 | |
| 0.97 | 75.30 | 0.48 | 37.44 | -9.20 | 242.58 | -2.28 | 148.36 | 0.0751 | 839.3 | -71.3 | |
| 4.07 | -30.00 | 2.02 | -30.00 | -10.01 | 242.46 | -2.41 | 152.03 | 0.0885 | -976.0 | 999999 | |
| 6.46 | -30.00 | 3.21 | -30.00 | -9.53 | 242.34 | -2.52 | 147.98 | 0.0822 | 627.7 | 999999 | |
| 7.08 | -30.00 | 3.52 | -30.00 | -10.43 | 242.27 | -2.59 | 152.42 | 0.0965 | -1012.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.79 | 242.15 | -2.71 | 159.91 | 0.1349 | 797.0 | 515.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.10 | 242.04 | -2.82 | 141.90 | 0.0792 | 931.0 | 785.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.73 | 241.97 | -2.89 | 145.77 | 0.0888 | 847.0 | 720.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.85 | 241.81 | -3.05 | 145.15 | 0.0920 | 723.0 | 657.9 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.91 | 241.62 | -3.24 | 149.31 | 0.1093 | 700.0 | 694.0 | |
| 0.00 | 2.48 | 0.00 | 1.23 | -3.37 | 239.84 | -5.02 | 66.66 | 0.0956 | 717.0 | 608.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
