SDO HMI 2014-04-16 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.27 | 332.79 | 36.90 | 203.44 | 11.97 | 275.21 | 31.44 | 299.39 | 0.5878 | -905.9 | -332.5 | |
|
previous
or next observation for the same group /

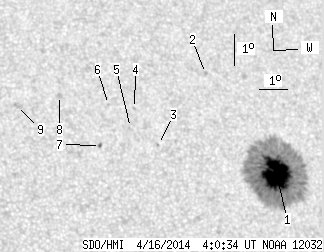

back to the solar disc SDO HMI 2014-04-16 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.83 | 320.31 | 36.64 | 196.18 | 11.90 | 275.44 | 31.67 | 299.07 | 0.5901 | -1213.4 | -364.1 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 15.00 | 273.32 | 29.56 | 305.40 | 0.5869 | -629.0 | -589.0 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 12.65 | 271.34 | 27.58 | 303.71 | 0.5452 | 723.0 | 618.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 13.76 | 270.64 | 26.88 | 306.10 | 0.5457 | 613.0 | 491.2 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 13.14 | 270.43 | 26.67 | 305.37 | 0.5381 | 557.0 | 550.7 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.85 | 269.75 | 25.99 | 307.15 | 0.5360 | 590.0 | 427.0 | |
| 0.44 | 1.42 | 0.26 | 0.82 | 12.53 | 269.33 | 25.57 | 305.53 | 0.5197 | 723.8 | 634.8 | |
| 0.00 | 2.66 | 0.00 | 1.54 | 14.06 | 268.10 | 24.34 | 309.29 | 0.5186 | 717.0 | 626.1 | |
| 0.00 | 3.98 | 0.00 | 2.27 | 13.69 | 266.64 | 22.88 | 310.44 | 0.4983 | 302.0 | 396.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
