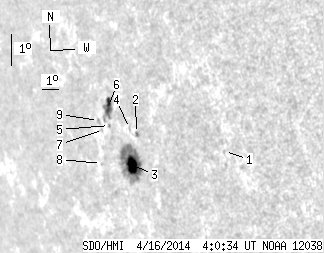

SDO HMI 2014-04-16 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.52 | 83.19 | 18.64 | 88.29 | -13.24 | 181.18 | -62.58 | 102.07 | 0.8855 | 128.4 | -50.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.95 | -13.72 | 186.99 | -56.77 | 102.81 | 0.8355 | 70.0 | 147.9 | |
| 0.53 | 1.86 | 0.55 | 1.92 | -12.76 | 182.00 | -61.76 | 101.53 | 0.8788 | -561.3 | -511.2 | |
| 9.91 | 59.65 | 10.44 | 63.05 | -13.69 | 181.32 | -62.44 | 102.58 | 0.8844 | 673.8 | 49.0 | |
| 0.00 | 1.33 | 0.00 | 1.38 | -12.57 | 181.62 | -62.14 | 101.32 | 0.8819 | -443.0 | -363.9 | |
| 0.00 | 1.06 | 0.00 | 1.15 | -12.37 | 180.35 | -63.41 | 101.08 | 0.8920 | -640.0 | -586.9 | |
| 7.08 | 15.49 | 7.65 | 16.78 | -11.81 | 180.52 | -63.24 | 100.44 | 0.8906 | -192.7 | -387.4 | |
| 0.00 | 0.44 | 0.00 | 0.49 | -12.46 | 179.89 | -63.87 | 101.18 | 0.8955 | -275.0 | -303.0 | |
| 0.00 | 0.71 | 0.00 | 0.80 | -13.45 | 179.27 | -64.50 | 102.28 | 0.9002 | -490.0 | -400.2 | |
| 0.00 | 1.59 | 0.00 | 1.77 | -12.16 | 179.67 | -64.09 | 100.85 | 0.8972 | -309.0 | -206.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
