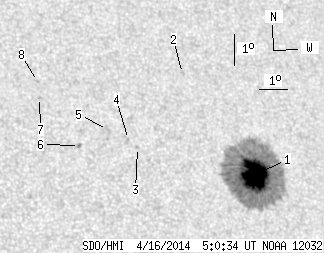

SDO HMI 2014-04-16 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.90 | 331.76 | 31.36 | 204.11 | 11.98 | 275.26 | 32.04 | 298.93 | 0.5952 | -961.6 | -357.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.90 | 319.54 | 31.36 | 196.90 | 11.93 | 275.44 | 32.22 | 298.69 | 0.5970 | -1283.9 | -389.7 | |
| 0.00 | 1.86 | 0.00 | 1.14 | 15.03 | 273.28 | 30.07 | 304.98 | 0.5929 | -390.0 | -471.5 | |
| 0.00 | 1.50 | 0.00 | 0.89 | 12.58 | 271.35 | 28.13 | 303.08 | 0.5514 | 601.0 | 496.1 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 12.82 | 271.06 | 27.85 | 303.72 | 0.5497 | 626.0 | 446.5 | |
| 0.00 | 3.28 | 0.00 | 1.93 | 13.11 | 270.36 | 27.15 | 304.83 | 0.5436 | 248.0 | 491.7 | |
| 0.00 | 1.86 | 0.00 | 1.08 | 12.55 | 269.33 | 26.12 | 305.00 | 0.5266 | 913.0 | 684.2 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 14.03 | 268.13 | 24.92 | 308.58 | 0.5249 | 795.0 | 674.4 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 14.54 | 268.12 | 24.91 | 309.37 | 0.5294 | 583.0 | 447.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
