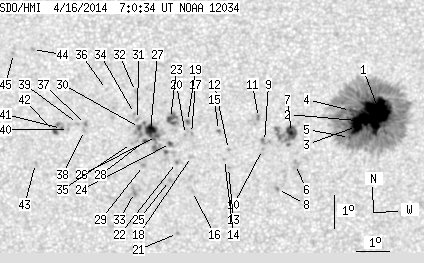

SDO HMI 2014-04-16 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.67 | 610.73 | 54.34 | 308.31 | 4.32 | 246.47 | 4.35 | 337.23 | 0.1927 | -456.0 | -226.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.37 | 458.11 | 20.43 | 231.64 | 4.69 | 248.13 | 6.01 | 329.42 | 0.2061 | -1519.6 | -399.8 | |
| 28.24 | -1.00 | 14.27 | -1.00 | 4.32 | 247.79 | 5.67 | 329.94 | 0.1977 | -1571.1 | 999999 | |
| 12.04 | -1.00 | 6.08 | -1.00 | 4.16 | 247.46 | 5.34 | 331.05 | 0.1926 | -1490.7 | 999999 | |
| 0.27 | -1.00 | 0.13 | -1.00 | 4.65 | 247.28 | 5.16 | 333.02 | 0.1986 | -931.7 | 999999 | |
| 0.27 | -1.00 | 0.13 | -1.00 | 3.83 | 247.24 | 5.12 | 331.18 | 0.1857 | -1208.3 | 999999 | |
| 0.00 | 5.40 | 0.00 | 2.71 | 2.99 | 245.61 | 3.49 | 337.66 | 0.1606 | -751.0 | -770.9 | |
| 8.59 | 27.88 | 4.32 | 14.02 | 3.97 | 245.49 | 3.37 | 340.38 | 0.1756 | -1110.8 | -843.3 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 2.23 | 245.06 | 2.94 | 339.16 | 0.1448 | -1009.0 | -730.4 | |
| 0.00 | 4.60 | 0.00 | 2.31 | 3.69 | 244.67 | 2.56 | 344.45 | 0.1668 | -786.0 | -794.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 3.45 | 244.61 | 2.49 | 344.41 | 0.1624 | -891.0 | -698.1 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 4.42 | 244.50 | 2.38 | 346.52 | 0.1782 | -1079.0 | -842.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.44 | 243.59 | 1.47 | 350.67 | 0.1586 | 902.0 | 702.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.90 | 243.59 | 1.47 | 350.08 | 0.1492 | -827.0 | -633.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.14 | 243.47 | 1.35 | 351.13 | 0.1530 | 580.0 | 446.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.02 | 243.29 | 1.17 | 353.00 | 0.1677 | 711.0 | 578.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.17 | 242.50 | 0.38 | 357.14 | 0.1345 | 711.0 | 620.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.93 | 242.47 | 0.36 | 357.84 | 0.1650 | 799.0 | 645.1 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 3.23 | 242.47 | 0.35 | 357.68 | 0.1529 | -424.0 | -329.6 | |
| 0.53 | 1.95 | 0.27 | 0.98 | 4.30 | 242.35 | 0.24 | 358.62 | 0.1713 | 1031.2 | 812.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.90 | 242.29 | 0.17 | 358.94 | 0.1644 | 831.0 | 677.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 0.89 | 242.05 | -0.07 | 0.63 | 0.1122 | 941.0 | 698.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 3.05 | 242.02 | -0.10 | 0.66 | 0.1496 | 1111.0 | 901.8 | |
| 2.57 | 9.47 | 1.29 | 4.76 | 4.39 | 241.84 | -0.28 | 1.61 | 0.1729 | 1097.2 | 840.2 | |
| 0.89 | 2.39 | 0.44 | 1.20 | 3.63 | 241.84 | -0.28 | 1.75 | 0.1597 | 611.4 | 379.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.50 | 241.81 | -0.31 | 2.21 | 0.1403 | 867.0 | 707.6 | |
| 0.89 | 51.79 | 0.44 | 26.00 | 3.84 | 241.42 | -0.70 | 4.29 | 0.1638 | 810.9 | 754.6 | |
| 8.85 | -26.00 | 4.45 | -26.00 | 4.02 | 241.24 | -0.88 | 5.29 | 0.1672 | 1304.1 | 999999 | |
| 1.15 | -26.00 | 0.58 | -26.00 | 3.72 | 241.09 | -1.03 | 6.39 | 0.1623 | 1135.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 2.96 | 241.03 | -1.09 | 7.36 | 0.1493 | 1020.0 | 850.1 | |
| 1.33 | -26.00 | 0.67 | -26.00 | 4.12 | 240.90 | -1.21 | 7.19 | 0.1695 | 1105.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 4.36 | 240.84 | -1.27 | 7.36 | 0.1738 | 850.0 | 714.5 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 5.22 | 240.78 | -1.33 | 7.10 | 0.1886 | 840.0 | 678.9 | |
| 0.00 | 3.72 | 0.00 | 1.86 | 2.14 | 240.75 | -1.36 | 10.12 | 0.1360 | 1044.0 | 859.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.54 | 240.75 | -1.36 | 7.73 | 0.1771 | 879.0 | 664.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.63 | 240.66 | -1.45 | 9.05 | 0.1617 | 871.0 | 757.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 5.28 | 239.91 | -2.21 | 11.59 | 0.1921 | 717.0 | 516.4 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.22 | 239.28 | -2.84 | 16.31 | 0.1769 | 1234.0 | 1046.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.03 | 239.25 | -2.87 | 16.77 | 0.1740 | 907.0 | 743.2 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 4.25 | 239.03 | -3.08 | 17.57 | 0.1786 | 889.0 | 720.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 4.07 | 238.76 | -3.36 | 19.34 | 0.1771 | 978.0 | 813.6 | |
| 0.44 | 4.60 | 0.22 | 2.32 | 4.10 | 238.55 | -3.57 | 20.40 | 0.1789 | 1186.4 | 971.0 | |
| 1.24 | 2.92 | 0.62 | 1.47 | 4.01 | 238.34 | -3.78 | 21.68 | 0.1787 | 1047.1 | 821.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.04 | 237.77 | -4.35 | 27.02 | 0.1675 | 820.0 | 690.8 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 6.53 | 237.66 | -4.46 | 20.34 | 0.2232 | 916.0 | 761.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 6.41 | 237.08 | -5.03 | 22.92 | 0.2250 | 827.0 | 618.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
