SDO HMI 2014-04-16 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.26 | 87.37 | 14.31 | 88.01 | -13.15 | 181.21 | -60.91 | 102.01 | 0.8718 | 269.4 | -49.4 | |
|
previous
or next observation for the same group /

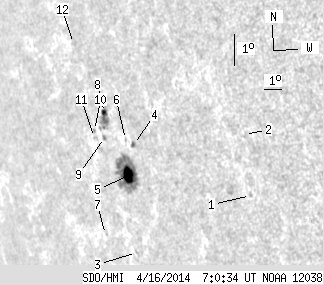

back to the solar disc SDO HMI 2014-04-16 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 1.49 | -14.82 | 187.96 | -54.16 | 104.32 | 0.8110 | 303.0 | 216.1 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -12.96 | 188.28 | -53.84 | 102.05 | 0.8067 | 214.0 | 265.8 | |
| 0.00 | 0.97 | 0.00 | 1.00 | -16.00 | 180.71 | -61.41 | 105.25 | 0.8768 | -373.0 | -329.4 | |
| 0.89 | 2.04 | 0.87 | 2.00 | -12.77 | 182.01 | -60.10 | 101.58 | 0.8651 | -552.1 | -521.9 | |
| 11.07 | 59.40 | 11.08 | 59.66 | -13.67 | 181.32 | -60.80 | 102.60 | 0.8711 | 665.4 | 56.0 | |
| 0.00 | 0.89 | 0.00 | 0.88 | -12.58 | 181.59 | -60.53 | 101.35 | 0.8687 | -455.0 | -405.7 | |
| 0.00 | 0.53 | 0.00 | 0.57 | -15.29 | 178.99 | -63.13 | 104.38 | 0.8902 | 394.0 | 390.0 | |
| 2.30 | 14.25 | 2.36 | 14.62 | -11.67 | 180.60 | -61.52 | 100.30 | 0.8769 | 199.3 | -360.8 | |
| 0.00 | 1.95 | 0.00 | 2.01 | -12.41 | 180.30 | -61.82 | 101.14 | 0.8793 | -622.0 | -557.7 | |
| 0.00 | 1.24 | 0.00 | 1.30 | -12.15 | 179.75 | -62.37 | 100.84 | 0.8838 | -359.0 | -256.8 | |
| 0.00 | 1.06 | 0.00 | 1.12 | -12.36 | 179.66 | -62.46 | 101.08 | 0.8845 | -384.0 | -335.9 | |
| 0.00 | 2.74 | 0.00 | 2.92 | -9.45 | 179.34 | -62.78 | 97.80 | 0.8872 | 198.0 | 172.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
