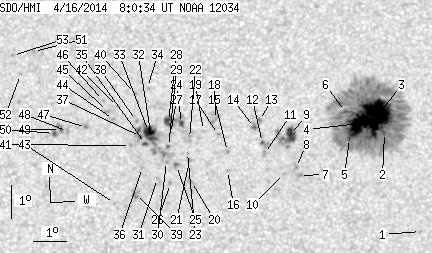

SDO HMI 2014-04-16 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.05 | 621.70 | 62.17 | 314.02 | 4.29 | 246.26 | 4.69 | 335.77 | 0.1949 | -451.4 | -184.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | 1.06 | 249.40 | 7.83 | 309.81 | 0.1782 | -871.0 | -724.0 | |
| 0.27 | 441.10 | 0.13 | 223.28 | 4.06 | 248.33 | 6.76 | 324.65 | 0.2039 | -1122.3 | -387.2 | |
| 56.57 | -2.00 | 28.65 | -2.00 | 4.57 | 248.12 | 6.55 | 326.90 | 0.2093 | -1454.7 | 999999 | |
| 34.88 | -2.00 | 17.63 | -2.00 | 4.32 | 247.58 | 6.01 | 328.51 | 0.2006 | -1512.6 | 999999 | |
| 0.27 | -2.00 | 0.13 | -2.00 | 3.86 | 247.27 | 5.70 | 328.63 | 0.1911 | -1241.7 | 999999 | |
| 0.89 | -2.00 | 0.45 | -2.00 | 4.69 | 247.15 | 5.58 | 331.23 | 0.2024 | -792.5 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 2.73 | 245.75 | 4.18 | 333.03 | 0.1612 | -962.0 | -886.0 | |
| 0.00 | 4.07 | 0.00 | 2.04 | 2.97 | 245.63 | 4.06 | 334.36 | 0.1641 | -950.0 | -761.1 | |
| 8.32 | 25.58 | 4.19 | 12.87 | 3.97 | 245.48 | 3.91 | 337.52 | 0.1789 | -1127.4 | -802.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.79 | 245.30 | 3.73 | 335.75 | 0.1588 | -973.0 | -692.5 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 3.39 | 244.70 | 3.13 | 340.61 | 0.1647 | -910.0 | -763.3 | |
| 0.53 | 4.69 | 0.27 | 2.36 | 3.73 | 244.64 | 3.07 | 341.59 | 0.1698 | -923.3 | -820.3 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 4.40 | 244.55 | 2.98 | 343.23 | 0.1804 | -932.0 | -807.9 | |
| 0.62 | 3.45 | 0.31 | 1.74 | 4.18 | 244.40 | 2.83 | 343.70 | 0.1761 | -1132.4 | -862.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 3.45 | 243.58 | 2.01 | 347.33 | 0.1603 | 822.0 | 683.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 2.87 | 243.58 | 2.01 | 346.50 | 0.1506 | -812.0 | -679.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.97 | 243.31 | 1.74 | 349.57 | 0.1682 | 868.0 | 622.4 | |
| 0.00 | 4.78 | 0.00 | 2.41 | 4.42 | 243.22 | 1.65 | 350.55 | 0.1757 | -86.0 | -279.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.09 | 242.86 | 1.29 | 352.34 | 0.1690 | 562.0 | 357.6 | |
| 0.00 | 3.19 | 0.00 | 1.59 | 2.53 | 242.49 | 0.92 | 353.44 | 0.1415 | 933.0 | 722.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 3.17 | 242.43 | 0.86 | 354.31 | 0.1524 | -808.0 | -574.3 | |
| 0.00 | 3.72 | 0.00 | 1.87 | 3.84 | 242.44 | 0.87 | 354.70 | 0.1640 | 776.0 | 510.2 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 3.42 | 242.37 | 0.80 | 354.84 | 0.1565 | -770.0 | -462.0 | |
| 1.33 | 19.74 | 0.67 | 9.93 | 4.30 | 242.20 | 0.62 | 356.35 | 0.1716 | 1104.1 | 751.1 | |
| 0.00 | 3.01 | 0.00 | 1.51 | 3.02 | 242.04 | 0.47 | 356.83 | 0.1493 | 919.0 | 794.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 2.47 | 241.86 | 0.29 | 357.91 | 0.1397 | 912.0 | 790.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.00 | 241.86 | 0.29 | 358.23 | 0.1660 | 894.0 | 740.4 | |
| 4.69 | -24.00 | 2.36 | -24.00 | 4.36 | 241.80 | 0.23 | 358.65 | 0.1723 | 1083.0 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.60 | 241.80 | 0.23 | 358.54 | 0.1591 | 827.0 | 667.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.14 | 241.74 | 0.17 | 358.87 | 0.1512 | 867.0 | 740.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.63 | 241.47 | -0.10 | 0.71 | 0.1422 | 1001.0 | 753.7 | |
| 3.45 | 51.17 | 1.73 | 25.69 | 3.84 | 241.29 | -0.28 | 1.72 | 0.1634 | 1099.3 | 732.9 | |
| 8.14 | -32.00 | 4.09 | -32.00 | 4.06 | 241.20 | -0.37 | 2.22 | 0.1671 | 1265.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 5.40 | 241.17 | -0.40 | 2.10 | 0.1903 | 654.0 | 513.7 | |
| 1.06 | -32.00 | 0.53 | -32.00 | 3.69 | 241.11 | -0.46 | 2.88 | 0.1609 | 1130.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 2.96 | 241.02 | -0.55 | 3.74 | 0.1483 | 1014.0 | 801.2 | |
| 0.71 | -32.00 | 0.36 | -32.00 | 3.91 | 240.96 | -0.61 | 3.73 | 0.1647 | 1125.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.39 | 240.84 | -0.73 | 4.24 | 0.1733 | 869.0 | 748.5 | |
| 0.00 | 5.84 | 0.00 | 2.92 | 2.17 | 240.81 | -0.76 | 5.69 | 0.1350 | 1007.0 | 850.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.22 | 240.81 | -0.76 | 4.07 | 0.1875 | 800.0 | 674.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.63 | 240.66 | -0.91 | 5.72 | 0.1604 | 888.0 | 764.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.82 | 240.26 | -1.31 | 7.21 | 0.1817 | 789.0 | 591.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 1.87 | 240.17 | -1.40 | 10.73 | 0.1314 | 811.0 | 690.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.43 | 240.14 | -1.43 | 8.18 | 0.1751 | 929.0 | 799.0 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 4.67 | 239.96 | -1.61 | 8.99 | 0.1798 | 908.0 | 719.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 5.01 | 239.84 | -1.73 | 9.35 | 0.1859 | 813.0 | 695.9 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 4.19 | 239.33 | -2.24 | 13.04 | 0.1736 | 1134.0 | 970.5 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 4.07 | 238.76 | -2.81 | 16.41 | 0.1742 | 960.0 | 718.2 | |
| 0.35 | 8.76 | 0.18 | 4.41 | 4.13 | 238.54 | -3.03 | 17.46 | 0.1762 | 1251.5 | 868.3 | |
| 0.97 | -49.00 | 0.49 | -49.00 | 4.01 | 238.36 | -3.21 | 18.66 | 0.1752 | 1085.5 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.52 | 237.72 | -3.85 | 17.77 | 0.2198 | 992.0 | 842.2 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 5.82 | 237.33 | -4.24 | 20.56 | 0.2106 | 780.0 | 515.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 6.41 | 237.08 | -4.49 | 20.67 | 0.2214 | 913.0 | 731.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
