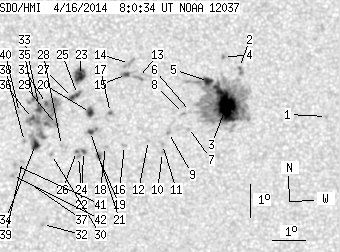

SDO HMI 2014-04-16 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.38 | 370.26 | 48.07 | 184.54 | -9.45 | 245.84 | 4.27 | 221.91 | 0.1080 | 464.3 | 155.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.76 | -9.58 | 251.14 | 9.57 | 246.20 | 0.1799 | 841.0 | 595.9 | |
| 0.35 | 4.07 | 0.18 | 2.03 | -8.14 | 248.43 | 6.86 | 248.53 | 0.1276 | -582.8 | 266.4 | |
| 58.07 | 195.81 | 29.01 | 97.79 | -9.29 | 248.05 | 6.48 | 239.18 | 0.1303 | 1332.6 | 424.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -7.84 | 247.94 | 6.37 | 249.42 | 0.1179 | 1082.0 | 871.3 | |
| 4.34 | -3.00 | 2.16 | -3.00 | -8.57 | 247.49 | 5.92 | 242.16 | 0.1158 | 1253.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.48 | 246.95 | 5.38 | 233.04 | 0.1163 | -447.0 | -325.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.96 | 246.90 | 5.33 | 229.54 | 0.1207 | 114.0 | 228.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.54 | 246.74 | 5.17 | 231.51 | 0.1140 | 831.0 | 475.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -10.12 | 246.28 | 4.71 | 225.12 | 0.1147 | -894.0 | -580.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -10.72 | 246.11 | 4.54 | 220.49 | 0.1203 | -955.0 | -732.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.48 | 246.11 | 4.54 | 221.83 | 0.1171 | -1066.0 | -861.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.36 | 245.67 | 4.10 | 219.71 | 0.1107 | 830.0 | 625.4 | |
| 0.00 | 3.98 | 0.00 | 1.98 | -8.46 | 245.35 | 3.78 | 231.59 | 0.0836 | -855.0 | -645.4 | |
| 0.00 | 4.78 | 0.00 | 2.37 | -8.04 | 245.07 | 3.50 | 233.76 | 0.0753 | -1058.0 | -755.5 | |
| 1.24 | 4.60 | 0.62 | 2.29 | -8.37 | 244.98 | 3.41 | 229.61 | 0.0777 | -1184.6 | -784.5 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.52 | 244.94 | 3.37 | 213.49 | 0.1052 | -840.0 | -577.0 | |
| 0.53 | 1.59 | 0.26 | 0.79 | -9.52 | 244.50 | 2.93 | 215.78 | 0.0867 | -991.3 | -789.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | -10.55 | 244.36 | 2.79 | 208.56 | 0.1005 | -988.0 | -715.8 | |
| 1.59 | 3.72 | 0.79 | 1.85 | -10.85 | 244.15 | 2.58 | 205.36 | 0.1035 | -1110.0 | -824.9 | |
| 3.81 | 5.49 | 1.89 | 2.73 | -9.52 | 243.89 | 2.32 | 209.72 | 0.0810 | -1171.3 | -864.1 | |
| 1.68 | 5.67 | 0.84 | 2.82 | -10.10 | 243.90 | 2.33 | 206.54 | 0.0898 | -1142.7 | -854.5 | |
| 0.80 | 1.77 | 0.40 | 0.88 | -10.70 | 243.69 | 2.12 | 201.84 | 0.0979 | -969.2 | -729.1 | |
| 9.47 | 13.54 | 4.70 | 6.72 | -8.41 | 243.55 | 1.98 | 214.07 | 0.0614 | 1090.2 | 721.0 | |
| 0.00 | 1.59 | 0.00 | 0.79 | -10.85 | 243.53 | 1.96 | 199.87 | 0.0995 | -851.0 | -739.4 | |
| 1.50 | 6.46 | 0.75 | 3.21 | -8.98 | 243.49 | 1.92 | 208.70 | 0.0694 | -952.5 | -745.4 | |
| 0.35 | 1.42 | 0.18 | 0.70 | -10.70 | 243.47 | 1.90 | 199.81 | 0.0966 | -1089.0 | -910.9 | |
| 1.77 | -25.00 | 0.88 | -25.00 | -9.07 | 243.34 | 1.77 | 206.17 | 0.0696 | -1129.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.52 | 243.01 | 1.44 | 195.81 | 0.0912 | -886.0 | -673.7 | |
| 0.35 | 81.00 | 0.18 | 40.24 | -9.89 | 242.86 | 1.29 | 196.17 | 0.0798 | -795.8 | -70.2 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -10.79 | 242.71 | 1.14 | 191.95 | 0.0945 | -687.0 | -406.8 | |
| 0.97 | -29.00 | 0.48 | -29.00 | -9.25 | 242.55 | 0.98 | 194.50 | 0.0677 | 777.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -12.91 | 242.44 | 0.86 | 186.52 | 0.1302 | 896.0 | 749.2 | |
| 3.01 | -29.00 | 1.49 | -29.00 | -9.41 | 242.34 | 0.77 | 191.01 | 0.0695 | 1128.7 | 999999 | |
| 5.05 | -29.00 | 2.51 | -29.00 | -10.49 | 242.22 | 0.65 | 187.28 | 0.0879 | -1135.1 | 999999 | |
| 0.00 | 6.11 | 0.00 | 3.03 | -9.13 | 242.15 | 0.58 | 189.05 | 0.0643 | 1118.0 | 875.5 | |
| 1.50 | -29.00 | 0.75 | -29.00 | -9.71 | 242.12 | 0.55 | 187.42 | 0.0741 | 855.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.61 | 241.94 | 0.37 | 183.42 | 0.1069 | 729.0 | 595.6 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -10.40 | 241.88 | 0.31 | 183.57 | 0.0858 | 430.0 | 353.4 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.00 | 241.82 | 0.25 | 182.54 | 0.0962 | 918.0 | 709.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.53 | 241.73 | 0.16 | 182.22 | 0.0704 | 872.0 | 738.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.13 | 241.60 | 0.03 | 180.34 | 0.0983 | 1051.0 | 895.8 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.43 | 241.51 | -0.06 | 179.44 | 0.1035 | 962.0 | 832.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
