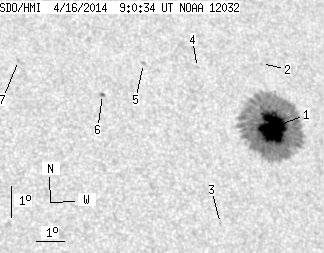

SDO HMI 2014-04-16 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.93 | 314.95 | 33.47 | 198.97 | 11.96 | 275.36 | 34.34 | 297.24 | 0.6229 | -1050.7 | -354.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.40 | 307.78 | 33.15 | 194.63 | 11.94 | 275.46 | 34.44 | 297.13 | 0.6239 | -1292.3 | -368.6 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 13.96 | 275.37 | 34.35 | 300.08 | 0.6350 | -122.0 | -85.6 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 8.82 | 273.17 | 32.15 | 293.90 | 0.5773 | -597.0 | -512.1 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 13.71 | 272.96 | 31.93 | 301.51 | 0.6049 | -416.0 | -340.2 | |
| 0.00 | 1.59 | 0.00 | 0.97 | 13.74 | 271.01 | 29.98 | 303.15 | 0.5820 | 730.0 | 582.2 | |
| 0.53 | 1.77 | 0.32 | 1.05 | 12.68 | 269.41 | 28.39 | 302.96 | 0.5550 | 792.3 | 615.4 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 13.63 | 266.61 | 25.59 | 307.21 | 0.5291 | 727.0 | 523.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
