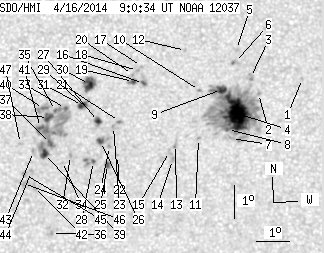

SDO HMI 2014-04-16 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.01 | 388.51 | 48.41 | 193.77 | -9.47 | 245.77 | 4.74 | 225.01 | 0.1140 | 477.9 | 174.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | -8.20 | 250.09 | 9.07 | 252.86 | 0.1640 | 793.0 | 645.6 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -8.67 | 248.75 | 7.73 | 247.17 | 0.1449 | 771.0 | 539.5 | |
| 0.00 | 3.19 | 0.00 | 1.59 | -8.19 | 248.49 | 7.47 | 249.72 | 0.1378 | 177.0 | 239.7 | |
| 54.62 | 195.45 | 27.32 | 97.74 | -9.28 | 248.09 | 7.06 | 241.30 | 0.1390 | 1355.0 | 451.9 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -7.35 | 248.05 | 7.03 | 254.86 | 0.1263 | 742.0 | 636.3 | |
| 0.00 | 2.66 | 0.00 | 1.33 | -7.74 | 248.00 | 6.97 | 251.75 | 0.1273 | 1010.0 | 812.0 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.03 | 247.95 | 6.92 | 236.17 | 0.1435 | 23.0 | -16.6 | |
| 0.62 | -4.00 | 0.31 | -4.00 | -9.76 | 247.82 | 6.79 | 237.31 | 0.1392 | 965.6 | 999999 | |
| 5.40 | -4.00 | 2.70 | -4.00 | -8.56 | 247.61 | 6.59 | 244.62 | 0.1262 | 1189.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -8.59 | 246.94 | 5.92 | 241.94 | 0.1160 | 993.0 | 718.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -10.04 | 246.93 | 5.91 | 231.88 | 0.1294 | 711.0 | 501.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -7.39 | 246.50 | 5.47 | 250.59 | 0.1008 | -856.0 | -586.2 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -10.23 | 246.23 | 5.21 | 227.21 | 0.1222 | -777.0 | -665.6 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -10.68 | 246.14 | 5.12 | 224.09 | 0.1266 | -914.0 | -698.2 | |
| 0.00 | 2.30 | 0.00 | 1.15 | -10.44 | 246.05 | 5.02 | 224.93 | 0.1225 | -796.0 | -741.3 | |
| 1.15 | 3.54 | 0.57 | 1.76 | -8.39 | 245.23 | 4.20 | 235.08 | 0.0889 | -944.2 | -382.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -7.88 | 245.16 | 4.14 | 239.74 | 0.0831 | -865.0 | -728.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.00 | 245.04 | 4.02 | 237.74 | 0.0824 | -886.0 | -730.1 | |
| 1.59 | 3.54 | 0.79 | 1.76 | -8.34 | 244.92 | 3.90 | 233.62 | 0.0840 | -1194.5 | -988.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -8.13 | 244.89 | 3.87 | 235.49 | 0.0814 | -1038.0 | -825.8 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -9.54 | 244.51 | 3.48 | 220.33 | 0.0930 | -953.0 | -734.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.57 | 244.45 | 3.43 | 213.65 | 0.1067 | -853.0 | -649.5 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -9.69 | 244.32 | 3.30 | 217.80 | 0.0930 | -1011.0 | -758.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.30 | 244.21 | 3.18 | 213.15 | 0.1004 | -1004.0 | -834.8 | |
| 1.50 | 3.10 | 0.75 | 1.54 | -10.84 | 244.15 | 3.13 | 209.92 | 0.1079 | -1132.9 | -874.7 | |
| 2.48 | 7.61 | 1.23 | 3.79 | -10.15 | 243.93 | 2.91 | 211.63 | 0.0956 | -1231.8 | -842.1 | |
| 2.48 | 5.75 | 1.23 | 2.86 | -9.55 | 243.86 | 2.84 | 214.72 | 0.0862 | -1220.0 | -921.3 | |
| 0.71 | 7.44 | 0.35 | 3.70 | -10.75 | 243.72 | 2.70 | 206.80 | 0.1030 | -936.1 | -792.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -9.28 | 243.65 | 2.63 | 214.49 | 0.0802 | -820.0 | -648.8 | |
| 8.67 | 13.63 | 4.31 | 6.77 | -8.43 | 243.58 | 2.56 | 220.84 | 0.0679 | 1081.0 | 759.2 | |
| 3.98 | 6.82 | 1.98 | 3.39 | -9.06 | 243.37 | 2.35 | 213.09 | 0.0745 | -1023.7 | -646.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.57 | 243.02 | 1.99 | 201.14 | 0.0952 | -906.0 | -750.7 | |
| 0.71 | 78.69 | 0.35 | 39.10 | -9.16 | 242.86 | 1.83 | 206.36 | 0.0714 | 740.0 | -119.8 | |
| 0.00 | 0.71 | 0.00 | 0.35 | -10.76 | 242.77 | 1.75 | 198.13 | 0.0967 | -172.0 | -275.0 | |
| 0.62 | -33.00 | 0.31 | -33.00 | -9.22 | 242.55 | 1.53 | 202.12 | 0.0702 | 944.6 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.28 | -12.93 | 242.44 | 1.42 | 190.58 | 0.1321 | 912.0 | 717.4 | |
| 1.77 | -33.00 | 0.88 | -33.00 | -10.21 | 242.40 | 1.38 | 196.09 | 0.0858 | -927.8 | 999999 | |
| 4.43 | -33.00 | 2.20 | -33.00 | -9.43 | 242.34 | 1.32 | 198.31 | 0.0724 | 1065.9 | 999999 | |
| 4.51 | -33.00 | 2.25 | -33.00 | -10.51 | 242.22 | 1.20 | 193.23 | 0.0901 | -1170.0 | 999999 | |
| 0.00 | 7.61 | 0.00 | 3.78 | -9.16 | 242.19 | 1.16 | 197.45 | 0.0671 | 1188.0 | 832.3 | |
| 1.77 | -33.00 | 0.88 | -33.00 | -9.73 | 242.10 | 1.07 | 194.05 | 0.0763 | 877.7 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.68 | -11.51 | 241.92 | 0.89 | 188.29 | 0.1062 | 913.0 | 678.1 | |
| 0.00 | 2.21 | 0.00 | 1.10 | -10.45 | 241.88 | 0.86 | 189.70 | 0.0879 | 90.0 | 175.2 | |
| 0.00 | 2.21 | 0.00 | 1.10 | -11.06 | 241.82 | 0.80 | 188.05 | 0.0982 | 807.0 | 627.6 | |
| 0.00 | 2.74 | 0.00 | 1.37 | -11.15 | 241.61 | 0.58 | 185.81 | 0.0993 | 1001.0 | 816.9 | |
| 0.00 | 5.40 | 0.00 | 2.69 | -11.42 | 241.58 | 0.55 | 185.26 | 0.1040 | 929.0 | 656.6 | |
| 0.00 | 1.59 | 0.00 | 0.79 | -10.21 | 241.49 | 0.46 | 185.52 | 0.0828 | 754.0 | 533.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
