SDO HMI 2014-04-16 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.49 | 643.14 | 64.00 | 325.32 | 4.33 | 246.07 | 5.59 | 331.82 | 0.2020 | -336.1 | -166.1 | |
|
previous
or next observation for the same group /

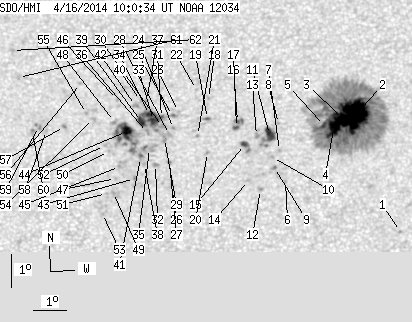

back to the solar disc SDO HMI 2014-04-16 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | 1.06 | 249.46 | 8.99 | 305.91 | 0.1937 | -822.0 | -685.2 | |
| 48.59 | 431.67 | 24.68 | 219.01 | 4.63 | 248.15 | 7.68 | 322.74 | 0.2209 | -1436.0 | -404.2 | |
| 21.07 | -2.00 | 10.68 | -2.00 | 4.47 | 247.72 | 7.25 | 323.89 | 0.2144 | -1603.8 | 999999 | |
| 14.69 | -2.00 | 7.44 | -2.00 | 4.16 | 247.45 | 6.97 | 324.09 | 0.2074 | -1440.5 | 999999 | |
| 2.66 | -2.00 | 1.34 | -2.00 | 4.25 | 247.18 | 6.70 | 325.42 | 0.2059 | -961.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 2.54 | 245.98 | 5.50 | 325.50 | 0.1699 | -940.0 | -742.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 3.48 | 245.80 | 5.33 | 329.23 | 0.1820 | -878.0 | -630.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 4.30 | 245.78 | 5.30 | 331.51 | 0.1942 | 376.0 | 211.1 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 2.96 | 245.65 | 5.17 | 328.46 | 0.1730 | -1063.0 | -876.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 3.26 | 245.59 | 5.12 | 329.65 | 0.1770 | -865.0 | -682.9 | |
| 7.97 | 17.26 | 4.02 | 8.70 | 3.96 | 245.51 | 5.03 | 331.94 | 0.1868 | -1083.3 | -875.4 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 2.29 | 245.22 | 4.75 | 328.55 | 0.1592 | -1001.0 | -710.0 | |
| 0.00 | 2.66 | 0.00 | 1.34 | 3.93 | 245.11 | 4.64 | 333.76 | 0.1832 | -837.0 | -767.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 2.56 | 244.86 | 4.39 | 331.37 | 0.1602 | -817.0 | -583.0 | |
| 2.04 | 6.90 | 1.02 | 3.47 | 3.65 | 244.75 | 4.27 | 334.92 | 0.1762 | -944.5 | -809.7 | |
| 0.80 | 10.00 | 0.40 | 5.04 | 4.35 | 244.54 | 4.06 | 337.54 | 0.1858 | -961.1 | -800.2 | |
| 1.06 | -16.00 | 0.54 | -16.00 | 4.17 | 244.51 | 4.03 | 337.31 | 0.1827 | -1104.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.05 | 243.67 | 3.19 | 343.14 | 0.1921 | -802.0 | -571.7 | |
| 0.53 | 2.66 | 0.27 | 1.34 | 4.44 | 243.63 | 3.16 | 342.34 | 0.1819 | -811.2 | -474.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.40 | 243.63 | 3.15 | 340.46 | 0.1649 | 854.0 | 673.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.92 | 243.33 | 2.85 | 343.11 | 0.1718 | 712.0 | 530.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.33 | 243.31 | 2.83 | 345.32 | 0.1950 | -776.0 | -532.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.65 | 242.76 | 2.28 | 347.30 | 0.1815 | 230.0 | 194.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.13 | 242.61 | 2.13 | 347.51 | 0.1721 | 621.0 | 401.3 | |
| 0.00 | 4.07 | 0.00 | 2.05 | 4.53 | 242.58 | 2.10 | 348.14 | 0.1787 | 682.0 | 365.6 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 2.43 | 242.54 | 2.06 | 345.37 | 0.1432 | 840.0 | 612.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.10 | 242.48 | 2.01 | 346.84 | 0.1542 | -781.0 | -593.9 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 3.95 | 242.48 | 2.01 | 347.97 | 0.1686 | 23.0 | 69.0 | |
| 0.00 | 4.25 | 0.00 | 2.13 | 3.83 | 242.33 | 1.86 | 348.71 | 0.1660 | 818.0 | 606.5 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 4.19 | 242.27 | 1.80 | 349.47 | 0.1720 | 77.0 | 178.4 | |
| 0.62 | 31.95 | 0.31 | 16.07 | 4.47 | 242.25 | 1.77 | 349.92 | 0.1766 | 871.1 | 731.3 | |
| 0.00 | 2.83 | 0.00 | 1.42 | 3.03 | 242.06 | 1.58 | 349.47 | 0.1517 | 948.0 | 727.2 | |
| 6.55 | -31.00 | 3.29 | -31.00 | 4.38 | 242.00 | 1.53 | 351.19 | 0.1744 | 1040.2 | 999999 | |
| 5.84 | -31.00 | 2.94 | -31.00 | 4.56 | 241.88 | 1.41 | 352.02 | 0.1772 | 809.2 | 999999 | |
| 0.00 | 8.41 | 0.00 | 4.22 | 3.52 | 241.88 | 1.40 | 351.13 | 0.1594 | 146.0 | 183.2 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 4.01 | 241.82 | 1.35 | 351.93 | 0.1676 | 913.0 | 834.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 4.99 | 241.79 | 1.32 | 352.82 | 0.1843 | 172.0 | 147.1 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 3.03 | 241.73 | 1.25 | 351.63 | 0.1507 | 815.0 | 668.8 | |
| 4.60 | -31.00 | 2.31 | -31.00 | 4.34 | 241.64 | 1.17 | 353.24 | 0.1730 | 1153.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 4.99 | 241.61 | 1.14 | 353.80 | 0.1839 | 664.0 | 620.0 | |
| 0.00 | 3.19 | 0.00 | 1.60 | 3.25 | 241.61 | 1.13 | 352.61 | 0.1541 | 1043.0 | 813.8 | |
| 0.00 | 3.63 | 0.00 | 1.83 | 4.83 | 241.46 | 0.99 | 354.54 | 0.1810 | 944.0 | 719.3 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 2.61 | 241.43 | 0.95 | 353.30 | 0.1427 | 1059.0 | 852.4 | |
| 9.47 | 46.73 | 4.76 | 23.47 | 4.04 | 241.19 | 0.71 | 355.72 | 0.1670 | 1278.5 | 816.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.97 | 240.98 | 0.50 | 356.62 | 0.1483 | 982.0 | 863.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.02 | 240.92 | 0.44 | 357.59 | 0.1836 | 854.0 | 682.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 2.61 | 240.85 | 0.38 | 357.32 | 0.1419 | 915.0 | 670.9 | |
| 0.00 | 2.66 | 0.00 | 1.34 | 4.34 | 240.83 | 0.35 | 357.95 | 0.1719 | 766.0 | 644.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 2.18 | 240.79 | 0.32 | 357.63 | 0.1345 | 980.0 | 834.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 3.43 | 240.64 | 0.17 | 358.92 | 0.1560 | 773.0 | 671.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 2.15 | 240.58 | 0.11 | 359.20 | 0.1338 | 748.0 | 618.8 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 3.61 | 240.52 | 0.05 | 359.70 | 0.1592 | 700.0 | 555.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 1.55 | 240.46 | -0.01 | 0.12 | 0.1233 | 837.0 | 793.8 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 4.44 | 240.19 | -0.28 | 1.63 | 0.1735 | 1090.0 | 831.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.59 | 239.98 | -0.49 | 2.80 | 0.1762 | 1002.0 | 801.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 5.51 | 239.80 | -0.67 | 3.51 | 0.1922 | 730.0 | 499.4 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.19 | 239.32 | -1.16 | 6.82 | 0.1704 | 1221.0 | 981.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.07 | 238.78 | -1.70 | 10.09 | 0.1697 | 989.0 | 738.7 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 4.20 | 238.53 | -1.94 | 11.34 | 0.1726 | 1010.0 | 932.5 | |
| 0.00 | 3.10 | 0.00 | 1.56 | 4.02 | 238.35 | -2.12 | 12.60 | 0.1701 | 894.0 | 776.4 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 5.70 | 237.93 | -2.55 | 12.84 | 0.2001 | 706.0 | 559.0 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 6.53 | 237.74 | -2.73 | 12.81 | 0.2146 | 967.0 | 791.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
