SDO HMI 2014-04-16 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.83 | 851.87 | 78.84 | 449.18 | -15.83 | 223.57 | -16.91 | 124.21 | 0.3374 | 325.2 | 146.5 | |
|
previous
or next observation for the same group /

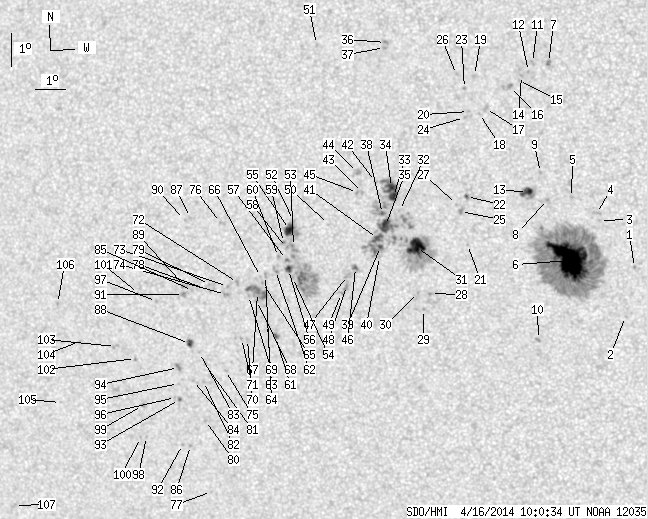

back to the solar disc SDO HMI 2014-04-16 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | -16.45 | 229.68 | -10.80 | 136.83 | 0.2637 | -785.0 | -563.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.95 | 229.30 | -11.18 | 139.67 | 0.2862 | 656.0 | 540.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -14.99 | 228.65 | -11.83 | 130.11 | 0.2600 | -776.0 | -583.9 | |
| 0.00 | 3.19 | 0.00 | 1.63 | -14.77 | 228.57 | -11.91 | 129.26 | 0.2589 | -865.0 | -684.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -14.27 | 227.80 | -12.68 | 126.03 | 0.2642 | -860.0 | -633.0 | |
| 86.92 | 376.18 | 44.91 | 194.40 | -16.19 | 227.65 | -12.83 | 131.37 | 0.2854 | 1379.8 | 380.7 | |
| 0.00 | 2.66 | 0.00 | 1.35 | -10.17 | 227.28 | -13.19 | 110.46 | 0.2409 | 1138.0 | 874.2 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -14.31 | 227.03 | -13.44 | 124.66 | 0.2751 | -889.0 | -822.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.49 | 226.86 | -13.62 | 121.73 | 0.2704 | -860.0 | -669.1 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -18.60 | 226.42 | -14.05 | 134.89 | 0.3262 | 896.0 | 693.0 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -10.16 | 226.78 | -13.70 | 109.78 | 0.2488 | 886.0 | 765.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.42 | 226.64 | -13.83 | 110.63 | 0.2524 | 1003.0 | 856.5 | |
| 5.66 | 12.48 | 2.92 | 6.44 | -14.09 | 226.41 | -14.07 | 122.82 | 0.2818 | -1148.5 | -727.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -10.54 | 226.42 | -14.06 | 110.78 | 0.2566 | 942.0 | 797.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -10.69 | 226.31 | -14.16 | 111.20 | 0.2590 | 755.0 | 621.5 | |
| 0.00 | 2.66 | 0.00 | 1.36 | -10.86 | 226.02 | -14.46 | 111.46 | 0.2646 | 1089.0 | 917.3 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -11.51 | 225.22 | -15.25 | 112.72 | 0.2807 | 895.0 | 714.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.65 | 225.02 | -15.45 | 112.96 | 0.2846 | 747.0 | 588.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -10.50 | 224.93 | -15.55 | 108.97 | 0.2799 | 778.0 | 469.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.58 | 224.68 | -15.80 | 112.32 | 0.2896 | 782.0 | 617.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -15.62 | 224.36 | -16.12 | 123.85 | 0.3233 | -779.0 | -635.5 | |
| 0.62 | 2.04 | 0.32 | 1.06 | -14.16 | 224.44 | -16.03 | 119.92 | 0.3104 | -796.7 | -650.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.89 | 224.59 | -15.89 | 109.92 | 0.2872 | 862.0 | 681.3 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -11.76 | 224.54 | -15.94 | 112.74 | 0.2928 | 740.0 | 565.1 | |
| 0.00 | 2.39 | 0.00 | 1.25 | -14.61 | 224.21 | -16.26 | 120.87 | 0.3171 | 940.0 | 825.5 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.46 | 224.36 | -16.12 | 108.26 | 0.2887 | 812.0 | 686.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -14.39 | 224.10 | -16.37 | 120.10 | 0.3170 | 745.0 | 577.0 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -17.09 | 223.02 | -17.46 | 125.56 | 0.3541 | 1012.0 | 847.4 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -17.57 | 222.74 | -17.74 | 126.31 | 0.3620 | 753.0 | 674.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -17.04 | 222.62 | -17.85 | 124.90 | 0.3589 | 773.0 | 590.6 | |
| 19.83 | 87.45 | 10.46 | 46.18 | -15.67 | 222.69 | -17.79 | 121.59 | 0.3468 | 1204.0 | 334.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.52 | 222.24 | -18.24 | 118.05 | 0.3448 | 891.0 | 703.5 | |
| 4.69 | 121.79 | 2.47 | 64.46 | -14.09 | 222.08 | -18.40 | 116.72 | 0.3442 | 1156.9 | 609.2 | |
| 4.96 | -33.00 | 2.61 | -33.00 | -13.82 | 222.03 | -18.44 | 115.93 | 0.3431 | 1134.6 | 999999 | |
| 7.88 | -33.00 | 4.17 | -33.00 | -14.96 | 221.74 | -18.74 | 118.61 | 0.3551 | 981.6 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -9.43 | 222.15 | -18.33 | 103.28 | 0.3202 | 872.0 | 772.6 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -9.58 | 222.11 | -18.37 | 103.72 | 0.3213 | 935.0 | 758.4 | |
| 0.62 | -33.00 | 0.33 | -33.00 | -14.60 | 221.67 | -18.81 | 117.59 | 0.3535 | 957.7 | 999999 | |
| 1.33 | -33.00 | 0.71 | -33.00 | -15.60 | 221.51 | -18.97 | 119.95 | 0.3628 | 905.9 | 999999 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -15.90 | 221.45 | -19.03 | 120.62 | 0.3659 | 117.0 | 137.5 | |
| 3.89 | -33.00 | 2.07 | -33.00 | -15.35 | 221.44 | -19.04 | 119.24 | 0.3621 | 823.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -13.62 | 221.53 | -18.95 | 114.86 | 0.3493 | 593.0 | 519.2 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -13.94 | 221.07 | -19.40 | 115.23 | 0.3580 | 771.0 | 561.1 | |
| 0.00 | 3.98 | 0.00 | 2.11 | -13.32 | 220.96 | -19.51 | 113.52 | 0.3560 | 789.0 | 616.2 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -13.93 | 220.91 | -19.57 | 115.06 | 0.3604 | 625.0 | 510.8 | |
| 0.62 | 3.89 | 0.33 | 2.08 | -16.21 | 220.62 | -19.86 | 120.40 | 0.3798 | 825.4 | 627.1 | |
| 0.00 | 3.36 | 0.00 | 1.80 | -16.45 | 220.33 | -20.15 | 120.62 | 0.3856 | -160.0 | 87.6 | |
| 0.00 | 3.81 | 0.00 | 2.04 | -16.76 | 220.26 | -20.22 | 121.25 | 0.3887 | 784.0 | 593.7 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -16.99 | 220.06 | -20.41 | 121.57 | 0.3932 | 438.0 | 268.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -14.87 | 219.86 | -20.62 | 116.38 | 0.3815 | -728.0 | -547.5 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -9.41 | 219.91 | -20.56 | 102.09 | 0.3559 | 704.0 | 555.4 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -14.71 | 218.71 | -21.77 | 114.92 | 0.3972 | -179.0 | -167.5 | |
| 0.00 | 5.84 | 0.00 | 3.16 | -15.50 | 218.62 | -21.86 | 116.68 | 0.4032 | -956.0 | -708.6 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -16.45 | 218.48 | -22.00 | 118.68 | 0.4113 | -987.0 | -823.9 | |
| 6.73 | 12.48 | 3.64 | 6.74 | -14.98 | 218.54 | -21.93 | 115.40 | 0.4011 | -1052.9 | -486.0 | |
| 2.57 | 66.12 | 1.39 | 35.80 | -16.20 | 218.37 | -22.11 | 118.03 | 0.4111 | -1112.0 | -623.9 | |
| 0.35 | 1.77 | 0.19 | 0.96 | -15.89 | 218.34 | -22.14 | 117.31 | 0.4096 | -889.8 | -766.2 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -15.52 | 218.38 | -22.09 | 116.52 | 0.4067 | -925.0 | -738.3 | |
| 0.00 | 1.95 | 0.00 | 1.06 | -15.37 | 218.30 | -22.18 | 116.08 | 0.4070 | -922.0 | -736.0 | |
| 0.00 | 1.50 | 0.00 | 0.82 | -15.79 | 218.08 | -22.40 | 116.84 | 0.4126 | -699.0 | -538.4 | |
| 0.97 | 2.66 | 0.53 | 1.46 | -18.24 | 217.66 | -22.81 | 121.71 | 0.4347 | -1089.4 | -862.9 | |
| 0.00 | 3.19 | 0.00 | 1.74 | -16.21 | 217.93 | -22.55 | 117.65 | 0.4174 | -890.0 | -782.8 | |
| 0.00 | 1.95 | 0.00 | 1.07 | -17.86 | 217.44 | -23.04 | 120.71 | 0.4350 | -882.0 | -727.5 | |
| 0.00 | 1.86 | 0.00 | 1.02 | -16.35 | 217.57 | -22.91 | 117.63 | 0.4233 | -1005.0 | -814.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -16.56 | 217.44 | -23.03 | 117.97 | 0.4264 | -903.0 | -799.7 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -16.38 | 217.40 | -23.08 | 117.53 | 0.4259 | -675.0 | -512.2 | |
| 0.00 | 16.99 | 0.00 | 9.32 | -16.86 | 217.23 | -23.24 | 118.43 | 0.4313 | -1066.0 | -908.0 | |
| 0.00 | 1.77 | 0.00 | 0.97 | -17.11 | 217.16 | -23.31 | 118.88 | 0.4338 | -775.0 | -651.1 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -16.94 | 216.91 | -23.56 | 118.31 | 0.4362 | -749.0 | -607.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.29 | 216.69 | -23.79 | 120.89 | 0.4481 | -807.0 | -679.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.25 | 216.48 | -23.99 | 120.63 | 0.4506 | -759.0 | -651.1 | |
| 0.00 | 2.21 | 0.00 | 1.22 | -16.53 | 216.59 | -23.89 | 117.16 | 0.4381 | -863.0 | -694.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -16.64 | 216.23 | -24.25 | 117.09 | 0.4438 | -828.0 | -750.2 | |
| 0.00 | 2.57 | 0.00 | 1.42 | -16.88 | 216.13 | -24.35 | 117.51 | 0.4467 | -818.0 | -696.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -19.22 | 215.78 | -24.70 | 121.88 | 0.4666 | -720.0 | -627.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -14.68 | 216.24 | -24.23 | 112.89 | 0.4328 | -740.0 | -612.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -22.97 | 214.59 | -25.89 | 127.54 | 0.5091 | -646.0 | -559.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -16.74 | 215.60 | -24.88 | 116.78 | 0.4532 | -726.0 | -607.5 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -16.55 | 215.62 | -24.86 | 116.42 | 0.4518 | -699.0 | -594.0 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -20.74 | 214.81 | -25.67 | 123.84 | 0.4898 | -692.0 | -573.2 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -19.01 | 215.11 | -25.37 | 120.88 | 0.4739 | -654.0 | -475.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -19.53 | 214.95 | -25.53 | 121.73 | 0.4795 | -730.0 | -530.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -18.63 | 214.96 | -25.52 | 120.03 | 0.4734 | -768.0 | -654.0 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.48 | 214.60 | -25.87 | 121.35 | 0.4837 | -824.0 | -741.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -16.71 | 215.01 | -25.47 | 116.28 | 0.4612 | -734.0 | -686.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -21.49 | 214.12 | -26.35 | 124.59 | 0.5037 | -856.0 | -696.6 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -14.49 | 215.24 | -25.24 | 111.79 | 0.4464 | -695.0 | -518.0 | |
| 2.66 | 4.16 | 1.49 | 2.34 | -18.34 | 214.65 | -25.82 | 119.21 | 0.4757 | -890.8 | -699.1 | |
| 0.00 | 2.57 | 0.00 | 1.43 | -16.55 | 214.75 | -25.72 | 115.76 | 0.4638 | -609.0 | -692.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -14.54 | 215.02 | -25.45 | 111.76 | 0.4498 | -679.0 | -623.9 | |
| 0.00 | 2.48 | 0.00 | 1.39 | -16.82 | 214.68 | -25.80 | 116.25 | 0.4664 | -866.0 | -734.0 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -21.45 | 213.84 | -26.63 | 124.27 | 0.5069 | -743.0 | -587.8 | |
| 0.53 | 1.77 | 0.30 | 1.01 | -20.05 | 214.00 | -26.47 | 121.89 | 0.4952 | -869.5 | -722.2 | |
| 0.00 | 3.27 | 0.00 | 1.86 | -19.06 | 214.14 | -26.33 | 120.18 | 0.4870 | -1025.0 | -827.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.55 | 214.06 | -26.42 | 121.03 | 0.4913 | -794.0 | -673.6 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -19.98 | 213.87 | -26.60 | 121.66 | 0.4965 | -592.0 | -525.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -17.00 | 213.70 | -26.77 | 115.89 | 0.4808 | -672.0 | -502.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -21.15 | 212.59 | -27.88 | 122.70 | 0.5204 | -721.0 | -531.7 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -20.18 | 212.64 | -27.83 | 121.04 | 0.5135 | -772.0 | -622.1 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -21.17 | 212.37 | -28.11 | 122.56 | 0.5233 | -661.0 | -539.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -16.73 | 213.11 | -27.37 | 114.96 | 0.4876 | -642.0 | -532.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -18.72 | 212.67 | -27.81 | 118.41 | 0.5044 | -517.0 | -517.2 | |
| 0.00 | 2.39 | 0.00 | 1.38 | -18.31 | 212.02 | -28.46 | 117.23 | 0.5108 | -593.0 | -560.3 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -18.10 | 210.75 | -29.73 | 116.02 | 0.5266 | -782.0 | -635.3 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -19.95 | 209.67 | -30.80 | 118.57 | 0.5502 | -595.0 | -476.5 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -16.90 | 210.17 | -30.31 | 113.52 | 0.5287 | -742.0 | -662.8 | |
| 0.00 | 2.57 | 0.00 | 1.58 | -23.07 | 207.14 | -33.34 | 122.02 | 0.5987 | 377.0 | 242.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
