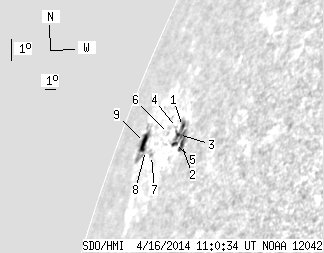

SDO HMI 2014-04-16 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.02 | 50.09 | 39.48 | 122.99 | 19.01 | 164.36 | -75.57 | 69.24 | 0.9793 | -162.7 | -31.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.86 | 24.34 | 3.76 | 48.82 | 19.23 | 166.97 | -72.96 | 68.57 | 0.9709 | -218.1 | -190.5 | |
| 3.63 | -1.00 | 7.02 | -1.00 | 18.59 | 167.57 | -72.36 | 69.10 | 0.9680 | -479.7 | 999999 | |
| 1.15 | -1.00 | 2.36 | -1.00 | 18.99 | 166.81 | -73.12 | 68.84 | 0.9713 | -31.4 | 999999 | |
| 0.00 | 1.59 | 0.00 | 3.40 | 19.27 | 166.25 | -73.68 | 68.66 | 0.9737 | 70.0 | 166.3 | |
| 1.68 | -1.00 | 3.45 | -1.00 | 18.71 | 166.68 | -73.25 | 69.15 | 0.9716 | -157.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 1.39 | 19.15 | 165.45 | -74.48 | 68.93 | 0.9764 | 288.0 | 268.7 | |
| 0.00 | 1.59 | 0.00 | 3.98 | 18.57 | 164.05 | -75.88 | 69.75 | 0.9808 | 378.0 | 334.9 | |
| 0.00 | 0.62 | 0.00 | 1.71 | 18.85 | 162.81 | -77.11 | 69.67 | 0.9846 | 375.0 | 386.7 | |
| 7.70 | 21.33 | 22.89 | 63.69 | 19.17 | 162.16 | -77.77 | 69.45 | 0.9866 | -147.7 | 13.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
