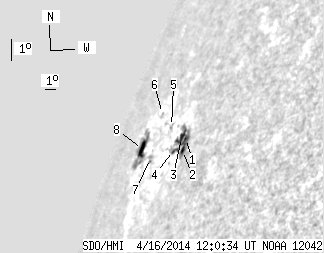

SDO HMI 2014-04-16 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.89 | 60.26 | 32.43 | 141.07 | 19.05 | 164.37 | -75.01 | 69.10 | 0.9775 | -190.5 | -34.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.24 | 25.13 | 2.33 | 48.05 | 19.00 | 167.55 | -71.83 | 68.59 | 0.9662 | -518.4 | -275.6 | |
| 1.86 | -1.00 | 3.47 | -1.00 | 18.60 | 167.65 | -71.73 | 68.97 | 0.9654 | -433.7 | 999999 | |
| 4.60 | -1.00 | 8.99 | -1.00 | 19.08 | 167.04 | -72.34 | 68.61 | 0.9683 | -239.5 | 999999 | |
| 0.00 | 4.60 | 0.00 | 9.18 | 18.70 | 166.59 | -72.79 | 69.07 | 0.9698 | -124.0 | -36.9 | |
| 0.00 | 1.86 | 0.00 | 4.08 | 19.60 | 165.30 | -74.08 | 68.40 | 0.9753 | 174.0 | 195.8 | |
| 0.00 | 0.27 | 0.00 | 0.68 | 20.21 | 163.31 | -76.07 | 68.13 | 0.9823 | 105.0 | 180.0 | |
| 0.00 | 3.89 | 0.00 | 9.42 | 18.70 | 163.87 | -75.51 | 69.56 | 0.9797 | 389.0 | 278.7 | |
| 6.19 | 24.51 | 17.64 | 69.66 | 19.16 | 162.10 | -77.28 | 69.38 | 0.9853 | -148.4 | 43.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
