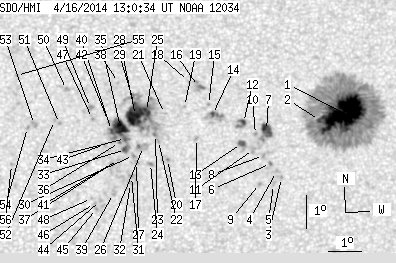

SDO HMI 2014-04-16 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.44 | 667.56 | 76.27 | 338.64 | 4.34 | 245.85 | 7.02 | 326.06 | 0.2144 | -237.6 | -182.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-16 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.59 | 420.66 | 43.11 | 214.38 | 4.53 | 247.97 | 9.14 | 317.51 | 0.2355 | -1458.8 | -412.6 | |
| 1.95 | -1.00 | 0.99 | -1.00 | 4.31 | 247.21 | 8.37 | 319.37 | 0.2240 | -1041.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 2.56 | 246.03 | 7.20 | 318.05 | 0.1882 | -895.0 | -707.1 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 2.74 | 245.88 | 7.05 | 319.29 | 0.1889 | -888.0 | -640.4 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 2.34 | 245.79 | 6.96 | 318.26 | 0.1826 | -814.0 | -672.2 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 2.98 | 245.70 | 6.87 | 320.84 | 0.1901 | -1005.0 | -845.0 | |
| 8.67 | 14.87 | 4.39 | 7.52 | 3.98 | 245.59 | 6.76 | 324.41 | 0.2026 | -1057.0 | -859.0 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 3.22 | 245.49 | 6.66 | 322.50 | 0.1911 | -1005.0 | -830.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 2.37 | 245.37 | 6.53 | 320.15 | 0.1782 | -874.0 | -765.0 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 3.86 | 245.25 | 6.42 | 325.42 | 0.1976 | -935.0 | -816.9 | |
| 0.00 | 3.36 | 0.00 | 1.70 | 3.40 | 245.19 | 6.36 | 324.33 | 0.1905 | -745.0 | -718.1 | |
| 1.86 | 5.84 | 0.94 | 2.95 | 4.22 | 244.89 | 6.06 | 327.95 | 0.1994 | -977.4 | -910.4 | |
| 2.30 | 6.11 | 1.16 | 3.08 | 3.58 | 244.83 | 6.00 | 326.45 | 0.1895 | -1025.9 | -781.7 | |
| 1.42 | 11.68 | 0.71 | 5.90 | 4.46 | 243.96 | 5.13 | 332.68 | 0.1950 | -969.4 | -627.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 4.76 | 243.84 | 5.01 | 333.92 | 0.1988 | -754.0 | -552.0 | |
| 0.00 | 7.79 | 0.00 | 3.94 | 5.31 | 243.54 | 4.71 | 336.41 | 0.2052 | -216.0 | -346.6 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 3.72 | 243.47 | 4.64 | 333.23 | 0.1799 | 72.0 | 28.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.46 | 243.24 | 4.41 | 338.05 | 0.2056 | -454.0 | -317.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 4.70 | 243.11 | 4.28 | 337.17 | 0.1926 | -184.0 | -3.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 3.08 | 242.59 | 3.76 | 336.28 | 0.1633 | -711.0 | -692.4 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 4.48 | 242.50 | 3.67 | 339.74 | 0.1853 | 522.0 | 394.9 | |
| 0.00 | 2.12 | 0.00 | 1.07 | 3.66 | 242.32 | 3.49 | 339.08 | 0.1708 | 771.0 | 600.6 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 3.84 | 242.23 | 3.40 | 339.94 | 0.1732 | 720.0 | 560.0 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 2.95 | 242.07 | 3.24 | 338.95 | 0.1580 | 923.0 | 738.7 | |
| 5.04 | 121.58 | 2.54 | 61.18 | 4.54 | 241.96 | 3.13 | 342.64 | 0.1832 | 745.6 | 568.0 | |
| 0.00 | 8.05 | 0.00 | 4.04 | 3.47 | 241.87 | 3.03 | 341.26 | 0.1652 | 75.0 | 184.4 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 2.98 | 241.65 | 2.82 | 341.55 | 0.1560 | 872.0 | 669.9 | |
| 24.78 | -25.00 | 12.47 | -25.00 | 4.41 | 241.63 | 2.80 | 344.20 | 0.1795 | 1101.6 | 999999 | |
| 1.95 | -25.00 | 0.98 | -25.00 | 4.75 | 241.60 | 2.77 | 344.85 | 0.1850 | 622.7 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 3.20 | 241.56 | 2.73 | 342.51 | 0.1590 | 923.0 | 754.0 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 2.56 | 241.50 | 2.67 | 341.62 | 0.1482 | 1115.0 | 931.8 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 2.34 | 241.47 | 2.64 | 341.36 | 0.1445 | 912.0 | 788.0 | |
| 2.04 | -25.00 | 1.02 | -25.00 | 3.38 | 241.32 | 2.49 | 344.28 | 0.1609 | 1126.9 | 999999 | |
| 1.42 | -25.00 | 0.71 | -25.00 | 3.71 | 241.32 | 2.49 | 344.82 | 0.1665 | 1109.4 | 999999 | |
| 12.83 | -25.00 | 6.45 | -25.00 | 4.05 | 241.17 | 2.34 | 346.18 | 0.1714 | 1261.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.59 | 241.14 | 2.31 | 345.70 | 0.1636 | 1106.0 | 1065.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.07 | 241.11 | 2.28 | 345.07 | 0.1548 | 959.0 | 803.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 5.42 | 241.12 | 2.29 | 348.14 | 0.1943 | 692.0 | 576.9 | |
| 0.00 | 3.19 | 0.00 | 1.59 | 2.04 | 240.96 | 2.12 | 344.21 | 0.1368 | 777.0 | 799.4 | |
| 1.59 | -25.00 | 0.80 | -25.00 | 3.96 | 240.90 | 2.07 | 347.61 | 0.1688 | 1062.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 2.95 | 240.90 | 2.07 | 346.21 | 0.1518 | 904.0 | 821.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.23 | 240.81 | 1.98 | 348.46 | 0.1731 | 715.0 | 610.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 3.53 | 240.69 | 1.86 | 348.34 | 0.1608 | 928.0 | 764.0 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 1.83 | 240.56 | 1.73 | 346.65 | 0.1315 | 971.0 | 814.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 1.58 | 240.44 | 1.61 | 347.14 | 0.1269 | 897.0 | 748.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 1.74 | 240.38 | 1.55 | 347.85 | 0.1293 | 885.0 | 675.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.32 | 240.33 | 1.50 | 351.30 | 0.1732 | 1035.0 | 923.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 1.89 | 240.29 | 1.46 | 348.77 | 0.1316 | 863.0 | 653.7 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 4.66 | 240.27 | 1.44 | 351.91 | 0.1788 | 1069.0 | 834.8 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 5.21 | 239.55 | 0.72 | 356.16 | 0.1869 | 966.0 | 712.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 4.17 | 239.33 | 0.50 | 357.01 | 0.1688 | 1086.0 | 905.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 4.26 | 239.18 | 0.35 | 357.92 | 0.1703 | 920.0 | 703.1 | |
| 0.00 | 3.89 | 0.00 | 1.96 | 4.14 | 238.58 | -0.25 | 1.49 | 0.1681 | 1073.0 | 831.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.05 | 238.37 | -0.46 | 2.78 | 0.1667 | 886.0 | 755.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.64 | 238.04 | -0.79 | 4.08 | 0.1944 | 768.0 | 638.2 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 2.92 | 237.89 | -0.94 | 6.42 | 0.1479 | 929.0 | 707.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
