SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.48 | 306.04 | 31.78 | 200.32 | 11.99 | 275.35 | 37.07 | 295.54 | 0.6558 | -983.0 | -320.8 | |
|
previous
or next observation for the same group /

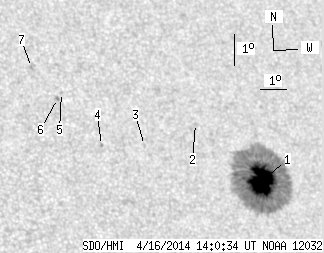

back to the solar disc SDO HMI 2014-04-16 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.48 | 298.96 | 31.78 | 195.96 | 11.95 | 275.48 | 37.20 | 295.39 | 0.6571 | -1268.6 | -342.6 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 13.62 | 273.24 | 34.96 | 299.16 | 0.6400 | -600.0 | -507.1 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 12.82 | 271.21 | 32.92 | 299.44 | 0.6108 | 604.0 | 408.2 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 12.73 | 269.62 | 31.34 | 300.53 | 0.5912 | 841.0 | 700.9 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 14.36 | 268.42 | 30.14 | 303.92 | 0.5883 | 642.0 | 548.0 | |
| 0.00 | 1.77 | 0.00 | 1.08 | 14.16 | 268.24 | 29.96 | 303.77 | 0.5848 | 885.0 | 714.8 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 15.11 | 267.46 | 29.18 | 305.86 | 0.5829 | 807.0 | 691.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
